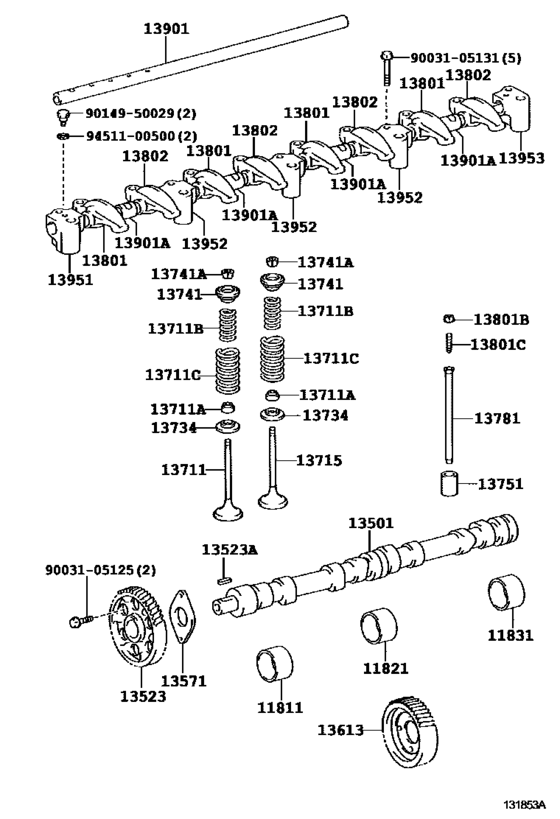

Camshaft & Valve ([08.2011 - ] (1108- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 2009 - 2018
- Sales region
- General
- Frame
- WU342
- ENGINE
- W04D
- DESTINATION
- IDN
- DECK
- T3
- From
- 12.2009
- Loading Capacity
- 75T
- Driver's Position
- RHD
- Fuel Induction
- DCRTR
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11811
|
11811
11811-78040 Bearing, Camshaft, No.1[12.2009 - 07.2011] W04D..WU302,342..DCRTP,DCRTR |
11811-78040 |
US $12.23 |
||
| replacement | |||||
|
11811
|
11811
11811-E0030 Bearing, Camshaft, No.1[12.2009 - 07.2011] W04D..WU302,342..DCRTP,DCRTR |
11811-E0030 |
US $19.66 |
||
|
11811
|
11811
11811-E0030 Bearing, Camshaft, No.1[07.2011 -] W04D..WU302,342 |
11811-E0030 |
US $19.66 |
||
|
11821
|
11821
11821-78020 Bearing, Camshaft, No.2[12.2009 - 07.2011] W04D..WU302,342..DCRTP,DCRTR |
11821-78020 |
US $12.52 |
||
| replacement | |||||
|
11821
|
11821
11821-E0020 Bearing, Camshaft, No.2[12.2009 - 07.2011] W04D..WU302,342..DCRTP,DCRTR |
11821-E0020 |
US $19.66 |
||
|
11821
|
11821
11821-E0020 Bearing, Camshaft, No.2[07.2011 -] W04D..WU302,342 |
11821-E0020 |
US $19.66 |
||
|
11831
|
11831
11831-78020 Bearing, Camshaft, No.3[12.2009 - 07.2011] W04D..WU302,342..DCRTP,DCRTR |
11831-78020 |
US $12.52 |
||
| replacement | |||||
|
11831
|
11831
11831-E0020 Bearing, Camshaft, No.3[12.2009 - 07.2011] W04D..WU302,342..DCRTP,DCRTR |
11831-E0020 |
US $19.66 |
||
|
11831
|
11831
11831-E0020 Bearing, Camshaft, No.3[07.2011 -] W04D..WU302,342 |
11831-E0020 |
US $19.66 |
||
|
13501
|
13501
13501-E0540
Camshaft Sub-Assy
[08.2011 - 12.2016] W04D..WU302,342 |
13501-E0540 |
— | ||
|
13501
|
13501
13501-EW020
Camshaft Sub-Assy
[12.2016 -] W04D..WU302,342 |
13501-EW020 |
— | ||
|
13501
|
13501
13510-78130
Camshaft Sub-Assy
[12.2009 - 08.2011] W04D..WU302,342..DCRTP,DCRTR |
13510-78130 |
— | ||
| replacements | |||||
|
13501
|
13501
13501-E0540
Camshaft Sub-Assy
[12.2009 - 08.2011] W04D..WU302,342..DCRTP,DCRTR |
13501-E0540 |
— | ||
|
13501
|
13501
13523-E0080
Gear Or Sprocket, Camshaft Timing
[12.2009 - 08.2011] W04D..WU302,342..DCRTP,DCRTR |
13523-E0080 |
— | ||
|
13501
|
13501
13571-E0020
Plate, Camshaft Thrust
[12.2009 - 08.2011] W04D..WU302,342..DCRTP,DCRTR |
13571-E0020 |
— | ||
|
13501
|
13501
SM172-00720 Key, Woodruff(For Timing Gear)[12.2009 - 08.2011] W04D..WU302,342..DCRTP,DCRTR |
SM172-00720 |
US $2.62 |
||
|
13523
|
13523
13523-E0080
Gear Or Sprocket, Camshaft Timing
[08.2011 - 12.2016] W04D..WU302,342 |
13523-E0080 |
— | ||
|
13523
|
13523
13523-EW010
Gear Or Sprocket, Camshaft Timing
[12.2016 -] W04D..WU302,342 |
13523-EW010 |
— | ||
|
13523A
|
13523A
SM172-00720 Key, Woodruff(For Timing Gear)[08.2011 -] W04D..WU302,342 |
SM172-00720 |
US $2.62 |
||
|
13571
|
13571
13571-E0020
Plate, Camshaft Thrust
[08.2011 -] W04D..WU302,342 |
13571-E0020 |
— | ||
|
13613
|
13613
13613-E0150 Gear, Injection Pump Drive[03.2015 -] W04D..WU302,342 |
13613-E0150 |
US $160.16 |
||
|
13711
|
13711
13711-78010
Valve, Intake
[12.2009 -] W04D..WU302,342 |
13711-78010 |
— | ||
| replacement | |||||
|
13711
|
13711
S1371-11443 Valve, Intake[12.2009 -] W04D..WU302,342 |
S1371-11443 |
from US $19.70 |
||
|
13711A
|
13711A
90038-12006 Seal Or Ring, O(For Valve Stem Oil)O(FOR VALVE STEM OIL) [12.2009 -] W04D..WU302,342 |
90038-12006 |
from US $3.32 |
||
|
13711B
|
13711B
13935-78020
Spring, Compression(For Inner)
[12.2009 -] W04D..WU302,342 |
13935-78020 |
— | ||
|
13711C
|
13711C
13935-78010
Spring, Compression(For Outer)
[12.2009 -] W04D..WU302,342 |
13935-78010 |
— | ||
|
13715
|
13715
13715-78010
Valve, Exhaust
[12.2009 -] W04D..WU302,342 |
13715-78010 |
— | ||
| replacement | |||||
|
13715
|
13715
S1371-51251 Valve, Exhaust[12.2009 -] W04D..WU302,342 |
S1371-51251 |
from US $29.07 |
||
|
13734
|
13734
13734-78010 Seat, Valve Spring[12.2009 -] W04D..WU302,342 |
13734-78010 |
US $5.24 |
||
| replacement | |||||
|
13734
|
13734
S1373-41140 Seat, Valve Spring[12.2009 -] W04D..WU302,342 |
S1373-41140 |
US $3.64 |
||
|
13741
|
13741
13741-78030 Retainer, Valve SpringVALVE SPRING [12.2009 -] W04D..WU302,342 |
13741-78030 |
US $8.74 |
||
| replacement | |||||
|
13741
|
13741
S1373-51440 Retainer, Valve Spring[12.2009 -] W04D..WU302,342 |
S1373-51440 |
US $7.98 |
||
|
13741A
|
13741A
90038-13005 Lock, Valve Spring Retainer[12.2009 -] W04D..WU302,342 |
90038-13005 |
US $1.31 |
||
|
13751
|
13751
13751-78010 Lifter, Valve[12.2009 - 07.2011] W04D..WU302,342..DCRTP,DCRTR |
13751-78010 |
US $32.76 |
||
| replacement | |||||
|
13751
|
13751
13751-E0040 Lifter, Valve[12.2009 - 07.2011] W04D..WU302,342..DCRTP,DCRTR |
13751-E0040 |
from US $11.54 |
||
|
13751
|
13751
13751-E0040 Lifter, Valve[07.2011 -] W04D..WU302,342 |
13751-E0040 |
from US $11.54 |
||
|
13781
|
13781
13783-78020 Rod, Valve PushVALVE PUSH [12.2009 -] W04D..WU302,342 |
13783-78020 |
US $7.57 |
||
| replacement | |||||
|
13781
|
13781
S1378-11350 Rod, Valve Push[12.2009 -] W04D..WU302,342 |
S1378-11350 |
US $9.46 |
||
|
13801
|
13801
13811-78011 Arm Sub-Assy, Valve Rocker, No.1[12.2009 -] W04D..WU302,342 |
13811-78011 |
US $22.42 |
||
| replacement | |||||
|
13801
|
13801
13811-E0090 Arm Sub-Assy, Valve Rocker, No.1[12.2009 -] W04D..WU302,342 |
13811-E0090 |
US $18.64 |
||
|
13801B
|
13801B
90031-78090 Nut, Hexagon(For Valve Adjusting)[12.2009 -] W04D..WU302,342 |
90031-78090 |
US $1.40 |
||
|
13801C
|
13801C
13788-78011 Screw, Valve Adjusting[12.2009 -] W04D..WU302,342 |
13788-78011 |
US $7.43 |
||
| replacement | |||||
|
13801C
|
13801C
S1378-71161 Screw, Valve Adjusting[12.2009 -] W04D..WU302,342 |
S1378-71161 |
US $7.86 |
||
|
13802
|
13802
13812-78010 Arm Sub-Assy, Valve Rocker, No.2[12.2009 -] W04D..WU302,342 |
13812-78010 |
US $22.42 |
||
| replacement | |||||
|
13802
|
13802
13811-E0100 Arm Sub-Assy, Valve Rocker, No.2[12.2009 -] W04D..WU302,342 |
13811-E0100 |
US $18.64 |
||
|
13901
|
13901
13901-78010 Shaft Sub-Assy, Valve Rocker, No.1[12.2009 -] W04D..WU302,342 |
13901-78010 |
US $90.27 |
||
| replacement | |||||
|
13901
|
13901
S1390-11190 Shaft Sub-Assy, Valve Rocker, No.1[12.2009 -] W04D..WU302,342 |
S1390-11190 |
from US $67.65 |
||
|
13901A
|
13901A
90387-19001 Bush(For Valve Rocker Shaft)[12.2009 -] W04D..WU302,342 |
90387-19001 |
US $1.75 |
||
|
13951
|
13951
13951-78010 Support, Valve Rocker, No.1[12.2009 -] W04D..WU302,342 |
13951-78010 |
US $22.28 |
||
| replacement | |||||
|
13951
|
13951
13951-E0060 Support, Valve Rocker, No.1[12.2009 -] W04D..WU302,342 |
13951-E0060 |
US $62.61 |
||
|
13952
|
13952
13952-78010 Support, Valve Rocker, No.2[12.2009 -] W04D..WU302,342 |
13952-78010 |
US $56.78 |
||
| replacement | |||||
|
13952
|
13952
13951-E0070 Support, Valve Rocker, No.2[12.2009 -] W04D..WU302,342 |
13951-E0070 |
US $72.07 |
||
|
13953
|
13953
13953-78010 Support, Valve Rocker, No.3[12.2009 -] W04D..WU302,342 |
13953-78010 |
US $49.50 |
||
| replacement | |||||
|
13953
|
13953
13951-E0080 Support, Valve Rocker, No.3[12.2009 -] W04D..WU302,342 |
13951-E0080 |
US $62.61 |
||
|
9003105125
|
9003105125
90031-05125 New Genuine Part |
90031-05125 |
US $3.40 |
||
|
9003105131
|
9003105131
90031-05131 BOLT FLANGE |
90031-05131 |
from US $1.07 |
||
|
9014950029
|
9014950029
90149-50029 New Genuine Part |
90149-50029 |
US $0.87 |
||
|
9451100500
|
9451100500
94511-00500 Washer, Cover Set, No.2 |
94511-00500 |
from US $0.24 |
||
