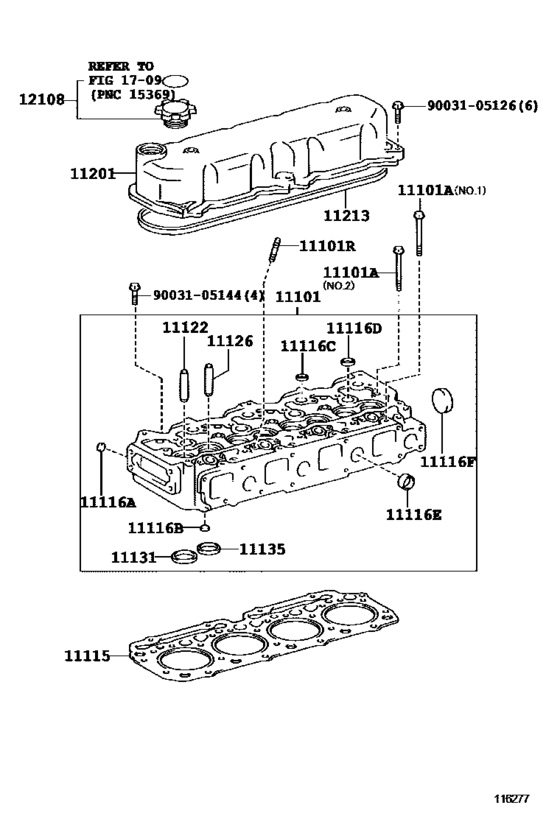

Cylinder Head ([12.2009 - ] (0912- )W04D..WU302,342..DCRTP,DCRTR) Diagram Toyota DYNA/ TOYOACE
- Year
- 2009 - 2018
- Sales region
- General
- Frame
- WU342
- ENGINE
- W04D
- DESTINATION
- IDN
- DECK
- T3
- From
- 12.2009
- Loading Capacity
- 75T
- Driver's Position
- RHD
- Fuel Induction
- DCRTR
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-78200
Head Sub-Assy, Cylinder
[12.2009 -] W04D..WU302,342 |
11101-78200 |
— | ||
|
11101A
|
11101A
90031-01199 Bolt(For Cylinder Head Set)[12.2009 -] W04D..WU302,342 NO.1 |
90031-01199 |
US $3.86 |
||
|
11101A
|
11101A
90031-01200 Bolt(For Rocker Support Set)[12.2009 -] W04D..WU302,342 NO.2 |
90031-01200 |
from US $4.39 |
||
|
11101R
|
11101R
90031-16083 Bolt, Stud(For Fuel Pipe)STUD(FOR FUEL PIPE) [12.2009 -] W04D..WU302,342 |
90031-16083 |
US $1.60 |
||
|
11115
|
11115
11115-78080 Gasket, Cylinder HeadCYLINDER HEAD [12.2009 - 03.2017] W04D..WU302,342..DCRTP,DCRTR |
11115-78080 |
US $147.06 |
||
| replacement | |||||
|
11115
|
11115
11115-E0030
Gasket, Cylinder Head
[12.2009 - 03.2017] W04D..WU302,342..DCRTP,DCRTR |
11115-E0030 |
— | ||
|
11115
|
11115
11115-78081
Gasket, Cylinder Head
[04.2017 -] W04D..WU302,342 |
11115-78081 |
— | ||
|
11116A
|
11116A
90331-14005 Plug, Tight, No.1[12.2009 -] W04D..WU302,342 |
90331-14005 |
US $1.31 |
||
|
11116B
|
11116B
90331-22001 Plug, Tight, No.2[12.2009 -] W04D..WU302,342 |
90331-22001 |
US $1.46 |
||
|
11116C
|
11116C
90331-24001 Plug, Tight, No.3[12.2009 -] W04D..WU302,342 |
90331-24001 |
US $6.26 |
||
|
11116D
|
11116D
90331-26001 Plug, Tight, No.4[12.2009 -] W04D..WU302,342 |
90331-26001 |
US $2.77 |
||
|
11116E
|
11116E
90331-30001 Plug, Tight, No.4[12.2009 -] W04D..WU302,342 |
90331-30001 |
US $6.70 |
||
|
11116F
|
11116F
90331-50002 Plug, Tight, No.6[12.2009 -] W04D..WU302,342 |
90331-50002 |
US $7.28 |
||
|
11122
|
11122
11122-89102 Bush, Intake Valve GuideINTAKE VALVE GUIDE [12.2009 -] W04D..WU302,342..(DCRTP,DCRTR)..IV3..T3 STD |
11122-89102 |
US $10.05 |
||
| replacement | |||||
|
11122
|
11122
S1112-21250 Bush, Intake Valve Guide[12.2009 -] W04D..WU302,342..(DCRTP,DCRTR)..IV3..T3 STD |
S1112-21250 |
from US $6.84 |
||
|
11126
|
11126
S1112-21250 Bush, Intake Valve Guide[12.2009 -] W04D..WU302,342 STD |
S1112-21250 |
from US $6.84 |
||
|
11131
|
11131
11131-78050 Seat, Intake ValveINTAKE VALVE [12.2009 - 07.2011] W04D..WU302,342..DCRTP,DCRTR STD |
11131-78050 |
US $24.90 |
||
| replacement | |||||
|
11131
|
11131
S1113-11490 Seat, Intake Valve[12.2009 - 07.2011] W04D..WU302,342..DCRTP,DCRTR STD |
S1113-11490 |
US $20.68 |
||
|
11131
|
11131
S1113-11490 Seat, Intake Valve[07.2011 -] W04D..WU302,342 STD |
S1113-11490 |
US $20.68 |
||
|
11135
|
11135
11135-78060
Seat, Exhaust Valve
[12.2009 - 07.2011] W04D..WU302,342..DCRTP,DCRTR STD |
11135-78060 |
— | ||
| replacement | |||||
|
11135
|
11135
11135-E0070 Seat, Exhaust Valve[12.2009 - 07.2011] W04D..WU302,342..DCRTP,DCRTR STD |
11135-E0070 |
US $34.94 |
||
|
11135
|
11135
11135-E0070 Seat, Exhaust Valve[07.2011 -] W04D..WU302,342 STD |
11135-E0070 |
US $34.94 |
||
|
11201
|
11201
11211-78100
Cover Sub-Assy, Cylinder Head
[12.2009 -] W04D..WU302,342 |
11211-78100 |
— | ||
|
11213
|
11213
11213-78050
Gasket, Cylinder Head Cover
[12.2009 -] W04D..WU302,342 |
11213-78050 |
— | ||
|
12108
|
12108
12180-78010 Cap Sub-Assy, Oil Filler[12.2009 - 04.2014] W04D..WU302,342..DCRTP,DCRTR |
12180-78010 |
US $11.65 |
||
| replacement | |||||
|
12108
|
12108
12180-E0010 Cap Sub-Assy, Oil Filler[12.2009 - 04.2014] W04D..WU302,342..DCRTP,DCRTR |
12180-E0010 |
from US $13.34 |
||
|
12108
|
12108
12180-EW010
Cap Sub-Assy, Oil Filler
[05.2014 -] W04D..WU302,342 |
12180-EW010 |
— | ||
|
9003105126
|
9003105126
90031-05126 New Genuine Part |
90031-05126 |
US $4.30 |
||
|
9003105144
|
9003105144
90031-05144 Bolt(For Cylinder Head Set) |
90031-05144 |
US $3.58 |
||
