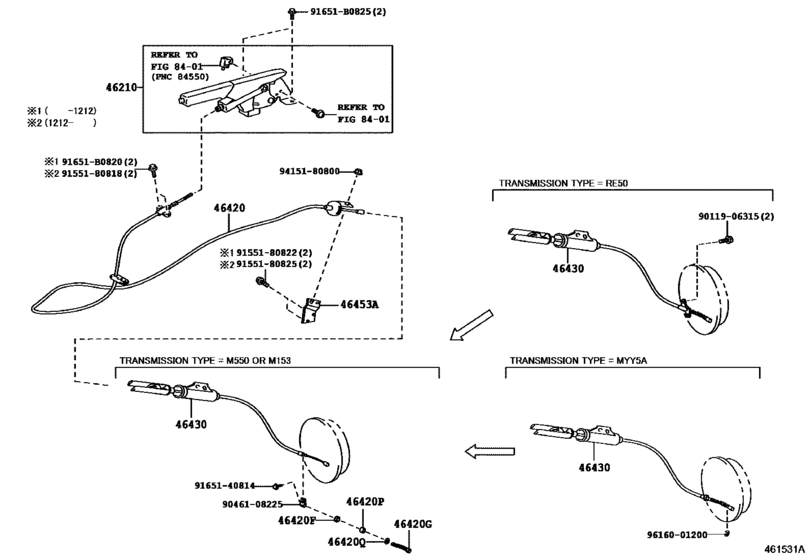

Parking Brake & Cable ([12.2009 - ] (0912- )DCRTP,DCRTR) Diagram Toyota DYNA/ TOYOACE
- Year
- 2009 - 2018
- Sales region
- General
- Frame
- WU342
- ENGINE
- W04D
- DESTINATION
- IDN
- DECK
- T3
- From
- 12.2009
- Loading Capacity
- 75T
- Driver's Position
- RHD
- Fuel Induction
- DCRTR
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46210
|
46210
46210-0W060-B0
Lever Assy, Parking Brake
[12.2009 - 06.2017] WU302,342..DCRTP,DCRTR DK.CHARCOAL,TRIM1# |
46210-0W060-B0 |
— | ||
|
46420
|
46420
46420-0W070
Cable Assy, Parking Brake, No.2
[12.2009 -] WU302,342..DCRTP,DCRTR |
46420-0W070 |
— | ||
|
46420F
|
46420F
90303-10001 Seal, Dust(For Parking Brake Cable)[12.2009 - 06.2017] WU342..DCRTR |
90303-10001 |
US $2.15 |
||
|
46420G
|
46420G
90501-14003 Spring(For Parking Cable Inner Wire Set)[12.2009 - 06.2017] WU342..DCRTR |
90501-14003 |
US $3.05 |
||
|
46420P
|
46420P
90560-08002 Spacer(For Parking Brake Handle)[12.2009 - 06.2017] WU342..DCRTR |
90560-08002 |
US $3.23 |
||
|
46420Q
|
46420Q
96160-00700 Ring, E(For Chain Tensioner Slipper)[12.2009 - 06.2017] WU342..DCRTR |
96160-00700 |
US $3.58 |
||
|
46430
|
46430
46430-0W070
Cable Assy, Parking Brake, No.3
[12.2009 - 06.2017] WU342..DCRTR |
46430-0W070 |
— | ||
|
46453A
|
46453A
46453-0W020
Bracket, Cable Support, No.3
[12.2009 -] WU302,342..DCRTP,DCRTR |
46453-0W020 |
— | ||
|
91651B0820
|
91651B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.99 |
||
| replacement | |||||
|
91651B0820
|
91651B0820
90080-11347 New Genuine Part |
90080-11347 |
US $3.11 |
||
|
91651B0825
|
91651B0825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.84 |
||
|
9011906315
|
9011906315
90119-06315 BOLT |
90119-06315 |
US $1.25 |
||
|
9046108225
|
9046108225
90461-08225 Clamp, No.3(For Parking Brake Cable) |
90461-08225 |
US $2.51 |
||
|
9155180818
|
9155180818
91551-80818 Bolt, Union(For Clutch Master Cylinder) |
91551-80818 |
US $1.43 |
||
|
9155180822
|
9155180822
91551-80822 Bolt, Hexagon(For Steering Column Bracket) |
91551-80822 |
US $1.43 |
||
|
9155180825
|
9155180825
91551-80825 Bolt(For Cylinder Head Set Sub) |
91551-80825 |
from US $0.80 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.23 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.80 |
||
|
9616001200
|
9616001200
96160-01200 Ring, E(For Clutch Release Cable) |
96160-01200 |
from US $1.54 |
||
