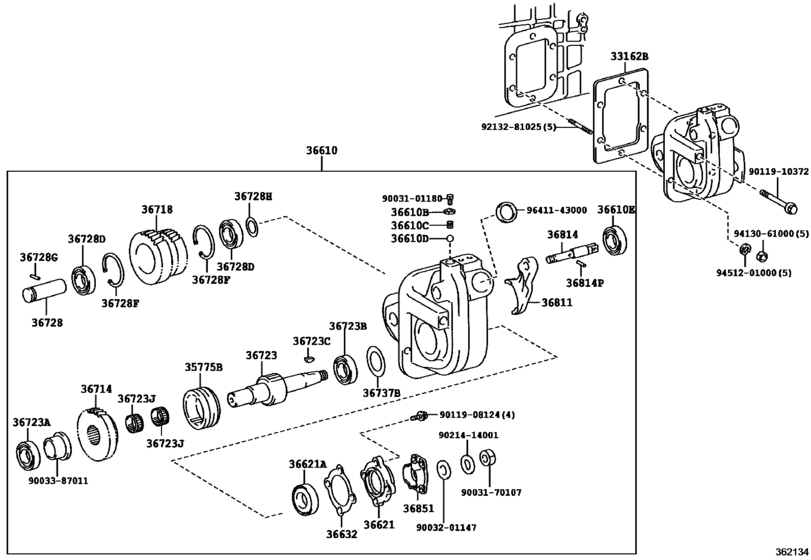

Power Take-Off Case & Gear ([12.2016 - ] MANUAL LEVER TYPE 25KG (1612- )DCRTR) Diagram Toyota DYNA/ TOYOACE
- Year
- 2009 - 2018
- Sales region
- General
- Frame
- WU342
- ENGINE
- W04D
- DESTINATION
- IDN
- DECK
- T3
- From
- 12.2009
- Loading Capacity
- 75T
- Driver's Position
- RHD
- Fuel Induction
- DCRTR
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33162B
|
33162B
33162-37050 Gasket, Power Take-Off Cover[12.2016 -] WU342..DCRTR |
33162-37050 |
US $6.45 |
||
|
35775B
|
35775B
35775-37030 Sleeve, Output Shaft[12.2016 -] WU342..DCRTR |
35775-37030 |
US $42.22 |
||
|
36610
|
36610
36610-37520
Power Take-Off Assy
[12.2016 -] WU342..DCRTR |
36610-37520 |
— | ||
|
36610B
|
36610B
90430-12001
Gasket, Seat (For Power Take-Off)
[12.2016 -] WU342..DCRTR T=0.5 |
90430-12001 |
— | ||
|
36610B
|
36610B
90430-12004 Gasket, Seat (For Power Take-Off)[12.2016 -] WU342..DCRTR T=2 |
90430-12004 |
US $0.61 |
||
|
36610B
|
36610B
90430-12006 Gasket, Seat (For Power Take-Off)[12.2016 -] WU342..DCRTR T=1 |
90430-12006 |
US $1.02 |
||
|
36610C
|
36610C
90035-01053 Spring, Gear Shift Fork Lock Ball (For Power Take-Off)[12.2016 -] WU342..DCRTR |
90035-01053 |
US $1.02 |
||
|
36610D
|
36610D
90360-10001
Ball, Gear Shift Fork Lock (For Power Take-Off)
[12.2016 -] WU342..DCRTR |
90360-10001 |
— | ||
|
36610E
|
36610E
90311-20010 Seal, Oil (For Power Take-Off)[12.2016 -] WU342..DCRTR |
90311-20010 |
US $2.61 |
||
|
36621
|
36621
36621-37080
Retainer, Power Take-Off Bearing
[12.2016 -] WU342..DCRTR |
36621-37080 |
— | ||
|
36621A
|
36621A
90311-25110 Seal, Oil (For Power Take-Off Bearing Retainer)[12.2016 -] WU342..DCRTR |
90311-25110 |
from US $5.20 |
||
|
36632
|
36632
36632-37030 Gasket, Power Take-Off Bearing Retainer[12.2016 -] WU342..DCRTR |
36632-37030 |
US $3.06 |
||
|
36714
|
36714
36714-37240
Gear, Power Take-Off Output
[12.2016 -] WU342..DCRTR |
36714-37240 |
— | ||
|
36718
|
36718
36718-37160
Gear, Power Take-Off Idler
[12.2016 -] WU342..DCRTR |
36718-37160 |
— | ||
|
36723
|
36723
36723-37140
Shaft, Power Take-Off Output, No.1
[12.2016 -] WU342..DCRTR |
36723-37140 |
— | ||
|
36723A
|
36723A
90366-22001 Bearing(For Power Take-Off Idler Gear Front)[12.2016 -] WU342..DCRTR |
90366-22001 |
US $20.44 |
||
|
36723B
|
36723B
90366-22001 Bearing(For Power Take-Off Idler Gear Front)[12.2016 -] WU342..DCRTR T=16.25 |
90366-22001 |
US $20.44 |
||
|
36723C
|
36723C
90280-07011 Key, Woodruff (For Power Take-Off Output Shaft)[12.2016 -] WU342..DCRTR |
90280-07011 |
US $1.31 |
||
|
36723J
|
36723J
90364-28020 Bearing (For Power Take-Off Output Shaft)[12.2016 -] WU342..DCRTR |
90364-28020 |
US $11.36 |
||
|
36728
|
36728
36728-37060
Shaft, Power Take-Off Idler
[12.2016 -] WU342..DCRTR |
36728-37060 |
— | ||
|
36728D
|
36728D
90366-25011 Bearing (For Output Shaft Rear)[12.2016 -] WU342..DCRTR |
90366-25011 |
US $25.92 |
||
|
36728F
|
36728F
90521-56108 Ring, Hole Snap(For Power Take-Off Idler Gear)[12.2016 -] WU342..DCRTR |
90521-56108 |
US $9.76 |
||
|
36728G
|
36728G
90254-04002 Plate Or Pin, Lock (For Power Take-Off)[12.2016 -] WU342..DCRTR |
90254-04002 |
US $0.96 |
||
|
36728H
|
36728H
90564-25001 Shim (For Power Take-Off Idler Shaft)[12.2016 -] WU342..DCRTR T=0.05 |
90564-25001 |
US $0.87 |
||
|
36728H
|
36728H
90564-25002 Shim (For Power Take-Off Idler Shaft)[12.2016 -] WU342..DCRTR T=0.1 |
90564-25002 |
US $1.31 |
||
|
36728H
|
36728H
90564-25003 Shim (For Power Take-Off Idler Shaft)[12.2016 -] WU342..DCRTR T=0.2 |
90564-25003 |
US $1.31 |
||
|
36728H
|
36728H
90564-25004 Shim (For Power Take-Off Idler Shaft)[12.2016 -] WU342..DCRTR T=0.5 |
90564-25004 |
US $1.31 |
||
|
36737B
|
36737B
90564-42001 Shim (For Power Take-Off Idler Shaft)[12.2016 -] WU342..DCRTR T=0.02-0.08 |
90564-42001 |
US $1.02 |
||
|
36737B
|
36737B
90564-42002 Shim (For Power Take-Off Idler Shaft)[12.2016 -] WU342..DCRTR T=0.07-0.13 |
90564-42002 |
US $1.02 |
||
|
36737B
|
36737B
90564-42003 Shim (For Power Take-Off Idler Shaft)[12.2016 -] WU342..DCRTR T=0.17-0.23 |
90564-42003 |
US $1.02 |
||
|
36737B
|
36737B
90564-42004 Shim (For Power Take-Off Idler Shaft)[12.2016 -] WU342..DCRTR T=0.47-0.53 |
90564-42004 |
US $1.02 |
||
|
36811
|
36811
36811-37030
Fork, Powr Take-Off Shift, No.1
[12.2016 -] WU342..DCRTR |
36811-37030 |
— | ||
|
36814
|
36814
36814-37090
Shaft, Powr Take-Off Fork, No.1
[12.2016 -] WU342..DCRTR |
36814-37090 |
— | ||
|
36814P
|
36814P
90254-06006
Pin (For Power Take-Off Shift Shaft)
[12.2016 -] WU342..DCRTR |
90254-06006 |
— | ||
|
36851
|
36851
36851-37010 Retainer, Power Take-Off Joint[12.2016 -] WU342..DCRTR |
36851-37010 |
US $16.45 |
||
|
9003101180
|
9003101180
90031-01180 Bolt, Lock Ball (For Power Take-Off) |
90031-01180 |
US $1.31 |
||
|
9003170107
|
9003170107
90031-70107 New Genuine Part |
90031-70107 |
US $1.31 |
||
|
9003201147
|
9003201147
90032-01147 New Genuine Part |
90032-01147 |
US $1.31 |
||
|
9003387011
|
9003387011
90033-87011 New Genuine Part |
90033-87011 |
US $7.28 |
||
|
9011908124
|
9011908124
90119-08124 New Genuine Part |
90119-08124 |
US $1.60 |
||
|
9011910372
|
9011910372
90119-10372 New Genuine Part |
90119-10372 |
US $2.04 |
||
|
9021414001
|
9021414001
90214-14001 Washer, Lock (For Center Bearing Shaft) |
90214-14001 |
US $7.13 |
||
|
9213281025
|
9213281025
92132-81025 New Genuine Part |
92132-81025 |
US $2.15 |
||
|
9413061000
|
9413061000
94130-61000 Nut(For Clutch Pedal Stopper) |
94130-61000 |
from US $0.76 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.80 |
||
|
9641143000
|
9641143000
96411-43000 Plug, Tight, No.1 |
96411-43000 |
from US $3.67 |
