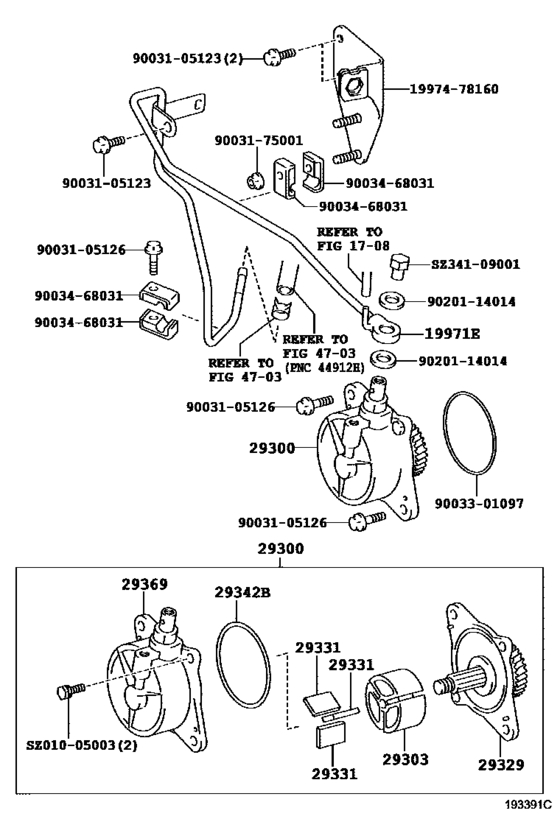

Vacuum Pump ([12.2009 - 07.2014] (0912-1407)W04D..WU302,342..DCRTP,DCRTR) Diagram Toyota DYNA/ TOYOACE
- Year
- 2009 - 2018
- Sales region
- General
- Frame
- WU342
- ENGINE
- W04D
- DESTINATION
- IDN
- DECK
- T3
- From
- 12.2009
- Loading Capacity
- 75T
- Driver's Position
- RHD
- Fuel Induction
- DCRTR
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19971E
|
19971E
87207-37C91
Pipe, Vacuum
[12.2009 - 09.2016] W04D..WU302,342..DCRTP,DCRTR |
87207-37C91 |
— | ||
|
19971E
|
19971E
87207-EW010
Pipe, Vacuum
[12.2016 -] W04D..WU302,342..IV3..T3 |
87207-EW010 |
— | ||
|
29300
|
29300
29300-78080
Pump Assy, Vacuum
[12.2009 - 07.2014] W04D..WU302,342..DCRTP,DCRTR |
29300-78080 |
— | ||
| replacements | |||||
|
29300
|
29300
29603-E0390
Pipe, Vacuum Pump Oil Outlet
[12.2009 - 07.2014] W04D..WU302,342..DCRTP,DCRTR |
29603-E0390 |
— | ||
|
29300
|
29300
29300-E0120
Pump Assy, Vacuum
[12.2009 - 07.2014] W04D..WU302,342..DCRTP,DCRTR |
29300-E0120 |
— | ||
|
29300
|
29300
11340-EW010
Cover Sub-Assy, Timing Chain Or Belt
[12.2009 - 07.2014] W04D..WU302,342..DCRTP,DCRTR |
11340-EW010 |
— | ||
|
29300
|
29300
87207-E0230
Pipe Sub-Assy, Oil(For Vacuum Pump)
[12.2009 - 07.2014] W04D..WU302,342..DCRTP,DCRTR |
87207-E0230 |
— | ||
|
29300
|
29300
SH552-10812 Bolt(For Turbocharger Stay)[12.2009 - 07.2014] W04D..WU302,342..DCRTP,DCRTR |
SH552-10812 |
US $2.48 |
||
|
29300
|
29300
SN732-00132 ORING[12.2009 - 07.2014] W04D..WU302,342..DCRTP,DCRTR |
SN732-00132 |
US $3.06 |
||
|
29300
|
29300
SZ466-15007
New Genuine Part
[12.2009 - 07.2014] W04D..WU302,342..DCRTP,DCRTR |
SZ466-15007 |
— | ||
|
29300
|
29300
29300-E0120
Pump Assy, Vacuum
[07.2014 - 09.2016] W04D..WU302,342 |
29300-E0120 |
— | ||
|
29300
|
29300
29300-E0150
Pump Assy, Vacuum
[12.2016 -] W04D..WU342..DCRTR..IV3..T3 |
29300-E0150 |
— | ||
|
29303
|
29303
29303-EV010
Rotor Sub-Assy, Vacuum Pump
[12.2009 - 07.2014] W04D..WU302,342..DCRTP,DCRTR |
29303-EV010 |
— | ||
|
29329
|
29329
29329-EV010
Cap, Vacuum Pump Vane
[12.2009 - 07.2014] W04D..WU302,342..DCRTP,DCRTR |
29329-EV010 |
— | ||
|
29331
|
29331
29331-EV010
Blade, Vacuum Pump, A
[12.2009 - 07.2014] W04D..WU302,342..DCRTP,DCRTR |
29331-EV010 |
— | ||
|
29342B
|
29342B
29343-EV010
Ring, O
[12.2009 - 07.2014] W04D..WU302,342..DCRTP,DCRTR |
29343-EV010 |
— | ||
|
29369
|
29369
29369-EV010
Valve Sub-Assy, Check
[12.2009 - 07.2014] W04D..WU302,342..DCRTP,DCRTR |
29369-EV010 |
— | ||
|
1997478160
|
1997478160
19974-78160
New Genuine Part
|
19974-78160 |
— | ||
|
9003105123
|
9003105123
90031-05123 Bolt(For Cylinder Head Cover) |
90031-05123 |
US $9.14 |
||
|
9003105126
|
9003105126
90031-05126 New Genuine Part |
90031-05126 |
US $4.30 |
||
|
9003175001
|
9003175001
90031-75001 New Genuine Part |
90031-75001 |
US $1.79 |
||
|
9003301097
|
9003301097
90033-01097
New Genuine Part
|
90033-01097 |
— | ||
|
9003468031
|
9003468031
90034-68031 New Genuine Part |
90034-68031 |
US $6.99 |
||
|
9020114014
|
9020114014
90201-14014 Gasket(For Turbo Oil Inlet Pipe) |
90201-14014 |
US $1.25 |
||
|
SZ01005003
|
SZ01005003
SZ010-05003
New Genuine Part
|
SZ010-05003 |
— | ||
|
SZ34109001
|
SZ34109001
SZ341-09001 New Genuine Part |
SZ341-09001 |
US $7.72 |
||
