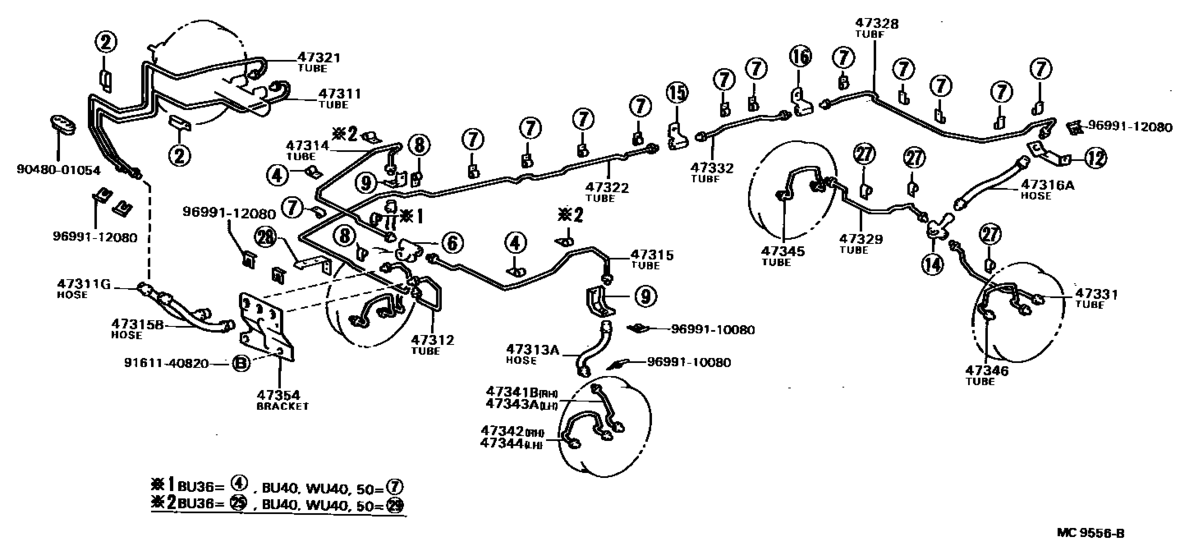

Brake Tube & Clamp ([02.1983 - 08.1984] (8302-8408)BU36,40,WU40,50..LHD) Diagram Toyota DYNA/ TOYOACE
- Year
- 1983 - 1984
- Sales region
- General
- Frame
- WU40
- body
- TR
- ENGINE
- 1W
- DESTINATION
- GEN
- From
- 04.1983
- To
- 08.1984
- Gear Shift Type
- 5F
- Deck,cab
- T3
- Driver's Position
- LHD
- Building Condition
- IV3
- Deck(Material)
- TB
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47311
|
47311
47311-36260
Tube, Front Brake, No.1
[02.1983 - 08.1984] BU36,40,WU40,50..LHD |
47311-36260 |
— | ||
|
47311G
|
47311G
96932-33405 Hose, Clutch, No.1CLUTCH, NO.1 [04.1982 - 08.1984] BU36,40,HU40,50,WU40,50 |
96932-33405 |
US $18.35 |
||
|
47312
|
47312
47312-36220
Tube, Front Brake, No.2
[02.1983 - 08.1984] BU36,40,WU40,50..LHD |
47312-36220 |
— | ||
|
47313A
|
47313A
96950-33905 Hose, ClutchFLEXIBLE, NO.1(FOR FRONT) [04.1982 - 08.1984] BU40,HU40,50,WU40,50 |
96950-33905 |
US $19.22 |
||
|
47314
|
47314
47314-36180
Tube, Front Brake, No.4
[02.1983 - 08.1984] BU40,WU40,50..LHD |
47314-36180 |
— | ||
|
47315
|
47315
47314-36170
Tube, Front Brake, No.4
[02.1983 - 08.1984] BU40,WU40,50..LHD |
47314-36170 |
— | ||
|
47315B
|
47315B
96932-33405 Hose, Clutch, No.1CLUTCH, NO.1 [04.1982 - 08.1984] BU36,40,HU40,50,WU40,50 |
96932-33405 |
US $18.35 |
||
|
47316A
|
47316A
96912-33505
Hose, Flexible(For Rear Brake Tube)
[04.1982 - 08.1984] BU40,HU40,50,WU40,50 |
96912-33505 |
— | ||
|
47321
|
47321
47321-36160
Tube, Rear Brake, No.1
[02.1983 - 08.1984] BU36,40,WU40,50..LHD |
47321-36160 |
— | ||
|
47322
|
47322
47322-36170
Tube, Rear Brake, No.2
[04.1983 - 08.1984] WU40,50..LHD |
47322-36170 |
— | ||
|
47328
|
47328
47328-36200
Tube, Rear Brake, No.8
[04.1982 - 05.1983] HU50;BU40,HU40,WU40..GEN |
47328-36200 |
— | ||
|
47329
|
47329
47329-36180 Tube, Rear Brake, No.6[04.1982 - 08.1984] BU40,HU40,50,WU40,50 |
47329-36180 |
US $40.91 |
||
|
47331
|
47331
47331-36210 Tube, Rear Brake, No.7[04.1982 - 08.1984] BU40,HU40,50,WU40,50 |
47331-36210 |
US $12.52 |
||
|
47332
|
47332
47332-36060
Tube, Rear Brake, No.11
[04.1982 - 08.1984] BU40,HU40,WU40 |
47332-36060 |
— | ||
|
47341B
|
47341B
47341-36060 Tube, Wheel Cylinder, Front Rh No.1[04.1982 - 08.1984] BU40,HU40,50,WU40,50 |
47341-36060 |
US $9.17 |
||
|
47342
|
47342
47342-36050 Tube, Wheel Cylinder, Front Rh No.2[04.1982 - 08.1984] BU40,HU40,50,WU40,50 |
47342-36050 |
US $9.17 |
||
|
47343A
|
47343A
47343-36060 Tube, Wheel Cylinder, Front Lh No.1[04.1982 - 08.1984] BU40,HU40,50,WU40,50 |
47343-36060 |
US $9.17 |
||
|
47344
|
47344
47342-36050 Tube, Wheel Cylinder, Front Rh No.2[04.1982 - 08.1984] BU40,HU40,50,WU40,50 |
47342-36050 |
US $9.17 |
||
|
47345
|
47345
47342-36050 Tube, Wheel Cylinder, Front Rh No.2[04.1982 - 08.1984] BU40,HU40,50,WU40,50 |
47342-36050 |
US $9.17 |
||
|
47346
|
47346
47342-36050 Tube, Wheel Cylinder, Front Rh No.2[04.1982 - 08.1984] BU40,HU40,50,WU40,50 |
47342-36050 |
US $9.17 |
||
|
47354
|
47354
47354-36040
Bracket, Front Flexible Hose
[02.1983 - 08.1984] BU36,40,WU40,50..LHD |
47354-36040 |
— | ||
|
9048001054
|
9048001054
90480-01054 Grommet(For Brake Tube) |
90480-01054 |
US $2.77 |
||
|
9161140820
|
9161140820
91611-40820
Bolt(For Intake Manifold To Exhaust Manifold)
|
91611-40820 |
— | ||
|
9699110080
|
9699110080
96991-10080 CLIP |
96991-10080 |
from US $1.19 |
||
|
9699112080
|
9699112080
96991-12080 Clip |
96991-12080 |
US $2.15 |
