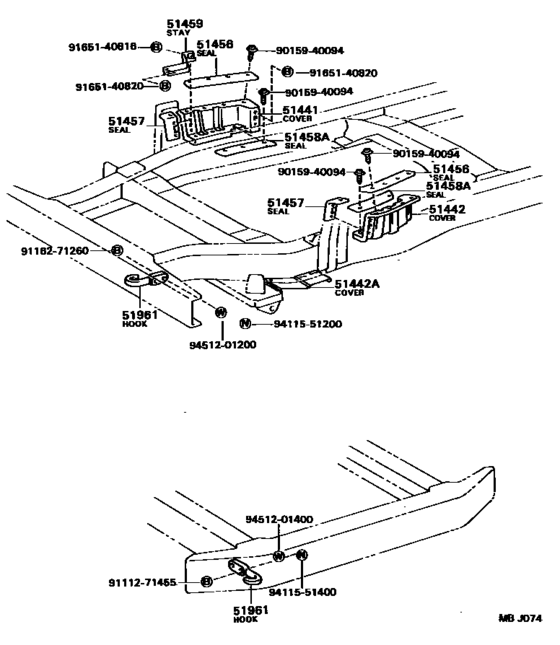

Suspension Crossmember & Under Cover ([04.1982 - 08.1984] (8204-8408)BU36,40,HU40,50,WU40,50) Diagram Toyota DYNA/ TOYOACE
- Year
- 1983 - 1984
- Sales region
- General
- Frame
- WU40
- body
- TR
- ENGINE
- 1W
- DESTINATION
- GEN
- From
- 04.1983
- To
- 08.1984
- Gear Shift Type
- 5F
- Deck,cab
- T3
- Driver's Position
- RHD
- Building Condition
- CBU
- Deck(Material)
- TB
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51441
|
51441
51448-36040
Cover, Engine Under, No.1
[04.1982 - 08.1984] BU36,40,HU40,50,WU40,50 |
51448-36040 |
— | ||
|
51442
|
51442
51449-36030
Cover, Engine Under, No.2
[04.1982 - 08.1984] BU36,40,HU40,50,WU40,50 |
51449-36030 |
— | ||
|
51442A
|
51442A
51441-36160
Cover, Engine Under, Front No.3
[04.1982 - 08.1984] BU40,HU40,50,WU40,50 RH |
51441-36160 |
— | ||
|
51442A
|
51442A
51442-36010
Cover, Engine Under, Front No.3
[04.1982 - 08.1984] BU40,HU40,50,WU40,50 LH |
51442-36010 |
— | ||
|
51456
|
51456
51456-36020
Seal, Engine Side Cover, Upper
[04.1982 - 08.1984] BU36,40,HU40,50,WU40,50 |
51456-36020 |
— | ||
|
51457
|
51457
51457-36020
Seal, Engine Side Cover, Front
[04.1982 - 08.1984] BU36,40,HU40,50,WU40,50 |
51457-36020 |
— | ||
|
51458A
|
51458A
51458-36010
Seal, Engine Side Cover, Lower
[04.1982 - 08.1984] BU36,40,HU40,50,WU40,50 |
51458-36010 |
— | ||
|
51459
|
51459
51459-36020
Stay, Engine Side Cover
[04.1982 - 08.1984] BU36,40,HU40,50,WU40,50 |
51459-36020 |
— | ||
|
51961
|
51961
51961-36020 Hook, No.1[08.1977 - 11.1984] BU25,3#,40,HU30,40,50,RU25,30,WU40,50 RR |
51961-36020 |
US $24.17 |
||
|
51961
|
51961
51961-36030 Hook, No.1[04.1981 - 11.1984] BU30..GHI;BU32,36,40,HU40,50,WU40,50 FR; BU20,3#,RU2#,30 FR,HIGH GROUND CLEARANCE TYPE |
51961-36030 |
US $41.93 |
||
|
9015940094
|
9015940094
90159-40094 Bolt, W/Washer |
90159-40094 |
US $1.31 |
||
|
9111271455
|
9111271455
91112-71455
Bolt, Upper Arm Set
|
91112-71455 |
— | ||
| replacement | |||||
|
9111271455
|
9111271455
91112-81455 Bolt, Upper Arm Set |
91112-81455 |
US $4.05 |
||
|
9116271260
|
9116271260
91162-71260
New Genuine Part
|
91162-71260 |
— | ||
| replacement | |||||
|
9116271260
|
9116271260
91162-81260 New Genuine Part |
91162-81260 |
US $4.02 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.98 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $0.96 |
||
|
9411551200
|
9411551200
94115-51200 Nut(For Backing Plate To Steering Knuckle Setting) |
94115-51200 |
US $3.05 |
||
|
9411551400
|
9411551400
94115-51400 Nut, Lock |
94115-51400 |
US $3.58 |
||
|
9451201200
|
9451201200
94512-01200 Washer |
94512-01200 |
from US $0.72 |
||
|
9451201400
|
9451201400
94512-01400 Washer(For Rear Spring U Bolt) |
94512-01400 |
US $1.79 |
||
