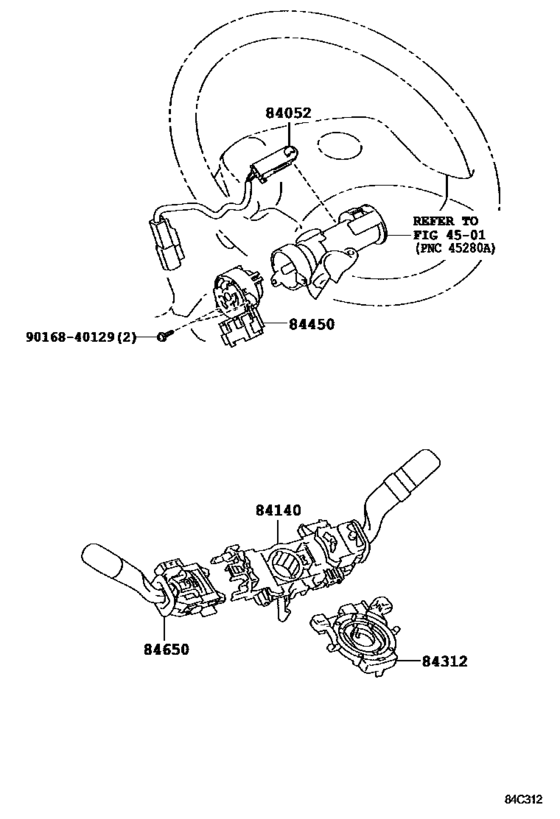

Switch & Relay & Computer ([07.2011 - ] STEERING (1107- )RHD) Diagram Toyota DYNA/ TOYOACE
- Year
- 2011 - 2018
- Sales region
- General
- Frame
- WU710
- ENGINE
- W04D
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- CAB
- SCB
- From
- 07.2011
- Gear Shift Type
- 5F
- Loading Capacity
- 75T
- Driver's Position
- RHD
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84052
|
84052
84052-37010 Switch Assy, Un-Lock Warning[07.2011 - 05.2015] WU710..85T..IV3;WU710,XZU710..(65T,75T)..(GCC,GEN);WU720,XZU720..(75T,85T)..(GCC,G EN) |
84052-37010 |
US $17.92 |
||
|
84140
|
84140
84140-37121 Switch Assy, Headlamp Dimmer[07.2011 -] WU710..RHD |
84140-37121 |
US $112.11 |
||
|
84140
|
84140
84140-37131 Switch Assy, Headlamp Dimmer[07.2011 -] WU710..RHD FRONT FOG LAMP-WITH(WHITE) |
84140-37131 |
US $117.94 |
||
|
84312
|
84312
84312-37010
Plate, Horn Contact
[07.2011 - 11.2011] WU700,710,720,XZU710; WU700,710,720,XZU710..MTM..GCC SRS AIR BAG-WITH(DRIVER); WU700,710,720,XZU710..MTM..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER) |
84312-37010 |
— | ||
| replacement | |||||
|
84312
|
84312
84312-37011 Plate, Horn Contact[07.2011 - 11.2011] WU700,710,720,XZU710; WU700,710,720,XZU710..MTM..GCC SRS AIR BAG-WITH(DRIVER); WU700,710,720,XZU710..MTM..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER) |
84312-37011 |
US $33.55 |
||
|
84312
|
84312
84312-37011 Plate, Horn Contact[12.2011 -] WU700,710,720,XZU710,720..MTM..(GCC,GEN); WU700,710,720,XZU710,720..MTM..GCC SRS AIR BAG-WITH(DRIVER); WU700,710,720,XZU710,720..MTM..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER) |
84312-37011 |
US $33.55 |
||
|
84450
|
84450
84450-E0020 Switch Assy, Ignition Or Starter[07.2011 -] WU700,710,720,XZU710,720..MTM..(GCC,GEN) |
84450-E0020 |
from US $47.05 |
||
|
84650
|
84650
84652-37300 Switch Assy, Windshield Wiper[07.2011 -] WU710..RHD |
84652-37300 |
US $77.28 |
||
|
9016840129
|
9016840129
90168-40129 SCREW TAPPING |
90168-40129 |
US $1.08 |
||
