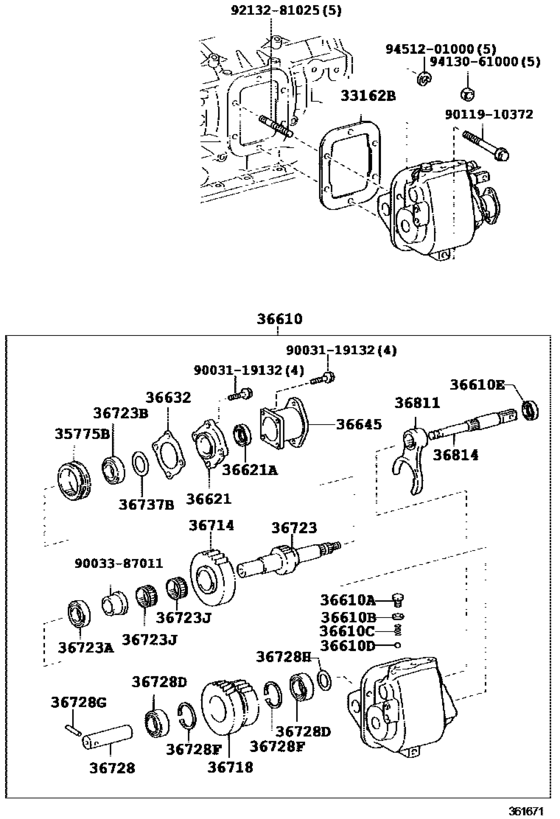

Power Take-Off Case & Gear ([07.2011 - ] M550 MANUAL LEVER TYPE 25KG (1107- )XZU710..5F ; (1107- )LHD..75T..GEN) Diagram Toyota DYNA/ TOYOACE
- Year
- 2011 - 2018
- Sales region
- General
- Frame
- WU720
- ENGINE
- W04D
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- CAB
- SCB
- From
- 07.2011
- Gear Shift Type
- 5F
- Loading Capacity
- 75T
- Driver's Position
- LHD
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33162B
|
33162B
33162-37030 Gasket, Manual Transmission Power Take-Off Cover[07.2011 -] WU710..RHD..75T;WU700,710,720..65T POWER TAKE OFF-VACUUM TYPE 15KG; WU710..RHD..75T;WU710..65T..GEN..CBU;WU700,710,720..65T..IV3 POWER TAKE OFF-VACUUM TYPE 15KG + DUMP LEVER; XZU710..5F;WU710,720..LHD..75T..GEN POWER TAKE OFF-MANUAL LEVER TYPE |
33162-37030 |
US $5.91 |
||
|
35775B
|
35775B
35775-37030 Sleeve, Output Shaft[07.2011 -] XZU710..5F;WU710,720..LHD..75T..GEN POWER TAKE OFF-MANUAL LEVER TYPE 25KG; XZU710..5F;WU710,720..LHD..75T..GEN POWER TAKE OFF-ELECTLIC TYPE 25KG; XZU710..65T..IV3;WU710,720..LHD..75T..GEN..IV3 POWER TAKE OFF-ELECTLIC TYPE 25KG + DUMP LEVER |
35775-37030 |
US $42.22 |
||
|
36610
|
36610
36610-37331 Power Take-Off Assy[07.2011 - 12.2011] XZU710..IV3;WU710,720..LHD..75T..GEN POWER TAKE OFF-MANUAL LEVER TYPE 25KG |
36610-37331 |
US $1,543.36 |
||
| replacement | |||||
|
36610
|
36610
36610-37332 Power Take-Off Assy[07.2011 - 12.2011] XZU710..IV3;WU710,720..LHD..75T..GEN POWER TAKE OFF-MANUAL LEVER TYPE 25KG |
36610-37332 |
US $1,163.34 |
||
|
36610
|
36610
36610-37332 Power Take-Off Assy[01.2012 -] XZU710..5F;WU710,720..LHD..75T..GEN POWER TAKE OFF-MANUAL LEVER TYPE 25KG |
36610-37332 |
US $1,163.34 |
||
|
36610
|
36610
36610-37410 Power Take-Off Assy[07.2011 - 09.2016] XZU710..5F;WU710,720..LHD..75T..GEN POWER TAKE OFF-ELECTLIC TYPE 25KG; XZU710..65T..IV3;WU710,720..LHD..75T..GEN..IV3 POWER TAKE OFF-ELECTLIC TYPE 25KG + DUMP LEVER |
36610-37410 |
US $1,281.28 |
||
| replacement | |||||
|
36610
|
36610
36610-37411 Power Take-Off Assy[07.2011 - 09.2016] XZU710..5F;WU710,720..LHD..75T..GEN POWER TAKE OFF-ELECTLIC TYPE 25KG; XZU710..65T..IV3;WU710,720..LHD..75T..GEN..IV3 POWER TAKE OFF-ELECTLIC TYPE 25KG + DUMP LEVER |
36610-37411 |
US $1,281.28 |
||
|
36610
|
36610
36610-37411 Power Take-Off Assy[10.2016 -] WU710..LHD..75T;WU720,XZU710..5F POWER TAKE OFF-ELECTLIC TYPE 25KG; XZU710..65T..IV3;WU710,720..LHD..75T..GEN..IV3 POWER TAKE OFF-ELECTLIC TYPE 25KG + DUMP LEVER |
36610-37411 |
US $1,281.28 |
||
|
36610A
|
36610A
90031-01180 Bolt, Lock Ball (For Power Take-Off)[07.2011 -] XZU710..5F;WU710,720..LHD..75T..GEN POWER TAKE OFF-MANUAL LEVER TYPE 25KG |
90031-01180 |
US $1.31 |
||
|
36610B
|
36610B
90430-12001
Gasket, Seat (For Power Take-Off)
[07.2011 -] XZU710..5F;WU710,720..LHD..75T..GEN T=0.5,POWER TAKE OFF-MANUAL LEVER TYPE 25KG |
90430-12001 |
— | ||
|
36610B
|
36610B
90430-12004 Gasket, Seat (For Power Take-Off)[07.2011 -] XZU710..5F;WU710,720..LHD..75T..GEN T=2,POWER TAKE OFF-MANUAL LEVER TYPE 25KG |
90430-12004 |
US $0.61 |
||
|
36610B
|
36610B
90430-12006 Gasket, Seat (For Power Take-Off)[07.2011 -] XZU710..5F;WU710,720..LHD..75T..GEN T=1,POWER TAKE OFF-MANUAL LEVER TYPE 25KG |
90430-12006 |
US $1.02 |
||
|
36610B
|
36610B
90430-18008 Gasket[07.2011 -] XZU710..5F;WU710,720..LHD..75T..GEN T=2,POWER TAKE OFF-ELECTLIC TYPE 25KG; XZU710..65T..IV3;WU710,720..LHD..75T..GEN..IV3 T=2,POWER TAKE OFF-ELECTLIC TYPE 25KG + DUMP LEVER |
90430-18008 |
US $1.97 |
||
| replacement | |||||
|
36610B
|
36610B
90430-T0021 Gasket(For Manual Transmission Filler Plug)[07.2011 -] XZU710..5F;WU710,720..LHD..75T..GEN T=2,POWER TAKE OFF-ELECTLIC TYPE 25KG; XZU710..65T..IV3;WU710,720..LHD..75T..GEN..IV3 T=2,POWER TAKE OFF-ELECTLIC TYPE 25KG + DUMP LEVER |
90430-T0021 |
US $1.01 |
||
|
36610C
|
36610C
90035-01053 Spring, Gear Shift Fork Lock Ball (For Power Take-Off)[07.2011 -] XZU710..5F;WU710,720..LHD..75T..GEN POWER TAKE OFF-MANUAL LEVER TYPE 25KG |
90035-01053 |
US $1.02 |
||
|
36610D
|
36610D
90360-10001
Ball, Gear Shift Fork Lock (For Power Take-Off)
[07.2011 -] XZU710..5F;WU710,720..LHD..75T..GEN POWER TAKE OFF-MANUAL LEVER TYPE 25KG |
90360-10001 |
— | ||
|
36610E
|
36610E
90311-20010 Seal, Oil (For Power Take-Off)[07.2011 -] XZU710..5F;WU710,720..LHD..75T..GEN POWER TAKE OFF-MANUAL LEVER TYPE 25KG; XZU710..5F;WU710,720..LHD..75T..GEN POWER TAKE OFF-ELECTLIC TYPE 25KG; XZU710..65T..IV3;WU710,720..LHD..75T..GEN..IV3 POWER TAKE OFF-ELECTLIC TYPE 25KG + DUMP LEVER |
90311-20010 |
US $2.61 |
||
|
36621
|
36621
36621-37071 Retainer, Power Take-Off Bearing[07.2011 -] XZU710..5F;WU710,720..LHD..75T..GEN POWER TAKE OFF-MANUAL LEVER TYPE 25KG; XZU710..5F;WU710,720..LHD..75T..GEN POWER TAKE OFF-ELECTLIC TYPE 25KG; XZU710..65T..IV3;WU710,720..LHD..75T..GEN..IV3 POWER TAKE OFF-ELECTLIC TYPE 25KG + DUMP LEVER |
36621-37071 |
US $26.50 |
||
|
36621A
|
36621A
90311-25110 Seal, Oil (For Power Take-Off Bearing Retainer)[07.2011 -] WU710..RHD..75T;WU700,710,720..65T POWER TAKE OFF-VACUUM TYPE 15KG; WU710..RHD..75T;WU710..65T..GEN..CBU;WU700,710,720..65T..IV3 POWER TAKE OFF-VACUUM TYPE 15KG + DUMP LEVER; XZU710..5F;WU710,720..LHD..75T..GEN POWER TAKE OFF-MANUAL LEVER TYPE |
90311-25110 |
from US $5.20 |
||
|
36632
|
36632
36632-37030 Gasket, Power Take-Off Bearing Retainer[07.2011 -] WU710..RHD..75T;WU700,710,720..65T POWER TAKE OFF-VACUUM TYPE 15KG; WU710..RHD..75T;WU710..65T..GEN..CBU;WU700,710,720..65T..IV3 POWER TAKE OFF-VACUUM TYPE 15KG + DUMP LEVER; XZU710..5F;WU710,720..LHD..75T..GEN POWER TAKE OFF-MANUAL LEVER TYPE |
36632-37030 |
US $3.06 |
||
|
36645
|
36645
36645-37030 Spacer, Power Take-Off Output Shaft[07.2011 -] XZU710..5F;WU710,720..LHD..75T..GEN POWER TAKE OFF-MANUAL LEVER TYPE 25KG |
36645-37030 |
US $93.18 |
||
|
36714
|
36714
36714-37171 Gear, Power Take-Off Output[07.2011 -] XZU710..5F;WU710,720..LHD..75T..GEN POWER TAKE OFF-MANUAL LEVER TYPE 25KG; XZU710..5F;WU710,720..LHD..75T..GEN POWER TAKE OFF-ELECTLIC TYPE 25KG; XZU710..65T..IV3;WU710,720..LHD..75T..GEN..IV3 POWER TAKE OFF-ELECTLIC TYPE 25KG + DUMP LEVER |
36714-37171 |
US $70.18 |
||
|
36718
|
36718
36718-37110 Gear, Power Take-Off Idler[07.2011 -] XZU710..5F;WU710,720..LHD..75T..GEN POWER TAKE OFF-MANUAL LEVER TYPE 25KG; XZU710..5F;WU710,720..LHD..75T..GEN POWER TAKE OFF-ELECTLIC TYPE 25KG; XZU710..65T..IV3;WU710,720..LHD..75T..GEN..IV3 POWER TAKE OFF-ELECTLIC TYPE 25KG + DUMP LEVER |
36718-37110 |
US $78.62 |
||
|
36723
|
36723
36723-37101 Shaft, Power Take-Off Output, No.1[07.2011 -] XZU710..5F;WU710,720..LHD..75T..GEN POWER TAKE OFF-MANUAL LEVER TYPE 25KG |
36723-37101 |
US $63.19 |
||
|
36723
|
36723
36723-37110 Shaft, Power Take-Off Output, No.1[07.2011 -] XZU710..5F;WU710,720..LHD..75T..GEN POWER TAKE OFF-ELECTLIC TYPE 25KG; XZU710..65T..IV3;WU710,720..LHD..75T..GEN..IV3 POWER TAKE OFF-ELECTLIC TYPE 25KG + DUMP LEVER |
36723-37110 |
US $82.99 |
||
|
36723A
|
36723A
90366-22001 Bearing(For Power Take-Off Idler Gear Front)[07.2011 -] XZU710..5F;WU710,720..LHD..75T..GEN POWER TAKE OFF-MANUAL LEVER TYPE 25KG |
90366-22001 |
US $20.44 |
||
|
36723B
|
36723B
90366-22001 Bearing(For Power Take-Off Idler Gear Front)[07.2011 -] WU710..RHD..75T;WU700,710,720..65T T=16.25,POWER TAKE OFF-VACUUM TYPE 15KG; WU710..RHD..75T;WU710..65T..GEN..CBU;WU700,710,720..65T..IV3 T=16.25,POWER TAKE OFF-VACUUM TYPE 15KG + DUMP LEVER; XZU710..5F;WU710,720..LHD..75T..GEN T=16.25,POWER TA |
90366-22001 |
US $20.44 |
||
|
36723J
|
36723J
90364-28020 Bearing (For Power Take-Off Output Shaft)[07.2011 -] WU710..RHD..75T;WU700,710,720..65T POWER TAKE OFF-VACUUM TYPE 15KG; WU710..RHD..75T;WU710..65T..GEN..CBU;WU700,710,720..65T..IV3 POWER TAKE OFF-VACUUM TYPE 15KG + DUMP LEVER; XZU710..5F;WU710,720..LHD..75T..GEN POWER TAKE OFF-MANUAL LEVER TYPE |
90364-28020 |
US $11.36 |
||
|
36723J
|
36723J
90366-22001 Bearing(For Power Take-Off Idler Gear Front)[07.2011 -] XZU710..5F;WU710,720..LHD..75T..GEN POWER TAKE OFF-ELECTLIC TYPE 25KG,NO.1; XZU710..65T..IV3;WU710,720..LHD..75T..GEN..IV3 POWER TAKE OFF-ELECTLIC TYPE 25KG + DUMP LEVER,NO.1 |
90366-22001 |
US $20.44 |
||
|
36728
|
36728
36728-37020 Shaft, Power Take-Off Idler[07.2011 -] XZU710..5F;WU710,720..LHD..75T..GEN POWER TAKE OFF-MANUAL LEVER TYPE 25KG; XZU710..5F;WU710,720..LHD..75T..GEN POWER TAKE OFF-ELECTLIC TYPE 25KG; XZU710..65T..IV3;WU710,720..LHD..75T..GEN..IV3 POWER TAKE OFF-ELECTLIC TYPE 25KG + DUMP LEVER |
36728-37020 |
US $23.73 |
||
|
36728D
|
36728D
90366-25011 Bearing (For Output Shaft Rear)[07.2011 -] XZU710..5F;WU710,720..LHD..75T..GEN POWER TAKE OFF-MANUAL LEVER TYPE 25KG; XZU710..5F;WU710,720..LHD..75T..GEN POWER TAKE OFF-ELECTLIC TYPE 25KG; XZU710..65T..IV3;WU710,720..LHD..75T..GEN..IV3 POWER TAKE OFF-ELECTLIC TYPE 25KG + DUMP LEVER |
90366-25011 |
US $25.92 |
||
|
36728F
|
36728F
90521-56108 Ring, Hole Snap(For Power Take-Off Idler Gear)[07.2011 -] WU710..RHD..75T;WU700,710,720..65T POWER TAKE OFF-VACUUM TYPE 15KG; WU710..RHD..75T;WU710..65T..GEN..CBU;WU700,710,720..65T..IV3 POWER TAKE OFF-VACUUM TYPE 15KG + DUMP LEVER; XZU710..5F;WU710,720..LHD..75T..GEN POWER TAKE OFF-MANUAL LEVER TYPE |
90521-56108 |
US $9.76 |
||
|
36728G
|
36728G
90254-04002 Plate Or Pin, Lock (For Power Take-Off)[07.2011 -] WU710..RHD..75T;WU700,710,720..65T POWER TAKE OFF-VACUUM TYPE 15KG; WU710..RHD..75T;WU710..65T..GEN..CBU;WU700,710,720..65T..IV3 POWER TAKE OFF-VACUUM TYPE 15KG + DUMP LEVER; XZU710..5F;WU710,720..LHD..75T..GEN POWER TAKE OFF-MANUAL LEVER TYPE |
90254-04002 |
US $0.96 |
||
|
36728H
|
36728H
90564-25001 Shim (For Power Take-Off Idler Shaft)[07.2011 -] WU710..RHD..75T;WU700,710,720..65T T=0.05,POWER TAKE OFF-VACUUM TYPE 15KG; WU710..RHD..75T;WU710..65T..GEN..CBU;WU700,710,720..65T..IV3 T=0.05,POWER TAKE OFF-VACUUM TYPE 15KG + DUMP LEVER; XZU710..5F;WU710,720..LHD..75T..GEN T=0.05,POWER TAKE |
90564-25001 |
US $0.87 |
||
|
36728H
|
36728H
90564-25002 Shim (For Power Take-Off Idler Shaft)[07.2011 -] WU710..RHD..75T;WU700,710,720..65T T=0.1,POWER TAKE OFF-VACUUM TYPE 15KG; WU710..RHD..75T;WU710..65T..GEN..CBU;WU700,710,720..65T..IV3 T=0.1,POWER TAKE OFF-VACUUM TYPE 15KG + DUMP LEVER; XZU710..5F;WU710,720..LHD..75T..GEN T=0.1,POWER TAKE OFF |
90564-25002 |
US $1.31 |
||
|
36728H
|
36728H
90564-25003 Shim (For Power Take-Off Idler Shaft)[07.2011 -] WU710..RHD..75T;WU700,710,720..65T T=0.2,POWER TAKE OFF-VACUUM TYPE 15KG; WU710..RHD..75T;WU710..65T..GEN..CBU;WU700,710,720..65T..IV3 T=0.2,POWER TAKE OFF-VACUUM TYPE 15KG + DUMP LEVER; XZU710..5F;WU710,720..LHD..75T..GEN T=0.2,POWER TAKE OFF |
90564-25003 |
US $1.31 |
||
|
36728H
|
36728H
90564-25004 Shim (For Power Take-Off Idler Shaft)[07.2011 -] WU710..RHD..75T;WU700,710,720..65T T=0.5,POWER TAKE OFF-VACUUM TYPE 15KG; WU710..RHD..75T;WU710..65T..GEN..CBU;WU700,710,720..65T..IV3 T=0.5,POWER TAKE OFF-VACUUM TYPE 15KG + DUMP LEVER; XZU710..5F;WU710,720..LHD..75T..GEN T=0.5,POWER TAKE OFF |
90564-25004 |
US $1.31 |
||
|
36737B
|
36737B
90564-42001 Shim (For Power Take-Off Idler Shaft)[07.2011 -] WU710..RHD..75T;WU700,710,720..65T T=0.02-0.08,POWER TAKE OFF-VACUUM TYPE 15KG; WU710..RHD..75T;WU710..65T..GEN..CBU;WU700,710,720..65T..IV3 T=0.02-0.08,POWER TAKE OFF-VACUUM TYPE 15KG + DUMP LEVER; XZU710..5F;WU710,720..LHD..75T..GEN T=0.02-0 |
90564-42001 |
US $1.02 |
||
|
36737B
|
36737B
90564-42002 Shim (For Power Take-Off Idler Shaft)[07.2011 -] WU710..RHD..75T;WU700,710,720..65T T=0.07-0.13,POWER TAKE OFF-VACUUM TYPE 15KG; WU710..RHD..75T;WU710..65T..GEN..CBU;WU700,710,720..65T..IV3 T=0.07-0.13,POWER TAKE OFF-VACUUM TYPE 15KG + DUMP LEVER; XZU710..5F;WU710,720..LHD..75T..GEN T=0.07-0 |
90564-42002 |
US $1.02 |
||
|
36737B
|
36737B
90564-42003 Shim (For Power Take-Off Idler Shaft)[07.2011 -] WU710..RHD..75T;WU700,710,720..65T T=0.17-0.23,POWER TAKE OFF-VACUUM TYPE 15KG; WU710..RHD..75T;WU710..65T..GEN..CBU;WU700,710,720..65T..IV3 T=0.17-0.23,POWER TAKE OFF-VACUUM TYPE 15KG + DUMP LEVER; XZU710..5F;WU710,720..LHD..75T..GEN T=0.17-0 |
90564-42003 |
US $1.02 |
||
|
36737B
|
36737B
90564-42004 Shim (For Power Take-Off Idler Shaft)[07.2011 -] WU710..RHD..75T;WU700,710,720..65T T=0.47-0.53,POWER TAKE OFF-VACUUM TYPE 15KG; WU710..RHD..75T;WU710..65T..GEN..CBU;WU700,710,720..65T..IV3 T=0.47-0.53,POWER TAKE OFF-VACUUM TYPE 15KG + DUMP LEVER; XZU710..5F;WU710,720..LHD..75T..GEN T=0.47-0 |
90564-42004 |
US $1.02 |
||
|
36811
|
36811
36811-93104 Fork, Powr Take-Off Shift, No.1[07.2011 -] WU710..RHD..75T;WU700,710,720..65T POWER TAKE OFF-VACUUM TYPE 15KG; WU710..RHD..75T;WU710..65T..GEN..CBU;WU700,710,720..65T..IV3 POWER TAKE OFF-VACUUM TYPE 15KG + DUMP LEVER; XZU710..5F;WU710,720..LHD..75T..GEN POWER TAKE OFF-MANUAL LEVER TYPE |
36811-93104 |
US $12.41 |
||
|
36814
|
36814
36814-37060 Shaft, Powr Take-Off Fork, No.1[07.2011 -] XZU710..5F;WU710,720..LHD..75T..GEN POWER TAKE OFF-MANUAL LEVER TYPE 25KG |
36814-37060 |
US $19.22 |
||
|
36814
|
36814
36814-37080
Shaft, Powr Take-Off Fork, No.1
[07.2011 -] XZU710..5F;WU710,720..LHD..75T..GEN POWER TAKE OFF-ELECTLIC TYPE 25KG; XZU710..65T..IV3;WU710,720..LHD..75T..GEN..IV3 POWER TAKE OFF-ELECTLIC TYPE 25KG + DUMP LEVER |
36814-37080 |
— | ||
|
9003119132
|
9003119132
90031-19132 New Genuine Part |
90031-19132 |
US $1.02 |
||
|
9003387011
|
9003387011
90033-87011 New Genuine Part |
90033-87011 |
US $7.28 |
||
|
9011910372
|
9011910372
90119-10372 New Genuine Part |
90119-10372 |
US $2.04 |
||
|
9213281025
|
9213281025
92132-81025 New Genuine Part |
92132-81025 |
US $2.15 |
||
|
9413061000
|
9413061000
94130-61000 Nut(For Clutch Pedal Stopper) |
94130-61000 |
from US $0.76 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.80 |
||
