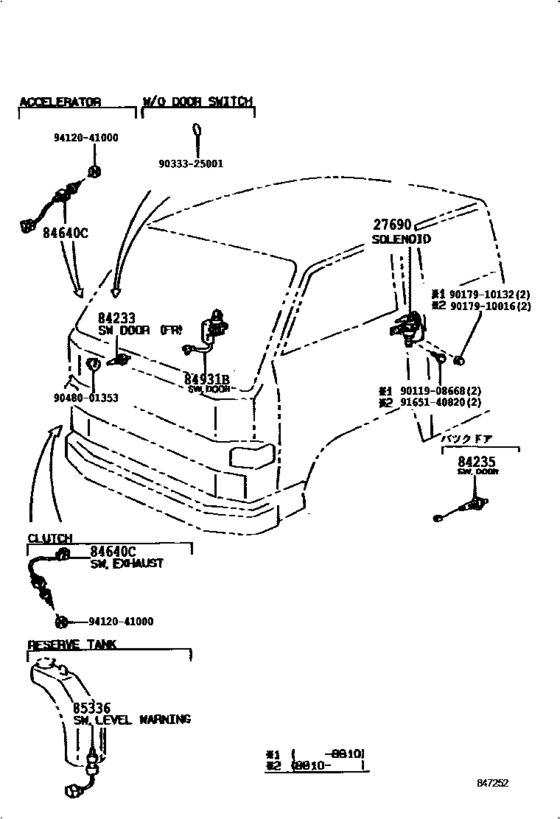

Switch & Relay & Computer ([08.1988 - 05.1995] (8808-9505)) Diagram Toyota DYNA/ TOYOACE
- Year
- 1989 - 1995
- Sales region
- Japan
- Frame
- WU85
- body
- TR
- ENGINE
- 1W
- Model
- DYNA/TOYOACE
- From
- 10.1989
- To
- 05.1995
- Gear Shift Type
- 5F
- Seating Capacity
- 03S
- Vehicle Model
- DYN
- Deck,cab
- T3
- Loading Capacity
- 30T
- Fuel Induction
- DSL
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27690
|
27690
27690-56100 Solenoid Assy, W/bracket(For Exhaust Brake)[08.1988 - 09.1991] 1W..WU75,85,9# |
27690-56100 |
US $310.13 |
||
| replacement | |||||
|
27690
|
27690
27690-56102 Solenoid Assy, W/bracket(For Exhaust Brake)[08.1988 - 09.1991] 1W..WU75,85,9# |
27690-56102 |
US $304.30 |
||
|
27690
|
27690
27690-56101 Solenoid Assy, W/bracket(For Exhaust Brake)[09.1991 - 09.1992] 1W..WU75,85,9# |
27690-56101 |
US $304.30 |
||
| replacement | |||||
|
27690
|
27690
27690-56102 Solenoid Assy, W/bracket(For Exhaust Brake)[09.1991 - 09.1992] 1W..WU75,85,9# |
27690-56102 |
US $304.30 |
||
|
27690
|
27690
27690-56102 Solenoid Assy, W/bracket(For Exhaust Brake)[09.1992 - 05.1995] 1W..WU75,85,9# |
27690-56102 |
US $304.30 |
||
|
84233
|
84233
84231-28020 Switch, Courtesy Lamp[08.1988 - 11.1993] WU75,85,9#,YU6#,70 |
84231-28020 |
US $14.41 |
||
| replacement | |||||
|
84233
|
84233
84231-28010 Switch Assy, Courtesy Lamp[08.1988 - 11.1993] WU75,85,9#,YU6#,70 |
84231-28010 |
from US $16.93 |
||
|
84640C
|
84640C
84640-36040 Switch Assy, Exhaust Brake[08.1988 - 05.1995] WU75,85,9# |
84640-36040 |
US $36.40 |
||
|
84931B
|
84931B
84930-95702 Switch Assy, Door Control[08.1990 - 09.1991] WU75,85,9#,YU6#,70 |
84930-95702 |
US $51.98 |
||
|
84931B
|
84931B
84931-37010 Switch, Door Control[09.1991 - 12.1991] WU75,85,9#,YU6#,70 |
84931-37010 |
US $48.34 |
||
|
84931B
|
84931B
84931-37020 Switch, Door Control[12.1991 - 11.1993] WU75,85,9#,YU6#,70 |
84931-37020 |
US $48.63 |
||
|
85336
|
85336
85335-34010
Switch Assy, Reserve Tank Level Warning
[08.1988 - 09.1993] WU90;WU75,85,95..DM1,T3 ｵ-ﾅ ｶｽﾀﾑ ｼﾖｳ |
85335-34010 |
— | ||
|
9011908668
|
9011908668
90119-08668 New Genuine Part |
90119-08668 |
US $1.79 |
||
|
9017910016
|
9017910016
90179-10016
Nut(For Counter Gear Shaft)
|
90179-10016 |
— | ||
| replacement | |||||
|
9017910016
|
9017910016
90179-10132 Nut |
90179-10132 |
from US $0.94 |
||
|
9017910132
|
9017910132
90179-10132 Nut |
90179-10132 |
from US $0.94 |
||
|
9033325001
|
9033325001
90333-25001 Plug, Hole(For Hood) |
90333-25001 |
from US $1.29 |
||
|
9048001353
|
9048001353
90480-01353 New Genuine Part |
90480-01353 |
US $7.13 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $0.96 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.76 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
