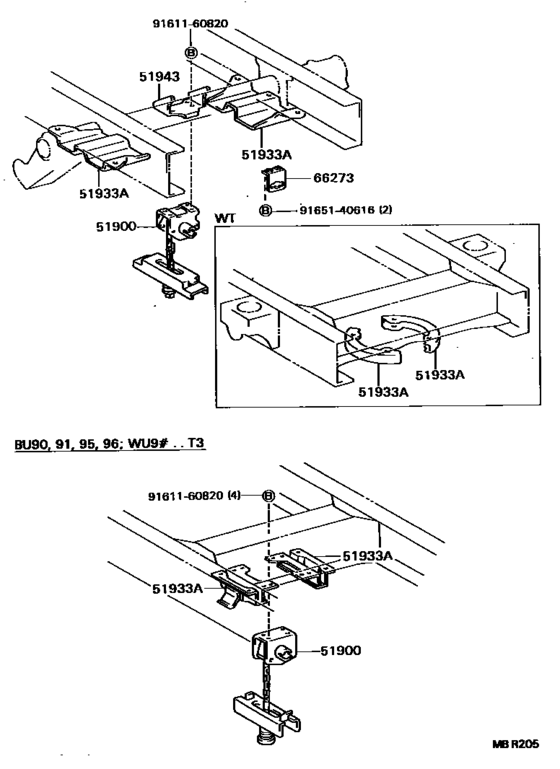

Spare Wheel Carrier ([08.1988 - ] (8808- )YU60..ST ; (8808- )WU85,9#,YU70) Diagram Toyota DYNA/ TOYOACE
- Year
- 1991 - 1995
- Sales region
- Japan
- Frame
- WU85
- body
- TR
- ENGINE
- 1W
- Model
- DYNA/TOYOACE
- From
- 09.1991
- To
- 05.1995
- Gear Shift Type
- 5F
- Seating Capacity
- 03S
- Vehicle Model
- TOY
- Deck,cab
- T4
- Loading Capacity
- 20T
- Fuel Induction
- DSL
- Building Condition
- CBU
- Rear Tire
- WT
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51900
|
51900
51900-36101 Carrier Assy, Spare Wheel[08.1988 - 05.1995] WU85,93,YU60,70..SRF,T1,T3,T4,TW1 |
51900-36101 |
US $96.10 |
||
| replacement | |||||
|
51900
|
51900
51900-36102 Carrier Assy, Spare Wheel[08.1988 - 05.1995] WU85,93,YU60,70..SRF,T1,T3,T4,TW1 |
51900-36102 |
from US $96.10 |
||
|
51933A
|
51933A
51903-36050 Stopper, Spare Wheel, No.1[08.1988 - 05.1995] WU85,90,93..T4 |
51903-36050 |
US $189.28 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.21 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.74 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.46 |
||
