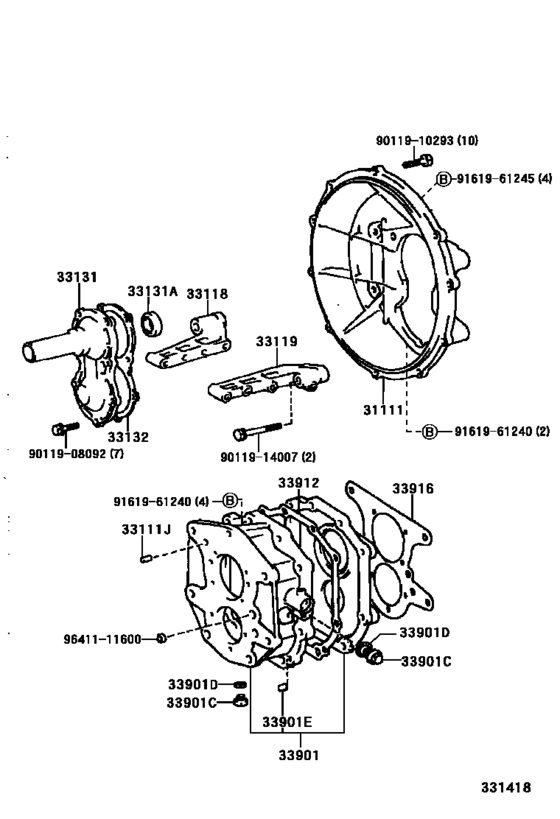

Clutch Housing & Transmission Case (Mtm) ([08.1988 - ] (8808- )WU75,9#) Diagram Toyota DYNA/ TOYOACE
- Year
- 1988 - 1995
- Sales region
- Japan
- Frame
- WU90
- body
- TR
- ENGINE
- 1W
- Model
- DYNA/TOYOACE
- From
- 08.1988
- To
- 05.1995
- Gear Shift Type
- 5F
- Seating Capacity
- 03S
- Vehicle Model
- TOY
- Deck,cab
- T4
- Loading Capacity
- 35T
- Fuel Induction
- DSL
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31111
|
31111
31111-36120
Housing, Clutch
[08.1988 - 05.1995] WU75,90,95 |
31111-36120 |
— | ||
|
33111J
|
33111J
90250-10214 Pin, Straight(For End Plate)[08.1988 - 05.1995] WU75,90,95 長さ＝１４，外径＝１０ |
90250-10214 |
from US $1.38 |
||
|
33111J
|
33111J
90250-12146 Pin, Straight(For Flywheel Housing)[08.1988 - 05.1995] WU75,85,9#,YU6#,70 長さ＝１７，外径＝１２ |
90250-12146 |
US $2.15 |
||
|
33111J
|
33111J
90250-12216 Pin, Straight(For Manual Transmission Case)[08.1988 - 05.1995] WU75,85,9#,YU6#,70 長さ＝１４，外径＝１２ |
90250-12216 |
US $2.04 |
||
|
33118
|
33118
33118-89102 Plate, Stiffener, Rh(Mtm)[08.1988 - 05.1995] WU75,85,9# |
33118-89102 |
US $35.47 |
||
|
33119
|
33119
33119-89101
Plate, Stiffener, Lh(Mtm)
[08.1988 - 05.1995] WU75,85,9# |
33119-89101 |
— | ||
| replacement | |||||
|
33119
|
33119
S1135-61153
Plate, Stiffener, Lh(Mtm)
[08.1988 - 05.1995] WU75,85,9# |
S1135-61153 |
— | ||
|
33131
|
33131
33131-36040 Retainer, Bearing, Front(Mtm)[08.1988 - 05.1995] WU75,90,95 |
33131-36040 |
US $131.04 |
||
|
33131A
|
33131A
90311-28004 Seal, Oil(For Transmission Front Bearing Retainer)[08.1988 - 05.1995] WU75,90,95 |
90311-28004 |
from US $5.73 |
||
|
33132
|
33132
33132-36030 Gasket, Front Bearing Retainer(Mtm)[08.1988 - 05.1995] WU75,90,95 |
33132-36030 |
US $3.64 |
||
|
33901
|
33901
33901-36020 Case Sub-Assy, Adapter[08.1988 - 05.1995] WU75,90,95 |
33901-36020 |
US $1,180.82 |
||
|
33901C
|
33901C
90341-18006 Plug (No magnet)[08.1988 - 05.1995] WU75,90,95 FILLER PLUG |
90341-18006 |
from US $3.23 |
||
|
33901C
|
33901C
90341-18057 Drain Plug (with Magnet)[08.1988 - 05.1995] WU75,90,95 DRAIN PLUG |
90341-18057 |
from US $6.27 |
||
|
33901D
|
33901D
90430-18008 Gasket[08.1988 - 05.1995] WU75,90,95 |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
33901D
|
33901D
90430-T0021 Gasket(For Manual Transmission Filler Plug)[08.1988 - 05.1995] WU75,90,95 |
90430-T0021 |
US $1.01 |
||
|
33901E
|
33901E
90250-12216 Pin, Straight(For Manual Transmission Case)[08.1988 - 05.1995] WU75,90,95 |
90250-12216 |
US $2.04 |
||
|
33912
|
33912
33912-36010 Gasket, Front Case[08.1988 - 05.1995] WU75,90,95 |
33912-36010 |
US $11.79 |
||
|
33916
|
33916
33916-36020 Gasket, Rear Case[08.1988 - 05.1995] WU75,90,95 |
33916-36020 |
US $15.29 |
||
|
9011908092
|
9011908092
90119-08092 Bolt(For Front Bearing Retainer Setting) |
90119-08092 |
US $2.51 |
||
|
9011910293
|
9011910293
90119-10293
Bolt(For Clutch Housing & Engine Setting)
|
90119-10293 |
— | ||
|
9011914007
|
9011914007
90119-14007 New Genuine Part |
90119-14007 |
US $3.67 |
||
|
9161961240
|
9161961240
91619-61240 New Genuine Part |
91619-61240 |
US $1.38 |
||
|
9161961245
|
9161961245
91619-61245 Bolt(For Transaxle & Engine Setting) |
91619-61245 |
from US $1.81 |
||
|
9641111600
|
9641111600
96411-11600 Plug |
96411-11600 |
US $4.66 |
||
