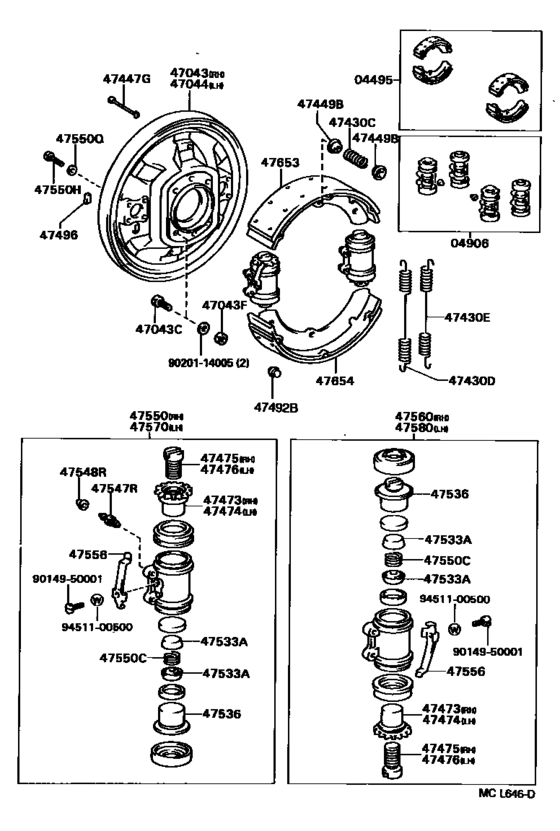

Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - ] (8808- )WU75,90,95) Diagram Toyota DYNA/ TOYOACE
- Year
- 1988 - 1995
- Sales region
- Japan
- Frame
- WU90
- body
- TR
- ENGINE
- 1W
- Model
- DYNA/TOYOACE
- From
- 08.1988
- To
- 05.1995
- Gear Shift Type
- 5F
- Seating Capacity
- 03S
- Vehicle Model
- TOY
- Deck,cab
- T4
- Loading Capacity
- 35T
- Fuel Induction
- DSL
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04495
|
04495
04494-36070 Shoe Kit, Front Brake[08.1988 - 11.1991] WU75,90,95 |
04494-36070 |
US $260.62 |
||
| replacement | |||||
|
04495
|
04495
04494-36170 Shoe Kit, Front Brake[08.1988 - 11.1991] WU75,90,95 |
04494-36170 |
US $163.07 |
||
|
04495
|
04495
04494-36170 Shoe Kit, Front Brake[11.1991 - 05.1995] WU75,90,95 |
04494-36170 |
US $163.07 |
||
|
04495
|
04495
04496-36070
Shoe Kit, Front Brake
[08.1988 - 11.1991] WU75,90,95 REBUILT |
04496-36070 |
— | ||
|
04906
|
04906
04906-36060 Cup Kit, Rear Wheel Cylinder[08.1988 - 05.1995] WU75,90,95 |
04906-36060 |
US $17.12 |
||
|
47043
|
47043
47043-36080 Plate Sub-Assy, Brake Backing, Rear Rh[08.1988 - 05.1995] WU75,90,95 |
47043-36080 |
US $106.29 |
||
|
47043C
|
47043C
90114-14004 Bolt(For Backing Plate To Rear Axle Housing Setting)[08.1988 - 05.1995] WU75,90,95 ＊１４−１．５ＰＸ３９−２６ |
90114-14004 |
US $4.08 |
||
|
47043F
|
47043F
90170-14002 Nut(For Backing Plate To Steering Knuckle Setting)[08.1988 - 05.1995] WU75,90,95 |
90170-14002 |
US $2.77 |
||
|
47044
|
47044
47044-36040 Plate Sub-Assy, Brake Backing, Rear Lh[08.1988 - 05.1995] WU75,90,95 |
47044-36040 |
US $106.29 |
||
|
47430C
|
47430C
90501-20012 Spring(For Front Brake Shoe Hold Down)[08.1988 - 05.1995] WU75,85,9#,YU6#,70 |
90501-20012 |
from US $2.15 |
||
|
47430D
|
47430D
90507-29006 Spring, Tension(For Front Brake Shoe Return)[08.1988 - 05.1995] WU75,85,9#,YU6#..(DM1,T3,T4)..WT |
90507-29006 |
from US $5.75 |
||
|
47430E
|
47430E
90507-29006 Spring, Tension(For Front Brake Shoe Return)[08.1988 - 05.1995] WU75,85,9#,YU6#..(DM1,T3,T4)..WT |
90507-29006 |
from US $5.75 |
||
|
47447G
|
47447G
47447-60010 Pin, Shoe Hold Down Spring(For Front Brake)[08.1988 - 05.1995] WU75,85,9#,YU6#..(DM1,T3,T4)..WT |
47447-60010 |
from US $1.74 |
||
|
47449B
|
47449B
47449-30020 Cup, Shoe Hold Down Spring(For Front Brake)[08.1988 - 05.1995] WU75,85,9#,YU6#,70 |
47449-30020 |
from US $1.29 |
||
|
47473
|
47473
47551-36023 Nut, Rear Wheel Cylinder Adjusting, Rh(For Rear Brake)[08.1988 - 05.1995] WU75,90,95 |
47551-36023 |
US $15.87 |
||
|
47474
|
47474
47552-36023 Nut, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)[08.1988 - 05.1995] WU75,90,95 |
47552-36023 |
US $20.82 |
||
|
47475
|
47475
47553-36030 Bolt, Rear Wheel Cylinder Adjusting, Rh (For Rear Brake)[08.1988 - 05.1995] WU75,90,95 |
47553-36030 |
US $7.86 |
||
|
47476
|
47476
47554-36030 Bolt, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)[08.1988 - 05.1995] WU75,90,95 |
47554-36030 |
US $7.86 |
||
|
47492B
|
47492B
47492-28010 Plug, Shoe Inspection(For Rear Brake)[08.1988 - 05.1995] WU75,90,95; YU60,70..ST; YU60..T2,TW2 |
47492-28010 |
from US $1.52 |
||
|
47496
|
47496
47491-36010
Plug, Hole(For Front Brake)
[08.1988 - 05.1995] WU75,85,9#,YU6#,70 |
47491-36010 |
— | ||
| replacement | |||||
|
47496
|
47496
47491-36020 Plug, Hole(For Rear Brake)[08.1988 - 05.1995] WU75,85,9#,YU6#,70 |
47491-36020 |
US $3.05 |
||
|
47533A
|
47533A
47533-25010 Seat, Wheel Cylinder Piston Spring(For Front Brake)[08.1988 - 05.1995] WU75,90,95 |
47533-25010 |
US $5.68 |
||
|
47536
|
47536
47531-36032 Piston, Wheel Brake Cylinder(For Front Brake)[08.1988 - 05.1995] WU75,90,95 |
47531-36032 |
US $15.14 |
||
|
47547R
|
47547R
47547-12010 Plug, Bleeder(For Release Cylinder)[08.1988 - 05.1995] WU75,85,9#,YU6#,70 |
47547-12010 |
from US $2.32 |
||
|
47548R
|
47548R
31478-30010 Bleeder Plug Cap[08.1988 - 05.1995] WU75,85,9#,YU6#,70 |
31478-30010 |
from US $1.60 |
||
|
47550
|
47550
47550-36070 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)[08.1988 - 05.1995] WU75,90,95 |
47550-36070 |
US $90.27 |
||
|
47550C
|
47550C
90501-10759 Spring, Compression(For Front Wheel Brake Cylinder)[08.1988 - 05.1995] WU75,90,95 |
90501-10759 |
US $2.18 |
||
|
47550H
|
47550H
90101-10127 Bolt(For Front Wheel Cylinder)[08.1988 - 05.1995] WU75,85,9#,YU6#..(DM1,T3,T4)..WT |
90101-10127 |
US $1.61 |
||
|
47550Q
|
47550Q
90201-10287 Washer(For Front Wheel Cylinder)[08.1988 - 05.1995] WU75,85,9#,YU6#..(DM1,T3,T4)..WT |
90201-10287 |
US $3.05 |
||
|
47556
|
47556
47555-36020 Spring, Adjuster Lock(For Front Brake)[08.1988 - 05.1995] WU75,90,95 |
47555-36020 |
US $5.39 |
||
|
47560
|
47560
47560-36070 Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower)[08.1988 - 05.1995] WU75,90,95 |
47560-36070 |
US $90.27 |
||
|
47570
|
47570
47570-36070 Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)[08.1988 - 05.1995] WU75,90,95 |
47570-36070 |
US $90.27 |
||
|
47580
|
47580
47580-36070 Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower)[08.1988 - 05.1995] WU75,90,95 |
47580-36070 |
US $90.27 |
||
|
47653
|
47653
47651-36090
Lining, Front Brake Shoe(For Front Or Upper)
[08.1988 - 11.1991] WU75,90,95 |
47651-36090 |
— | ||
|
47654
|
47654
47651-36090
Lining, Front Brake Shoe(For Front Or Upper)
[08.1988 - 11.1991] WU75,90,95 |
47651-36090 |
— | ||
|
9014950001
|
9014950001
90149-50001 New Genuine Part |
90149-50001 |
US $1.43 |
||
|
9020114005
|
9020114005
90201-14005 Washer, Plate |
90201-14005 |
US $4.30 |
||
|
9451100500
|
9451100500
94511-00500 Washer, Cover Set, No.2 |
94511-00500 |
from US $0.24 |
||
