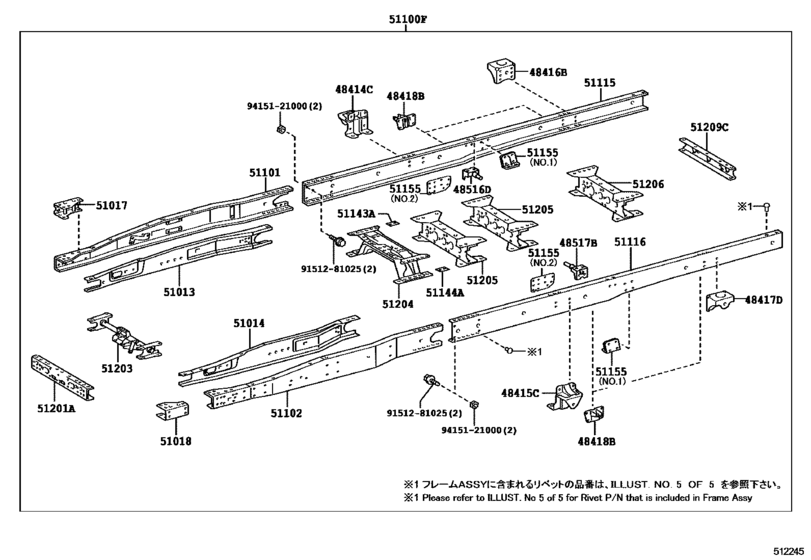

Frame ([07.2011 - ] (1107- )XKC655,XKU655) Diagram Toyota DYNA/ TOYOACE
- Year
- 2011 - 2015
- Sales region
- Japan
- Frame
- XKC655
- ENGINE
- N04C
- TRANSMISSION
- AMT
- DECK
- T3
- CAB
- SCB
- Model
- DYNA/TOYOACE
- From
- 07.2011
- To
- 05.2015
- Gear Shift Type
- 5F
- Loading Capacity
- 20T
- Fuel Induction
- DCRTK
- Building Condition
- CBU
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48414C
|
48414C
48414-37100 Bracket, Spring, No.3 Rh[07.2011 - 05.2015] XKC655..T3;XKU650..T3..CBU |
48414-37100 |
US $34.51 |
||
|
48415C
|
48415C
48415-37020 Bracket, Spring, No.3 Lh[07.2011 - 05.2015] XKC655..T3;XKU650..T3..CBU |
48415-37020 |
US $34.51 |
||
|
48416B
|
48416B
48416-37100 Bracket, Spring, No.4 Rh[07.2011 - 05.2015] XKC655..T3;XKU650..T3..CBU |
48416-37100 |
US $61.10 |
||
|
48417D
|
48417D
48416-37100 Bracket, Spring, No.4 Rh[07.2011 - 05.2015] XKC655..T3;XKU650..T3..CBU |
48416-37100 |
US $61.10 |
||
|
48418B
|
48418B
48418-36090 Bracket, Helper Spring, Front[07.2011 - 05.2015] XKC655..T3;XKU650..T3..CBU |
48418-36090 |
US $60.72 |
||
|
48516D
|
48516D
48505-37010 Bracket Sub-Assy, Rear Shock Absorber, Upper Rh[07.2011 - 05.2015] XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
48505-37010 |
US $68.10 |
||
|
48517B
|
48517B
48505-37010 Bracket Sub-Assy, Rear Shock Absorber, Upper Rh[07.2011 - 05.2015] XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
48505-37010 |
US $68.10 |
||
|
51013
|
51013
51013-37430 Channel Sub-Assy, Side Rail, Inner Front Rh[07.2011 - 05.2015] XKC655..T3;XKU605..T5..CBU |
51013-37430 |
US $180.54 |
||
|
51014
|
51014
51014-37410 Channel Sub-Assy, Side Rail, Inner Front Lh[07.2011 - 05.2015] XKC655..T3;XKU605..T5..CBU |
51014-37410 |
US $180.54 |
||
|
51017
|
51017
51017-37170 Reinforcement Sub-Assy, Side Rail, No.1 Rh[07.2011 - 05.2015] XKC655..T3;XKU605..T5..CBU |
51017-37170 |
US $84.45 |
||
|
51018
|
51018
51018-37140 Reinforcement Sub-Assy, Side Rail, No.1 Lh[07.2011 - 05.2015] XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
51018-37140 |
US $85.90 |
||
|
51100F
|
51100F
51001-3VQ40 Frame Sub-Assy[07.2011 - 05.2015] XKC655..T3 |
51001-3VQ40 |
US $5,387.20 |
||
|
51100F
|
51100F
51001-3VQ50 Frame Sub-Assy[07.2011 - 05.2015] XKC655..T3 スタビライザ−有り（フロント ＆ リヤ） |
51001-3VQ50 |
US $5,387.20 |
||
|
51101
|
51101
51101-37170 Rail, Front Frame Side, Rh[07.2011 - 05.2015] XKC655..T3;XKU605..T5..CBU |
51101-37170 |
US $605.70 |
||
|
51102
|
51102
51102-37170 Rail, Front Frame Side, Lh[07.2011 - 05.2015] XKC655..T3;XKU605..T5..CBU |
51102-37170 |
US $605.70 |
||
|
51115
|
51115
51115-37510 Rail, Frame Side, Rear Rh[07.2011 - 05.2015] XKC655..T3;XKU650..T3..CBU |
51115-37510 |
US $873.60 |
||
|
51115
|
51115
51115-37520 Rail, Frame Side, Rear Rh[07.2011 - 05.2015] XKC655..T3 スタビライザ−有り（フロント ＆ リヤ） |
51115-37520 |
US $873.60 |
||
|
51116
|
51116
51108-37420 Rail, Frame Side, Rear Lh[07.2011 - 05.2015] XKC655..T3;XKU650..T3..CBU |
51108-37420 |
US $531.44 |
||
|
51116
|
51116
51108-37430 Rail, Frame Side, Rear Lh[07.2011 - 05.2015] XKC655..T3 スタビライザ−有り（フロント ＆ リヤ） |
51108-37430 |
US $531.44 |
||
|
51143A
|
51143A
51141-37340 Reinforcement, Side Rail, Front Rh[07.2011 - 05.2015] XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
51141-37340 |
US $8.01 |
||
|
51144A
|
51144A
51141-37340 Reinforcement, Side Rail, Front Rh[07.2011 - 05.2015] XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
51141-37340 |
US $8.01 |
||
|
51155
|
51155
51155-37060 Stiffener, Frame Side Rail, Rear Rh[07.2011 - 05.2015] XKU60#..T5..20T..CBU; XKC655..T3;XKU650..T3..CBU ＮＯ．１：イラスト参照 |
51155-37060 |
US $22.42 |
||
|
51155
|
51155
51155-37080 Stiffener, Frame Side Rail, Rear Rh[07.2011 - 05.2015] XKC655..T3;XKU650..T3..CBU ＮＯ．２：イラスト参照 |
51155-37080 |
US $37.27 |
||
|
51201A
|
51201A
51211-37090 Crossmember Sub-Assy, Frame, Front[07.2011 - 05.2015] XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
51211-37090 |
US $60.12 |
||
|
51203
|
51203
51202-37220 Crossmember Sub-Assy, Frame, No.2[07.2011 - 05.2015] XKC655..T3;XKU605..T5..CBU |
51202-37220 |
US $182 |
||
|
51204
|
51204
51203-37301 Crossmember Sub-Assy, Frame, No.3[07.2011 - 05.2015] XKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU |
51203-37301 |
US $291.20 |
||
|
51205
|
51205
51204-37110 Crossmember Sub-Assy, Frame, No.4[07.2011 - 05.2015] XKC655..T3;XKU650..T3..CBU フロント |
51204-37110 |
US $163.07 |
||
|
51205
|
51205
51205-37140 Crossmember Sub-Assy, Frame, No.4[07.2011 - 05.2015] XKC655..T3;XKU650..T3..CBU リヤ |
51205-37140 |
US $142.69 |
||
|
51206
|
51206
51206-37030 Crossmember Sub-Assy, Frame, No.5[07.2011 - 05.2015] XKC655..T3;XKU650..T3..CBU |
51206-37030 |
US $133.95 |
||
|
51209C
|
51209C
51291-37040 Crossmember Sub-Assy, Frame, Rear[07.2011 - 05.2015] XKC655..T3;XKU650..T3..CBU |
51291-37040 |
US $70.91 |
||
|
9151281025
|
9151281025
91512-81025 Bolt(For Torque Arm Setting) |
91512-81025 |
from US $1.60 |
||
|
9415121000
|
9415121000
94151-21000 New Genuine Part |
94151-21000 |
US $1.31 |
