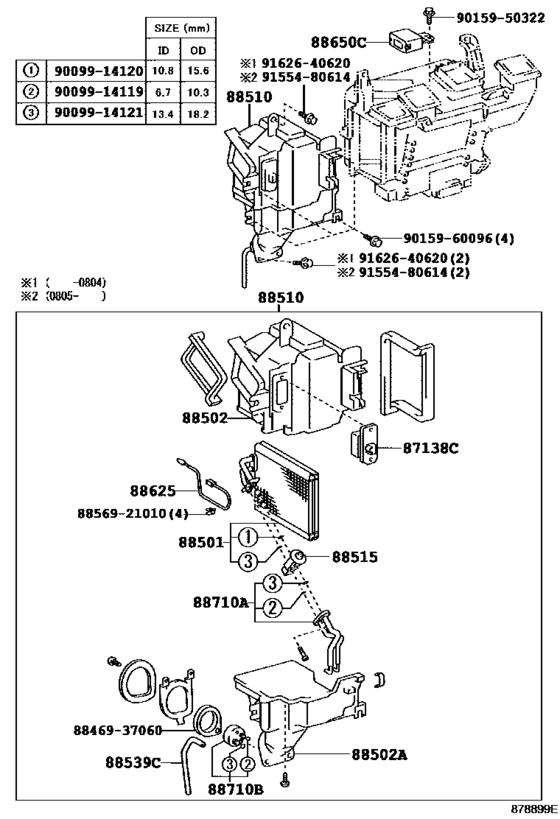

Heating & Air Conditioning - Cooler Unit ([10.2006 - ] (0610- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 2006 - 2009
- Sales region
- Japan
- Frame
- XKU424
- ENGINE
- N04C
- TRANSMISSION
- MTM
- DECK
- T3
- CAB
- SCB
- Model
- DYNA/TOYOACE
- From
- 10.2006
- To
- 08.2009
- Gear Shift Type
- 6F
- Loading Capacity
- 30T
- Fuel Induction
- DCRTJ
- Incomplete Vehicles
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87138C
|
87138C
87138-37090 Resistor, Heater Blower[10.2006 - 01.2008] XKU414,424 |
87138-37090 |
from US $22.36 |
||
|
87138C
|
87138C
87138-37220
Resistor, Blower
[02.2008 - 02.2009] XKU414,424 |
87138-37220 |
— | ||
| replacement | |||||
|
87138C
|
87138C
87138-37090 Resistor, Heater Blower[02.2008 - 02.2009] XKU414,424 |
87138-37090 |
from US $22.36 |
||
|
88501
|
88501
88501-37090 Evaporator Sub-Assy, Cooler, No.1[10.2006 - 06.2011] XKU414,424 |
88501-37090 |
US $385.32 |
||
|
88502
|
88502
88502-37060 Case Sub-Assy, Cooling Unit[10.2006 - 06.2011] XKU414,424 |
88502-37060 |
US $85.90 |
||
|
88502A
|
88502A
88502-37070 Case Sub-Assy, Cooling Unit[10.2006 - 06.2011] XKU414,424 |
88502-37070 |
US $56.78 |
||
|
88510
|
88510
88510-37230 Unit Assy, Cooler[10.2006 - 06.2011] XKU414,424 |
88510-37230 |
US $1,158.98 |
||
|
88515
|
88515
88515-60150 Valve, Cooler Expansion[10.2006 - 06.2011] XKU414,424 |
88515-60150 |
from US $99.24 |
||
|
88539C
|
88539C
88539-37060
Hose, Cooler Unit Drain, No.1
[10.2006 - 06.2011] XKU414,424 |
88539-37060 |
— | ||
|
88625
|
88625
88625-37020 Thermistor, Cooler, No.1[10.2006 - 06.2011] XKU414,424 |
88625-37020 |
US $12.23 |
||
|
88650C
|
88650C
88650-37290 Amplifier Sub-Assy, Airconditioner[10.2006 - 06.2011] XKU414,424 |
88650-37290 |
US $110.66 |
||
|
88710A
|
88710A
88710-37480 Tube Assy, Air Conditioner[10.2006 - 06.2011] XKU414,424 |
88710-37480 |
US $107.74 |
||
|
88710B
|
88710B
88710-37350
Tube Assy, Air Conditioner
[10.2006 - 06.2011] XKU414,424 |
88710-37350 |
— | ||
|
8846937060
|
8846937060
88469-37060
Switch, Pressure Control
|
88469-37060 |
— | ||
|
8856921010
|
8856921010
88569-21010
Clamp (for Cooler Relay)
|
88569-21010 |
— | ||
|
9009914119
|
9009914119
90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) |
90099-14119 |
from US $1.66 |
||
| replacement | |||||
|
9009914119
|
9009914119
90099-14119-TH O RING |
90099-14119-TH |
US $0.68 |
||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $1.83 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.56 |
||
|
9015950322
|
9015950322
90159-50322 SCREW WWASHER |
90159-50322 |
from US $0.70 |
||
|
9015960096
|
9015960096
90159-60096 New Genuine Part |
90159-60096 |
US $1.51 |
||
|
9155480614
|
9155480614
91554-80614 New Genuine Part |
91554-80614 |
US $1.25 |
||
|
9162640620
|
9162640620
91626-40620 New Genuine Part |
91626-40620 |
US $2.48 |
||
| replacement | |||||
|
9162640620
|
9162640620
91621-40616 Step Cover Bolt |
91621-40616 |
US $1.43 |
||
