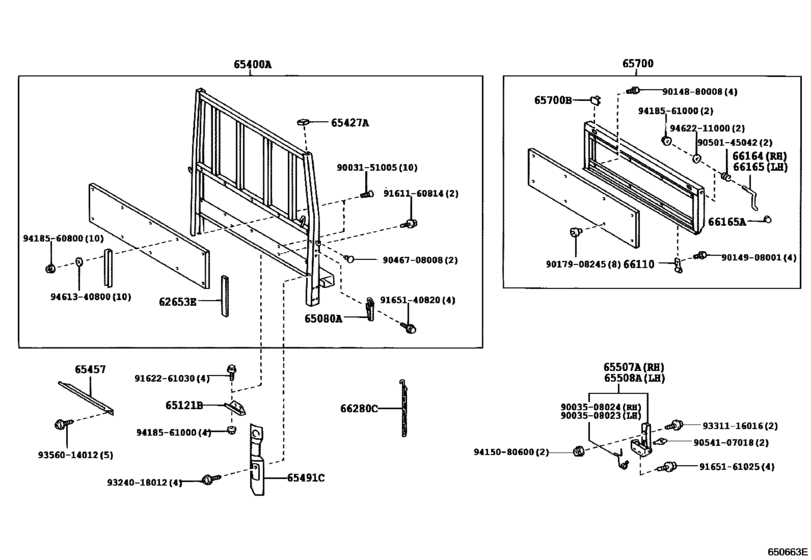

Rear Body Guard Frame & Tail Gate ([06.2004 - ] (0406- )XKU424) Diagram Toyota DYNA/ TOYOACE
- Year
- 2006 - 2009
- Sales region
- Japan
- Frame
- XKU424
- ENGINE
- N04C
- TRANSMISSION
- MTM
- DECK
- T3
- CAB
- SCB
- Model
- DYNA/TOYOACE
- From
- 10.2006
- To
- 08.2009
- Gear Shift Type
- 6F
- Loading Capacity
- 30T
- Fuel Induction
- DCRTJ
- Incomplete Vehicles
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62653E
|
62653E
62653-37060 Packing[10.2006 -] XKU424..DCRTJ |
62653-37060 |
US $2.91 |
||
|
65080A
|
65080A
65080-92701
Handle Assy, Side Gate Latch
[10.2006 -] XKU414,424 |
65080-92701 |
— | ||
| replacement | |||||
|
65080A
|
65080A
65080-92702 Handle Assy, Side Gate Latch[10.2006 -] XKU414,424 |
65080-92702 |
US $26.38 |
||
|
65121B
|
65121B
65121-37080 Bracket, Main Sill Mounting, No.1[10.2006 -] XKU424..DCRTJ |
65121-37080 |
US $20.09 |
||
|
65400A
|
65400A
65400-3V250 Guard Assy, Rear Body[10.2006 - 06.2011] XKU424 |
65400-3V250 |
US $886.70 |
||
|
65427A
|
65427A
65427-92800 Cover, Guard Frame[10.2006 -] XKU424..DCRTJ |
65427-92800 |
US $5.59 |
||
|
65457
|
65457
65043-37010 Plate, Baffle Dust Rear Body[10.2006 -] XKU424 |
65043-37010 |
US $38.15 |
||
|
65491C
|
65491C
65481-37010 Protector, Front Corner, Rh[10.2006 -] XKU414,424 右側 |
65481-37010 |
US $45.08 |
||
|
65491C
|
65491C
65482-37010 Protector, Front Corner, Lh[10.2006 -] XKU414,424 左側 |
65482-37010 |
US $38.23 |
||
|
65507A
|
65507A
65507-37030 Support Sub-Assy, Corner, Rh[10.2006 -] XKU424 |
65507-37030 |
US $40.49 |
||
|
65508A
|
65508A
65508-37030 Support Sub-Assy, Corner, Lh[10.2006 -] XKU424 |
65508-37030 |
from US $28.90 |
||
|
65700
|
65700
65700-37120 Gate Assy, Rear Body Tail[10.2006 - 06.2011] XKU424 |
65700-37120 |
US $675.58 |
||
|
65700B
|
65700B
90950-01430 Plug, Hole(For Tail Gate)[10.2006 -] XKU414,424 |
90950-01430 |
US $4.30 |
||
|
66110
|
66110
65535-37080 Hinge Assy, Tail Gate[10.2006 - 06.2011] XKU424 |
65535-37080 |
US $11.94 |
||
|
66164
|
66164
66264-37010 Handle, Tail Gate Latch, Rh[10.2006 -] XKU414,424 |
66264-37010 |
US $20.83 |
||
|
66165
|
66165
66265-37010 Handle, Tail Gate Latch, Lh[10.2006 -] XKU414,424 |
66265-37010 |
from US $20.83 |
||
|
66165A
|
66165A
66165-92701 Cap, Gate Latch Handle[10.2006 - 12.2009] XKU414,424..DCRTJ;XKU414..6FC..DCRUE |
66165-92701 |
US $4.12 |
||
|
66280C
|
66280C
66280-37020 Chain Assy, Tail Gate[10.2006 -] XKU414,424 |
66280-37020 |
US $42.84 |
||
|
9003151005
|
9003151005
90031-51005 New Genuine Part |
90031-51005 |
US $1.61 |
||
|
9003508023
|
9003508023
90035-08023 Spring, Tail Gate Check Ball |
90035-08023 |
US $2.34 |
||
|
9003508024
|
9003508024
90035-08024 Spring, Tail Gate Check Ball |
90035-08024 |
US $2.48 |
||
|
9014880008
|
9014880008
90148-80008 Bolt |
90148-80008 |
US $1.97 |
||
|
9014908001
|
9014908001
90149-08001 New Genuine Part |
90149-08001 |
US $1.08 |
||
|
9017908245
|
9017908245
90179-08245 New Genuine Part |
90179-08245 |
US $2.15 |
||
|
9046708008
|
9046708008
90467-08008 Clip, Step Plate Cover |
90467-08008 |
from US $2.51 |
||
|
9050145042
|
9050145042
90501-45042 SPRING COMPRESSION |
90501-45042 |
from US $3.58 |
||
|
9054107018
|
9054107018
90541-07018 Cushion, Tail Gate Side |
90541-07018 |
US $1.97 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9162261030
|
9162261030
91622-61030 New Genuine Part |
91622-61030 |
US $1.31 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $0.96 |
||
|
9165161025
|
9165161025
91651-61025 Bolt with washer |
91651-61025 |
from US $1.52 |
||
|
9324018012
|
9324018012
93240-18012 New Genuine Part |
93240-18012 |
US $1.08 |
||
|
9331116016
|
9331116016
93311-16016 SCREW |
93311-16016 |
US $2.15 |
||
|
9356014012
|
9356014012
93560-14012 SCREW |
93560-14012 |
US $1.25 |
||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.66 |
||
|
9418560800
|
9418560800
94185-60800 NUT |
94185-60800 |
from US $0.82 |
||
|
9418561000
|
9418561000
94185-61000 NUTLOCK |
94185-61000 |
from US $0.96 |
||
|
9461340800
|
9461340800
94613-40800 New Genuine Part |
94613-40800 |
US $1.43 |
||
|
9462211000
|
9462211000
94622-11000 WASHER |
94622-11000 |
from US $1.40 |
||
