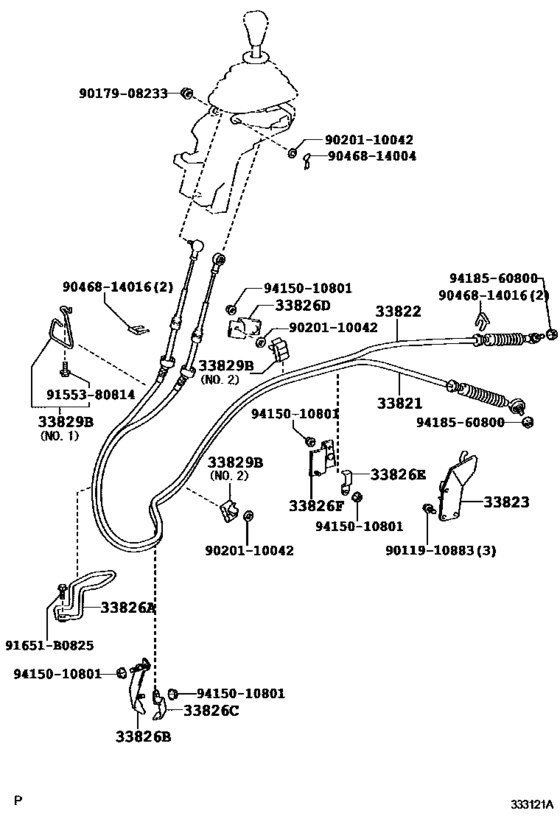

Shift Lever & Retainer ([10.2006 - ] (0610- )6F) Diagram Toyota DYNA/ TOYOACE
- Year
- 2006 - 2009
- Sales region
- Japan
- Frame
- XKU424
- ENGINE
- N04C
- TRANSMISSION
- MTM
- DECK
- T3
- CAB
- SCB
- Model
- DYNA/TOYOACE
- From
- 10.2006
- To
- 08.2009
- Gear Shift Type
- 6F
- Loading Capacity
- 30T
- Fuel Induction
- DCRTJ
- Incomplete Vehicles
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33821
|
33821
33820-37K70 Cable Transmission Control Shift (For Floor Shift)[10.2006 - 11.2009] XKU414,424..6F |
33820-37K70 |
US $334.88 |
||
| replacement | |||||
|
33821
|
33821
33820-37K71 Cable Transmission Control Shift (For Floor Shift)[10.2006 - 11.2009] XKU414,424..6F |
33820-37K71 |
US $334.88 |
||
|
33822
|
33822
33830-37360 Cable Transmission Control Select (For Floor Shift)[10.2006 - 11.2009] XKU414,424..6F |
33830-37360 |
US $262.08 |
||
| replacement | |||||
|
33822
|
33822
33830-37361 Cable Transmission Control Select (For Floor Shift)[10.2006 - 11.2009] XKU414,424..6F |
33830-37361 |
US $262.08 |
||
|
33823
|
33823
33823-37840 Bracket, Transmission Control Cable, No.1[10.2006 -] XKU414,424..6F |
33823-37840 |
US $34.51 |
||
|
33826A
|
33826A
33826-37A40 Bracket, Transmission Control Cable, No.2[10.2006 -] XKU414,424..6F |
33826-37A40 |
US $14.85 |
||
|
33826B
|
33826B
33826-37A50 Bracket, Transmission Control Cable, No.2[10.2006 -] XKU414,424 |
33826-37A50 |
US $10.92 |
||
|
33826C
|
33826C
33826-37580 Bracket, Transmission Control Cable, No.2[10.2006 -] XKU414,424 |
33826-37580 |
US $3.64 |
||
|
33826D
|
33826D
33827-37160 Bracket, Transmission Control Cable, No.5[10.2006 -] XKU414,424 |
33827-37160 |
US $8.30 |
||
|
33826E
|
33826E
33826-37580 Bracket, Transmission Control Cable, No.2[10.2006 -] XKU414,424 |
33826-37580 |
US $3.64 |
||
|
33826F
|
33826F
33827-37170 Bracket, Transmission Control Cable, No.6[10.2006 -] XKU414,424 |
33827-37170 |
US $13.25 |
||
|
33829B
|
33829B
33829-37210 Bracket, Transmission Control Cable, No.2[10.2006 -] XKU414,424..6F ＮＯ．２ |
33829-37210 |
US $4.48 |
||
|
33829B
|
33829B
33829-37280 Clamp, Transmission Control Cable[10.2006 -] XKU414,424..6F ＮＯ．１ |
33829-37280 |
US $4.08 |
||
|
91651B0825
|
91651B0825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.84 |
||
|
9011910883
|
9011910883
90119-10883 New Genuine Part |
90119-10883 |
US $1.43 |
||
|
9017908233
|
9017908233
90179-08233 NUT |
90179-08233 |
from US $1.31 |
||
|
9020110042
|
9020110042
90201-10042 Washer, Plate (For Transfer Control Cable) |
90201-10042 |
US $1.61 |
||
|
9046814004
|
9046814004
90468-14004 Union, Auxiliary Fuel Band |
90468-14004 |
from US $0.66 |
||
|
9046814016
|
9046814016
90468-14016 CLIP |
90468-14016 |
from US $1.17 |
||
|
9155380814
|
9155380814
91553-80814 BOLT FLANGE |
91553-80814 |
US $1.43 |
||
|
9415010801
|
9415010801
94150-10801 New Genuine Part |
94150-10801 |
US $1.79 |
||
|
9418560800
|
9418560800
94185-60800 NUT |
94185-60800 |
from US $0.82 |
||
