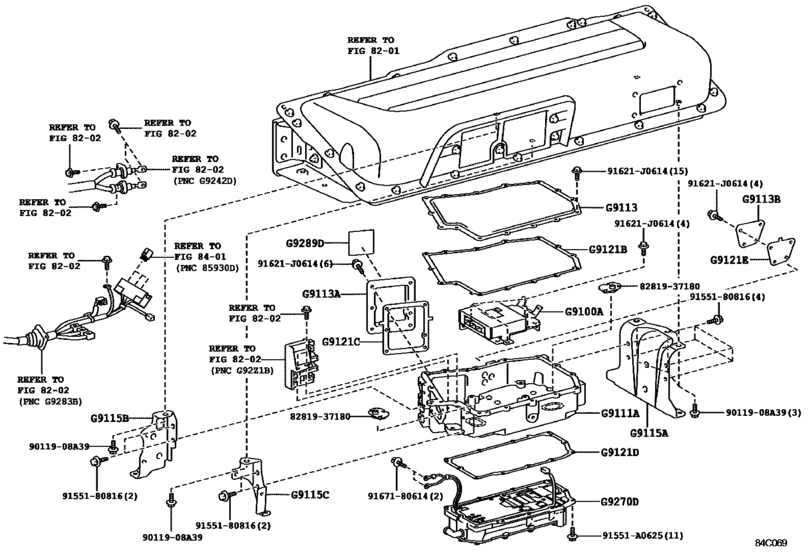

Hv Control Computer ([07.2011 - ] (1107- )) Diagram Toyota DYNA/ TOYOACE
- Year
- 2011 - 2017
- Sales region
- Japan
- Frame
- XKU600
- ENGINE
- N04C
- TRANSMISSION
- AMT
- DECK
- T5
- CAB
- SCB
- Model
- DYNA/TOYOACE
- From
- 07.2011
- To
- 05.2017
- Gear Shift Type
- 5F
- Loading Capacity
- 20T
- Fuel Induction
- DCRTK
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
91551A0625
|
91551A0625
91551-A0625 Bolt(For Cylinder Head Cover) |
91551-A0625 |
US $1.08 |
||
|
91621J0614
|
91621J0614
91621-J0614 BOLT W-WASHER |
91621-J0614 |
from US $0.90 |
||
|
9011908A39
|
9011908A39
90119-08A39 BOLT WWASHER |
90119-08A39 |
US $1.43 |
||
|
8281937180
|
8281937180
82819-37180 Grommet, Wiring Harness |
82819-37180 |
US $2.77 |
||
|
9155180816
|
9155180816
91551-80816 Bolt(For Manual Transmission Oil Separator) |
91551-80816 |
from US $0.99 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.64 |
||
|
G9100A
|
G9100A
G9100-37020 Controller Assy, Ev Unit[07.2011 - 04.2012] XKC605,645,655,XKU60#,64#,65# |
G9100-37020 |
US $596.96 |
||
| replacement | |||||
|
G9100A
|
G9100A
G9100-37029 Controller Assy, Ev Unit[07.2011 - 04.2012] XKC605,645,655,XKU60#,64#,65# |
G9100-37029 |
US $596.96 |
||
|
G9100A
|
G9100A
G9100-37021 Controller Assy, Ev Unit[05.2012 - 07.2012] XKC605,645,655,XKU60#,64#,65# |
G9100-37021 |
US $596.96 |
||
| replacement | |||||
|
G9100A
|
G9100A
G9100-37029 Controller Assy, Ev Unit[05.2012 - 07.2012] XKC605,645,655,XKU60#,64#,65# |
G9100-37029 |
US $596.96 |
||
|
G9100A
|
G9100A
G9100-37022 Controller Assy, Ev Unit[08.2012 - 12.2012] XKC605,645,655,XKU60#,64#,65# |
G9100-37022 |
US $596.96 |
||
| replacement | |||||
|
G9100A
|
G9100A
G9100-37029 Controller Assy, Ev Unit[08.2012 - 12.2012] XKC605,645,655,XKU60#,64#,65# |
G9100-37029 |
US $596.96 |
||
|
G9100A
|
G9100A
G9100-37023 Controller Assy, Ev Unit[01.2013 - 10.2013] XKC605,645,655,XKU60#,64#,65# |
G9100-37023 |
US $596.96 |
||
| replacement | |||||
|
G9100A
|
G9100A
G9100-37029 Controller Assy, Ev Unit[01.2013 - 10.2013] XKC605,645,655,XKU60#,64#,65# |
G9100-37029 |
US $596.96 |
||
|
G9100A
|
G9100A
G9100-37024 Controller Assy, Ev Unit[11.2013 - 02.2014] XKC605,645,655,XKU60#,64#,65# |
G9100-37024 |
US $596.96 |
||
| replacement | |||||
|
G9100A
|
G9100A
G9100-37029 Controller Assy, Ev Unit[11.2013 - 02.2014] XKC605,645,655,XKU60#,64#,65# |
G9100-37029 |
US $596.96 |
||
|
G9100A
|
G9100A
G9100-37025 Controller Assy, Ev Unit[03.2014 - 06.2014] XKC605,645,655,XKU60#,64#,65# |
G9100-37025 |
US $596.96 |
||
| replacement | |||||
|
G9100A
|
G9100A
G9100-37029 Controller Assy, Ev Unit[03.2014 - 06.2014] XKC605,645,655,XKU60#,64#,65# |
G9100-37029 |
US $596.96 |
||
|
G9100A
|
G9100A
G9100-37026 Controller Assy, Ev Unit[07.2014 - 04.2015] XKC605,645,655,XKU60#,64#,65# |
G9100-37026 |
US $596.96 |
||
| replacement | |||||
|
G9100A
|
G9100A
G9100-37029 Controller Assy, Ev Unit[07.2014 - 04.2015] XKC605,645,655,XKU60#,64#,65# |
G9100-37029 |
US $596.96 |
||
|
G9100A
|
G9100A
G9100-37027 Controller Assy, Ev Unit[05.2015 - 09.2015] XKC605,645,655,XKU60#,64#,65# |
G9100-37027 |
US $596.96 |
||
| replacement | |||||
|
G9100A
|
G9100A
G9100-37029 Controller Assy, Ev Unit[05.2015 - 09.2015] XKC605,645,655,XKU60#,64#,65# |
G9100-37029 |
US $596.96 |
||
|
G9100A
|
G9100A
G9100-37028 Controller Assy, Ev Unit[10.2015 - 04.2016] XKC605,645,655,XKU60#,64#,65# |
G9100-37028 |
US $596.96 |
||
| replacement | |||||
|
G9100A
|
G9100A
G9100-37029 Controller Assy, Ev Unit[10.2015 - 04.2016] XKC605,645,655,XKU60#,64#,65# |
G9100-37029 |
US $596.96 |
||
|
G9100A
|
G9100A
G9100-37029 Controller Assy, Ev Unit[05.2016 - 05.2017] XKC605,645,655,XKU60#,64#,65# |
G9100-37029 |
US $596.96 |
||
|
G9111A
|
G9111A
G9111-37021 Case, Ev Unit Controller[07.2011 - 05.2017] XKC605,645,655,XKU60#,64#,65# |
G9111-37021 |
US $189.28 |
||
|
G9113
|
G9113
G9113-37011 Cover, Electric Vehicle Unit Controller, Upper[07.2011 - 05.2017] XKC605,645,655,XKU60#,64#,65# |
G9113-37011 |
US $37.86 |
||
|
G9113A
|
G9113A
G9113-37021 Cover, Electric Vehicle Unit Controller, Upper, No.2[07.2011 - 05.2017] XKC605,645,655,XKU60#,64#,65# |
G9113-37021 |
US $7.28 |
||
|
G9113B
|
G9113B
G9113-37030 Cover, Electric Vehicle Unit Controller, Upper, No.3[07.2011 - 05.2017] XKC605,645,655,XKU60#,64#,65# |
G9113-37030 |
US $5.68 |
||
|
G9115A
|
G9115A
G9115-37010 Bracket, Electric Vehicle Unit Controller[07.2011 - 05.2017] XKC605,645,655,XKU60#,64#,65# |
G9115-37010 |
US $37.86 |
||
|
G9115B
|
G9115B
G9115-37020 Bracket, Electric Vehicle Unit Controller, No.2[07.2011 - 05.2017] XKC605,645,655,XKU60#,64#,65# |
G9115-37020 |
US $14.56 |
||
|
G9115C
|
G9115C
G9115-37030 Bracket, Electric Vehicle Unit Controller, No.3[07.2011 - 05.2017] XKC605,645,655,XKU60#,64#,65# |
G9115-37030 |
US $13.10 |
||
|
G9121B
|
G9121B
G9121-37010 Gasket, Electric Vehicle Unit Controller Cover[07.2011 - 05.2017] XKC605,645,655,XKU60#,64#,65# |
G9121-37010 |
US $39.31 |
||
|
G9121C
|
G9121C
G9121-37020 Gasket, Electric Vehicle Unit Controller Cover, No.2[07.2011 - 05.2017] XKC605,645,655,XKU60#,64#,65# |
G9121-37020 |
US $7.28 |
||
|
G9121D
|
G9121D
G9121-37040 Gasket, Electric Vehicle Unit Controller Cover, No.3[07.2011 - 05.2017] XKC605,645,655,XKU60#,64#,65# |
G9121-37040 |
US $18.93 |
||
|
G9121E
|
G9121E
G9121-37030 Gasket, Electric Vehicle Unit Controller Cover, No.4[07.2011 - 05.2017] XKC605,645,655,XKU60#,64#,65# |
G9121-37030 |
US $4.66 |
||
|
G9270D
|
G9270D
G9270-37010 Converter Assy, Ev[07.2011 - 05.2017] XKC605,645,655,XKU60#,64#,65# |
G9270-37010 |
US $1,019.20 |
||
|
G9289D
|
G9289D
G9289-37040 Label, Battery Caution[07.2011 - 05.2017] XKC605,645,655,XKU60#,64#,65# |
G9289-37040 |
US $3.79 |
||
