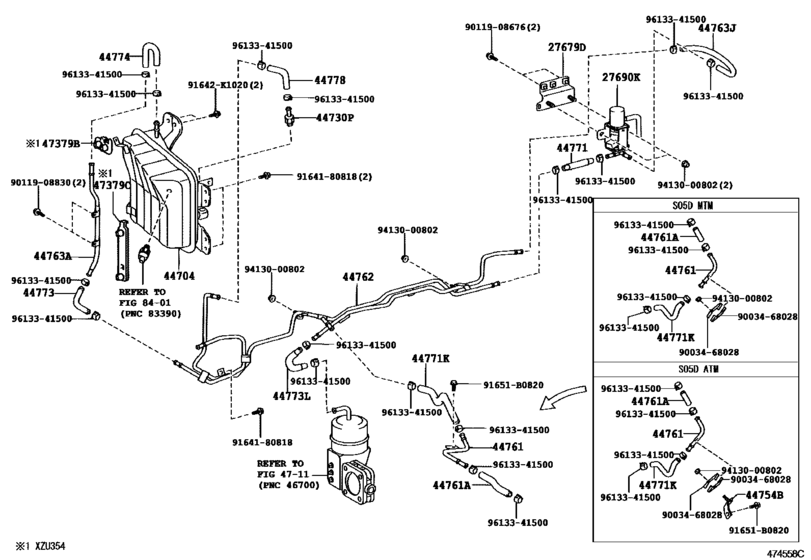

Brake Booster & Vacuum Tube ([06.2004 - ] (0406- )XZU301,306..IV6 ; (0406- )XZU301.. 20T..IV3..1NO ; (0406- )XZU308.. SCB..T4..5F..IV3 ; (0406- )XZU304,305,354..20T,40T..1NO) Diagram Toyota DYNA/ TOYOACE
- Year
- 2004 - 2006
- Sales region
- Japan
- Frame
- XZU301
- ENGINE
- S05D
- TRANSMISSION
- ATM
- DECK
- DM6
- CAB
- SCB
- Model
- DYNA/TOYOACE
- From
- 06.2004
- To
- 10.2006
- Gear Shift Type
- 6FC
- Body Shape
- 1NO
- Loading Capacity
- 20T
- Fuel Induction
- DSL
- Building Condition
- IV6
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27679D
|
27679D
27679-78041 Bracket, Power Take-Off Solenoid[06.2004 -] S05D..XZU301..IV6;S05D..XZU341..T4..30T..IV3;N04C,S05D..XZU301,344,346..SCB..(DM6, T4)..(DSL,DSLL)..IV3;N04C,S05D..XZU304,305,306,308,336,354..SCB..(DM6,T3,T4)..(20T ,40T)..(IV3,IV6) |
27679-78041 |
US $9.76 |
||
|
27690K
|
27690K
27690-78032 Solenoid Assy, Power Take-Off[06.2004 -] S05D..XZU301,306..IV6;S05D..XZU301..20T..IV3..1NO;N04C..XZU304,305,354,388..(DM6,T 3)..(20T,40T);N04C,S05D..XZU304,306,308,334,346,378..DCB,VAN |
27690-78032 |
US $154.16 |
||
|
44704
|
44704
44704-37170
Reservoir Sub-Assy, Vacuum
[06.2004 - 08.2006] XZU301,306..IV6;XZU301..20T..IV3..1NO;XZU304,305,354..(20T,40T)..1NO; XZU336..T2..IV3;XZU336..6FC..IV3;XZU341..T4..30T..IV3;XZU304..20T..DSLL..IV3..4NO; XZU301,306,344,346..SCB..T4..(DSL,DSLL)..IV3 ﾎﾞﾄﾙｶ- ｼﾖｳ; XZU301..6FC..20T..IV3..4N |
44704-37170 |
— | ||
| replacement | |||||
|
44704
|
44704
44704-37171 Reservoir Sub-Assy, Vacuum[06.2004 - 08.2006] XZU301,306..IV6;XZU301..20T..IV3..1NO;XZU304,305,354..(20T,40T)..1NO; XZU336..T2..IV3;XZU336..6FC..IV3;XZU341..T4..30T..IV3;XZU304..20T..DSLL..IV3..4NO; XZU301,306,344,346..SCB..T4..(DSL,DSLL)..IV3 ﾎﾞﾄﾙｶ- ｼﾖｳ; XZU301..6FC..20T..IV3..4N |
44704-37171 |
US $192.19 |
||
|
44704
|
44704
44704-37171 Reservoir Sub-Assy, Vacuum[08.2006 - 05.2007] XZU301,306..IV6;XZU301..20T..IV3..1NO;XZU304,305,354..(20T,40T)..1NO |
44704-37171 |
US $192.19 |
||
|
44730P
|
44730P
44730-60050 Valve Assy, Vacuum Check(For Clutch Vacuum)[06.2004 - 07.2006] BZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..SCB |
44730-60050 |
from US $22.85 |
||
|
44754B
|
44754B
44754-37190 Bracket, Vacuum Tube[06.2004 - 10.2006] XZU301,306,331,336,341,346,351..6FC |
44754-37190 |
US $6.84 |
||
|
44761
|
44761
44761-37340 Tube, Intake Manifold Or Vacuum Pump To Connector[06.2004 - 10.2006] XZU301,306,311,321,331,336,341,346,351 |
44761-37340 |
US $9.46 |
||
|
44761A
|
44761A
90445-17044 Hose, Vacuum Pump[06.2004 - 10.2006] XZU301,306,311,321,331,336,341,346,351 |
90445-17044 |
US $4.19 |
||
|
44762
|
44762
44702-37060 Tube, Booster Vacuum[06.2004 -] XZU301,306..IV6;XZU301,304,305..20T..IV3..1NO |
44702-37060 |
US $113.57 |
||
|
44763A
|
44763A
44763-37570 Tube, Hose To Hose, No.1[06.2004 -] XZU301,306..IV6;XZU301..20T..IV3..1NO;XZU304,305,354..(20T,40T)..1NO |
44763-37570 |
US $23.88 |
||
|
44763J
|
44763J
44771-37230 Hose, Vacuum Brake[06.2004 - 05.2007] XZU301,306..IV6;XZU301..20T..IV3..1NO;XZU304,305,354..(20T,40T)..1NO |
44771-37230 |
US $12.23 |
||
|
44771
|
44771
44776-37180 Hose, Vacuum Tube Connector[06.2004 - 05.2007] XZU301,306..IV6;XZU301..20T..IV3..1NO;XZU304,305,354..(20T,40T)..1NO |
44776-37180 |
US $8.59 |
||
|
44771K
|
44771K
44771-37630 Hose, Vacuum Tube To Vacuum Pump[06.2004 - 10.2006] XZU301,306,331,336,341,346 |
44771-37630 |
US $11.36 |
||
|
44773
|
44773
44778-37060 Hose, Solenoid To Vacuum Tube[06.2004 - 05.2007] BZU300..DM6,T3;BZU300..T4..LPG;XZU304,306,308,334,338,346,348,378,388..SCB;BZU340, RZU30#,340,XZU301,305,31#,321,331,336,341,344,35#,368..(5F,6FC)..(DCRL,DSL,DSLL,EF I,LPG) |
44778-37060 |
US $9.86 |
||
|
44773L
|
44773L
44771-37410 Hose, Vacuum Tube Connector[06.2004 - 05.2007] XZU301,306..IV6;XZU301..20T..IV3..1NO;XZU304,305,354..(20T,40T)..1NO |
44771-37410 |
US $7.28 |
||
|
44774
|
44774
44771-37200 Hose, Vacuum Tube Connector, No.1[06.2004 - 05.2007] XZU30#,31#,321,33#,34#,35#,368,378,388..SCB |
44771-37200 |
US $24.53 |
||
|
44778
|
44778
44778-37060 Hose, Solenoid To Vacuum Tube[06.2004 - 05.2007] BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV6,IV7 |
44778-37060 |
US $9.86 |
||
|
91642K1020
|
91642K1020
91642-K1020 BOLT WWASHER |
91642-K1020 |
US $3.05 |
||
|
91651B0820
|
91651B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.99 |
||
| replacement | |||||
|
91651B0820
|
91651B0820
90080-11347 New Genuine Part |
90080-11347 |
US $3.11 |
||
|
9003468028
|
9003468028
90034-68028 New Genuine Part |
90034-68028 |
US $7.88 |
||
|
9011908676
|
9011908676
90119-08676 BOLT WWASHER |
90119-08676 |
US $2.15 |
||
|
9011908830
|
9011908830
90119-08830 Bolt(For Oil Receiver Pipe) |
90119-08830 |
US $1.79 |
||
| replacement | |||||
|
9011908830
|
9011908830
47327-60232 Tube, Rear Brake, No.7 |
47327-60232 |
US $16.13 |
||
|
9164180818
|
9164180818
91641-80818 BOLT WWASHER |
91641-80818 |
from US $0.78 |
||
|
9413000802
|
9413000802
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
| replacement | |||||
|
9413000802
|
9413000802
90170-A0001
New Genuine Part
|
90170-A0001 |
— | ||
|
9613341500
|
9613341500
96133-41500 Clamp Or Clip(For Air Hose, No.5) |
96133-41500 |
from US $2.32 |
||
