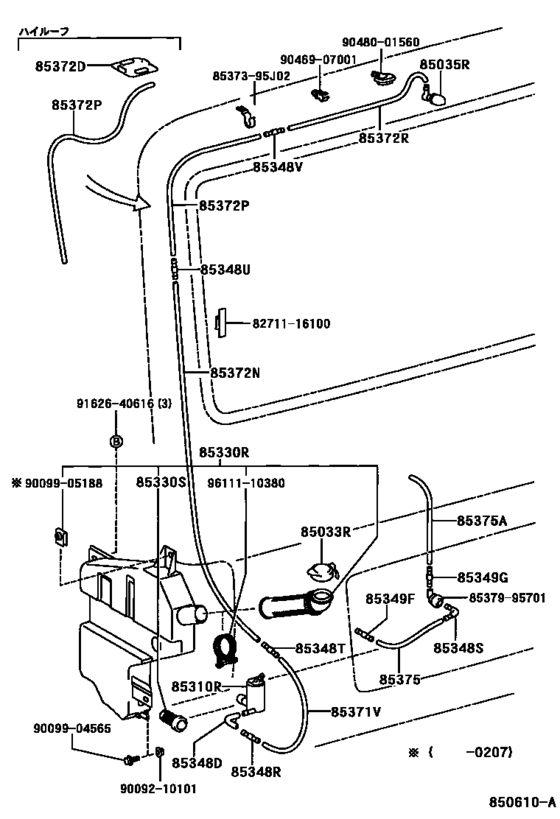

Rear Washer ([06.2004 - 10.2006] (9905- )BU306,XZU307..VAN ; (0406-0610)VAN) Diagram Toyota DYNA/ TOYOACE
- Year
- 2004 - 2006
- Sales region
- Japan
- Frame
- XZU308
- ENGINE
- N04C
- TRANSMISSION
- ATM
- DECK
- 03S
- CAB
- VAN
- Model
- DYNA/TOYOACE
- From
- 06.2004
- To
- 10.2006
- Gear Shift Type
- 4FC
- Body Shape
- 4NO
- Loading Capacity
- 20T
- Fuel Induction
- DSL
- Building Condition
- CBU
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85033R
|
85033R
85332-95J03
Cap Assy, Rear Washer
[06.2004 - 10.2006] XZU306,308..VAN |
85332-95J03 |
— | ||
|
85035R
|
85035R
85035-95J08
Nozzle Sub-Assy, Rear Washer
[06.2004 - 10.2006] XZU306,308..VAN |
85035-95J08 |
— | ||
|
85035R
|
85035R
85035-95J09
Nozzle Sub-Assy, Rear Washer
[06.2004 - 10.2006] XZU306,308..VAN ｱﾘ(ﾊｲ ﾙ-ﾌ) |
85035-95J09 |
— | ||
|
85310R
|
85310R
85310-90B00 Motor And Pump Assy, Windshield Washer[06.2004 - 10.2006] XZU306,308..VAN |
85310-90B00 |
US $47.52 |
||
|
85330R
|
85330R
85330-95J08
Jar Assy, Rear Washer
[06.2004 - 10.2006] XZU306,308..VAN |
85330-95J08 |
— | ||
|
85330S
|
85330S
90099-32089 Bush, Headlamp Cleaner Washer Jar[06.2004 - 10.2006] XZU306,308..VAN |
90099-32089 |
from US $0.98 |
||
| replacements | |||||
|
85330S
|
85330S
90099320891
Grommet
[06.2004 - 10.2006] XZU306,308..VAN |
90099320891 |
— | ||
|
85330S
|
85330S
90068-32002 Bush, Windshield Washer Jar[06.2004 - 10.2006] XZU306,308..VAN |
90068-32002 |
US $7.46 |
||
|
85348D
|
85348D
85355-14481 Joint, Windshield Washer Elbow, No.1[06.2004 - 10.2006] XZU306,308..VAN |
85355-14481 |
US $0.98 |
||
|
85348R
|
85348R
85349-89122 Valve Sub-Assy, Washer[06.2004 - 10.2006] XZU306,308..VAN |
85349-89122 |
from US $1.25 |
||
|
85348S
|
85348S
85355-20200 Joint, Windshield Washer Hose, No.1[06.2004 - 10.2006] XZU306,308..VAN |
85355-20200 |
from US $0.98 |
||
|
85348T
|
85348T
85349-89122 Valve Sub-Assy, Washer[06.2004 - 10.2006] XZU306,308..VAN |
85349-89122 |
from US $1.25 |
||
|
85348U
|
85348U
85349-89122 Valve Sub-Assy, Washer[06.2004 - 10.2006] XZU306,308..VAN |
85349-89122 |
from US $1.25 |
||
|
85348V
|
85348V
85349-89122 Valve Sub-Assy, Washer[06.2004 - 10.2006] XZU306,308..VAN |
85349-89122 |
from US $1.25 |
||
|
85348V
|
85348V
85355-32020
Joint, Rear Washer Hose, No.1
[06.2004 - 10.2006] XZU306,308..VAN ｱﾘ(ﾊｲ ﾙ-ﾌ) |
85355-32020 |
— | ||
|
85349F
|
85349F
85349-89122 Valve Sub-Assy, Washer[06.2004 - 10.2006] XZU306,308..VAN |
85349-89122 |
from US $1.25 |
||
|
85349G
|
85349G
85349-89122 Valve Sub-Assy, Washer[06.2004 - 10.2006] XZU306,308..VAN |
85349-89122 |
from US $1.25 |
||
|
85371V
|
85371V
90099-33299 Joint, Windshield Washer Elbow, No.2[06.2004 - 10.2006] XZU306,308..VAN ＊Ｈ，Ｌ＝１７０ |
90099-33299 |
from US $4.37 |
||
|
85372D
|
85372D
90950-01724-B1 Grommet, Rear Washer Hose[06.2004 - 10.2006] XZU306,308..VAN LT. BLUISH GRAY,TRIM1# |
90950-01724-B1 |
US $7.28 |
||
|
85372N
|
85372N
90446-06006 Hose, Windshield Washer (From Motor To Joint)[06.2004 - 10.2006] XZU306,308..VAN ＊Ｈ，Ｌ＝１２１０ |
90446-06006 |
from US $6.36 |
||
|
85372N
|
85372N
90446-06013 Hose, Windshield Washer (From Motor To Joint)[06.2004 - 10.2006] XZU306,308..VAN ＊Ｈ，Ｌ＝１０００ |
90446-06013 |
from US $0.70 |
||
|
85372P
|
85372P
90445-08269 Hose, Rear Washer (From Joint To Joint), No.2[06.2004 - 10.2006] XZU306,308..VAN 長さ＝２７０ |
90445-08269 |
US $4.37 |
||
|
85372P
|
85372P
90445-08270 Hose, Rear Washer (From Joint To Joint), No.2[06.2004 - 10.2006] XZU306,308..VAN 長さ＝６６０,ｱﾘ(ﾊｲ ﾙ-ﾌ) |
90445-08270 |
US $12.38 |
||
|
85372R
|
85372R
90099-33080 Hose, Windshield Washer (From Motor To Joint)[06.2004 - 10.2006] XZU306,308..VAN ＊Ｈ，Ｌ＝３９０ |
90099-33080 |
from US $5.38 |
||
|
85375
|
85375
90446-06013 Hose, Windshield Washer (From Motor To Joint)[06.2004 - 10.2006] XZU306,308..VAN ＊Ｈ，L＝２８０ |
90446-06013 |
from US $0.70 |
||
|
85375A
|
85375A
90099-33299 Joint, Windshield Washer Elbow, No.2[06.2004 - 10.2006] XZU306,308..VAN ＊Ｈ，Ｌ＝４２０ |
90099-33299 |
from US $4.37 |
||
|
8537395J02
|
8537395J02
85373-95J02 Hose, Windshield Washer (from Joint To Nozzle) |
85373-95J02 |
US $1.65 |
||
|
8271116100
|
8271116100
82711-16100 Wire, Fuse To Fuse(for Combustion Heater) |
82711-16100 |
US $5.24 |
||
|
8537995701
|
8537995701
85379-95701 Joint |
85379-95701 |
US $1.02 |
||
|
9009210101
|
9009210101
90092-10101
Nut (For Front Wiper Arm Setting)
|
90092-10101 |
— | ||
|
9009904565
|
9009904565
90099-04565
New Genuine Part
|
90099-04565 |
— | ||
|
9009905188
|
9009905188
90099-05188
New Genuine Part
|
90099-05188 |
— | ||
|
9046907001
|
9046907001
90469-07001 New Genuine Part |
90469-07001 |
US $1.25 |
||
|
9048001560
|
9048001560
90480-01560 Grommet(For Heater Control Cable) |
90480-01560 |
US $1.75 |
||
|
9162640616
|
9162640616
91626-40616 New Genuine Part |
91626-40616 |
US $1.38 |
||
|
9611110380
|
9611110380
96111-10380 Clamp Or Clip, Hose(For Radiator Inlet) |
96111-10380 |
US $2.51 |
||
