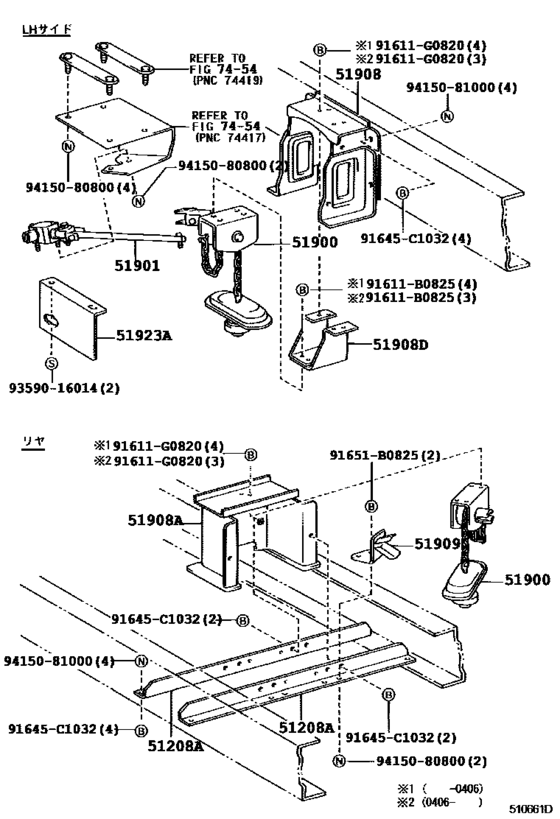

Spare Wheel Carrier ([11.2000 - 10.2006] ｹﾞﾝｷﾝﾕｿｳｼﾔ (0011-0610)VAN) Diagram Toyota DYNA/ TOYOACE
- Year
- 2004 - 2006
- Sales region
- Japan
- Frame
- XZU308
- ENGINE
- N04C
- TRANSMISSION
- ATM
- DECK
- 03S
- CAB
- VAN
- Model
- DYNA/TOYOACE
- From
- 06.2004
- To
- 10.2006
- Gear Shift Type
- 4FC
- Body Shape
- 4NO
- Loading Capacity
- 20T
- Fuel Induction
- DSL
- Building Condition
- CBU
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51208A
|
51208A
51261-37020 Member Sub-Assy, Spare Wheel Set[06.2004 - 10.2006] XZU368..T4..20T..IV3;XZU304..(T3,T4)..(DCRL,DSL);BZU300,XZU301,346,348..(T3,T4)..2 0T;RZU300,XZU304..(T2,T4)..20T..(DSLL,EFI);BZU300,RZU300,XZU301,304..T3..(DSL,DSLL ,EFI,LPG)..(CBU,IV3);BZU340,RZU301,340,XZU306,308,33#,341,344,378,388 |
51261-37020 |
US $40.62 |
||
|
51900
|
51900
51900-37100 Carrier Assy, Spare Wheel[05.2005 - 10.2006] XZU308..03S..4FC リヤ |
51900-37100 |
from US $74.59 |
||
|
51900
|
51900
51900-37150 Carrier Assy, Spare Wheel[05.2005 - 10.2006] XZU308..03S..4FC ｱﾘ(ｹﾞﾝｷﾝ ﾕｿｳｼﾔ),左側 |
51900-37150 |
US $87.36 |
||
|
51901
|
51901
51901-37030 Rod Sub-Assy, Spare Wheel Carrier[05.2005 - 10.2006] XZU308..03S..4FC |
51901-37030 |
US $35.38 |
||
|
51908
|
51908
51908-37330 Bracket Sub-Assy, Spare Wheel Carrier[06.2004 - 10.2006] XZU306,308..VAN |
51908-37330 |
US $103.38 |
||
|
51908A
|
51908A
51908-37320 Bracket Sub-Assy, Spare Wheel Mounting[06.2004 - 04.2005] XZU306,308..VAN |
51908-37320 |
US $165.98 |
||
| replacement | |||||
|
51908A
|
51908A
51908-37321 Bracket Sub-Assy, Spare Wheel Mounting[06.2004 - 04.2005] XZU306,308..VAN |
51908-37321 |
US $139.78 |
||
|
51908A
|
51908A
51908-37321 Bracket Sub-Assy, Spare Wheel Mounting[05.2005 - 10.2006] XZU306,308..VAN |
51908-37321 |
US $139.78 |
||
|
51908D
|
51908D
51908-37340 Bracket Sub-Assy, Spare Wheel Carrier, Rh[05.2005 - 10.2006] XZU308..03S..4FC |
51908-37340 |
US $49.50 |
||
|
51909
|
51909
51909-37010 Hinge Sub-Assy, Spare Wheel Carrier[05.2005 - 10.2006] XZU308..03S..4FC |
51909-37010 |
US $16.31 |
||
|
51923A
|
51923A
51923-37010 Guide, Spare Whell Carrier Handle[05.2005 - 10.2006] XZU308..03S..4FC |
51923-37010 |
US $15.14 |
||
| replacement | |||||
|
51923A
|
51923A
51923-37011 Guide, Spare Whell Carrier Handle[05.2005 - 10.2006] XZU308..03S..4FC |
51923-37011 |
US $11.36 |
||
|
91611B0825
|
91611B0825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.11 |
||
|
91611G0820
|
91611G0820
91611-G0820 Bolt |
91611-G0820 |
from US $1.21 |
||
|
91645C1032
|
91645C1032
91645-C1032 Bolt, Fuel Tank |
91645-C1032 |
US $3.58 |
||
|
91651B0825
|
91651B0825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.84 |
||
|
9359016014
|
9359016014
93590-16014 New Genuine Part |
93590-16014 |
US $5.02 |
||
|
9415080800
|
9415080800
94150-80800 NUT, FLANGE |
94150-80800 |
from US $0.78 |
||
|
9415081000
|
9415081000
94150-81000 NUT FLANGE |
94150-81000 |
US $1.79 |
||
