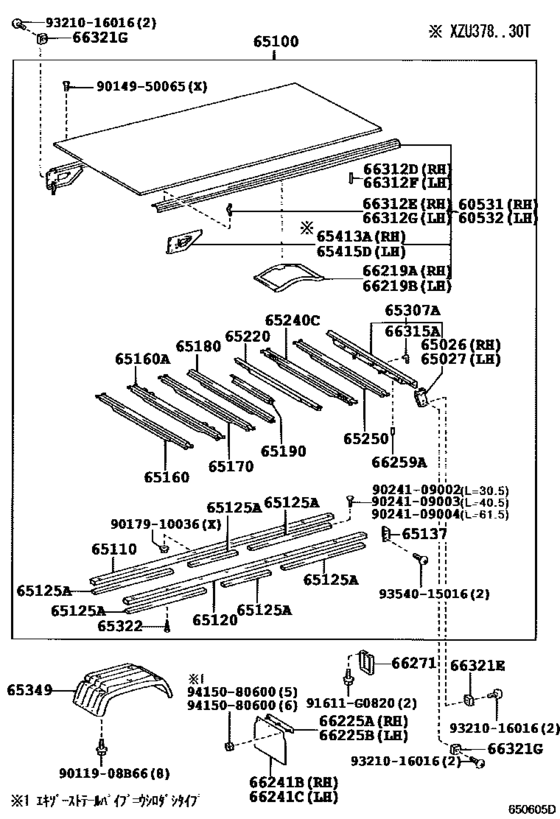

Rear Body Floor & Fender ([06.2004 - ] (0406- )XZU33#,378..SCB..T3,T4..CBU) Diagram Toyota DYNA/ TOYOACE
- Year
- 2004 - 2006
- Sales region
- Japan
- Frame
- XZU334
- ENGINE
- N04C
- TRANSMISSION
- MTM
- DECK
- T3
- CAB
- SCB
- Model
- DYNA/TOYOACE
- From
- 06.2004
- To
- 10.2006
- Gear Shift Type
- 5F
- Body Shape
- 1NO
- Loading Capacity
- 30T
- Fuel Induction
- DCRL
- Building Condition
- CBU
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
60531
|
60531
60531-37670 Frame Sub-Assy, Floor Side, Rh[06.2004 - 10.2006] XZU378..SCB..CBU;XZU331,334..30T..CBU |
60531-37670 |
US $422.24 |
||
|
60532
|
60532
60532-37670 Frame Sub-Assy, Floor Side, Lh[06.2004 - 10.2006] XZU378..SCB..CBU;XZU331,334..30T..CBU |
60532-37670 |
US $422.24 |
||
|
65026
|
65026
65026-37020 Bracket Sub-Assy, Gate Rubber Bumper, Rh[06.2004 -] RZU300..LPG;BZU300,340..T4..CNG;BZU300,340,RZU30#,340,XZU301,304,306,308,33#,34#,3 68,378,388..(T2,T3,T4,T5)..CBU |
65026-37020 |
US $30.58 |
||
|
65027
|
65027
65027-37020 Bracket Sub-Assy, Gate Rubber Bumper, Lh[06.2004 -] RZU300..LPG;BZU300,340..T4..CNG;BZU300,340,RZU30#,340,XZU301,304,306,308,33#,34#,3 68,378,388..(T2,T3,T4,T5)..CBU |
65027-37020 |
US $30.58 |
||
|
65100
|
65100
65100-37C90 Floor Assy, Rear Body[06.2004 - 05.2005] XZU331,334..T3..CBU *** |
65100-37C90 |
US $3,028.48 |
||
|
65100
|
65100
65100-37K90 Floor Assy, Rear Body[05.2005 - 10.2006] XZU331,334..T3..CBU *** |
65100-37K90 |
US $4,004 |
||
|
65110
|
65110
65110-37B30 Sill Assy, Main, Rh[06.2004 - 10.2006] XZU331,334..T3..CBU |
65110-37B30 |
US $397.49 |
||
|
65120
|
65120
65120-37B30 Sill Assy, Main, Lh[06.2004 - 10.2006] XZU331,334..T3..CBU |
65120-37B30 |
US $397.49 |
||
|
65125A
|
65125A
65125-37480 Shim, Main Sill, Lower No.1[06.2004 - 10.2006] XZU331,334,378..T3..30T..CBU センタ |
65125-37480 |
US $38.15 |
||
|
65125A
|
65125A
65127-37540 Shim, Main Sill, Lower No.1[06.2004 - 10.2006] XZU331,334,378..T3..30T..CBU リヤ右側 |
65127-37540 |
US $70.32 |
||
|
65137
|
65137
65137-37030 Cover, Main Sill End[06.2004 -] BZU300,340..T4..CNG;BZU300,340,XZU334..30T..CBU;RZU300,XZU301,304,306,308,331,341, 344,346,378,388..(T3,T5)..CBU |
65137-37030 |
US $6.70 |
||
|
65160
|
65160
65160-37140 Sill Assy, Cross, No.2[06.2004 -] BZU340,RZU340,XZU34#,388..SCB..(T3,T4)..CBU; XZU378..SCB..CBU;XZU346,388..DCB..CBU;BZU300,RZU300..T3..CBU;XZU301,304,331,334..3 0T..CBU..1NO |
65160-37140 |
US $384.38 |
||
|
65160A
|
65160A
65240-37230 Sill Assy, Cross, No.2[06.2004 -] BZU340..CNG;XZU334..DCRL..CBU;BZU340,RZU340,XZU331,34#,388..SCB..(T3,T4)..CBU |
65240-37230 |
US $374.19 |
||
|
65170
|
65170
65160-37260 Sill Assy, Cross, No.2[06.2004 -] BZU340..CNG;BZU300,RZU300,XZU334..T3..CBU;BZU340,RZU340,XZU301,304,331,34#,378,388 ..(T3,T4)..CBU..1NO |
65160-37260 |
US $323.23 |
||
|
65180
|
65180
65180-37450 Sill Assy, Cross, No.4[06.2004 - 05.2007] BZU340..CNG;XZU334..DCRL..CBU;BZU340,RZU340,XZU331,34#,378,388..(T3,T4)..CBU |
65180-37450 |
US $320.32 |
||
|
65190
|
65190
65190-37040 Sill Assy, Cross, No.5[06.2004 -] BZU340..CNG;BZU300,RZU300,XZU334..T3..CBU;BZU340,RZU340,XZU301,304,331,34#,378,388 ..(T3,T4)..CBU..1NO |
65190-37040 |
US $216.94 |
||
|
65220
|
65220
65180-37440 Sill Assy, Cross, No.4[06.2004 - 05.2007] BZU340..CNG;BZU300,RZU300,XZU334..T3..CBU;BZU340,RZU340,XZU301,304,331,34#,378,388 ..(T3,T4)..CBU..1NO |
65180-37440 |
US $320.32 |
||
|
65240C
|
65240C
65240-37230 Sill Assy, Cross, No.2[06.2004 -] BZU340..CNG;XZU334..DCRL..CBU;BZU340,RZU340,XZU331,34#,388..SCB..(T3,T4)..CBU |
65240-37230 |
US $374.19 |
||
|
65250
|
65250
65160-37140 Sill Assy, Cross, No.2[06.2004 -] BZU340..CNG;BZU300,RZU300,XZU334..T3..CBU;BZU340,RZU340,XZU301,304,331,34#,378,388 ..(T3,T4)..CBU..1NO |
65160-37140 |
US $384.38 |
||
|
65307A
|
65307A
65307-37220 Frame Sub-Assy, Floor, Rear[06.2004 - 05.2005] BZU340..CNG;BZU300,340,RZU300,XZU301,304,331,334,341,344,346,378,388..T3..CBU |
65307-37220 |
US $476.11 |
||
|
65307A
|
65307A
65307-37540 Frame Sub-Assy, Floor, Rear[05.2005 -] BZU340..CNG;BZU300,340,RZU300,XZU301,304,331,334,341,344,346,378,388..T3..CBU |
65307-37540 |
US $397.49 |
||
|
65322
|
65322
65322-92820 Nail[06.2004 - 10.2006] XZU331,334,378..T3..30T..CBU |
65322-92820 |
US $1.60 |
||
|
65349
|
65349
65349-37010 Fender, Floor Side[06.2004 -] RZU300..LPG;BZU300,340..T4..CNG;BZU300,340,RZU30#,340,XZU301,304,306,308,33#,34#,3 68,378,388..(T2,T3,T4,T5)..CBU |
65349-37010 |
US $208.21 |
||
| replacement | |||||
|
65349
|
65349
65349-37041 Fender, Floor Side[06.2004 -] RZU300..LPG;BZU300,340..T4..CNG;BZU300,340,RZU30#,340,XZU301,304,306,308,33#,34#,3 68,378,388..(T2,T3,T4,T5)..CBU |
65349-37041 |
US $351 |
||
|
66219A
|
66219A
66219-37080 Extension, Rear Fender[06.2004 - 05.2007] RZU300..LPG;BZU300,340..T4..CNG;BZU300,340,RZU30#,340,XZU301,304,306,308,33#,34#,3 68,378,388..(T2,T3,T4,T5)..CBU |
66219-37080 |
US $22.86 |
||
|
66219B
|
66219B
66219-37080 Extension, Rear Fender[06.2004 - 05.2007] RZU300..LPG;BZU300,340..T4..CNG;BZU300,340,RZU30#,340,XZU301,304,306,308,33#,34#,3 68,378,388..(T2,T3,T4,T5)..CBU |
66219-37080 |
US $22.86 |
||
|
66225A
|
66225A
66242-37220 Support, Baffle Rubber[06.2004 -] BZU340..CNG;BZU300,RZU300..T3..CBU;BZU340,RZU340,XZU301,304,306,308,33#,34#,368,37 8,388..(T2,T3,T4,T5)..WT..CBU 長さ＝３３０ |
66242-37220 |
US $24.53 |
||
|
66225B
|
66225B
66242-37220 Support, Baffle Rubber[06.2004 -] RZU300..LPG;BZU300,340..T4..CNG;BZU300,340,RZU30#,340,XZU301,304,306,308,33#,34#,3 68,378,388..(T2,T3,T4,T5)..WT..CBU 長さ＝３３０ |
66242-37220 |
US $24.53 |
||
|
66241B
|
66241B
66241-3V200 Baffle, Rubber[06.2004 - 10.2006] XZU331,334,341,344,346,378,388..T3..CBU ＴＯＹＯＴＡ |
66241-3V200 |
US $42.52 |
||
|
66241B
|
66241B
66241-3V360 Baffle, Rubber[06.2004 - 10.2006] XZU331,334,341,344,346,378,388..T3..CBU ＨＩＮＯ |
66241-3V360 |
US $42.52 |
||
|
66241C
|
66241C
66241-3V200 Baffle, Rubber[06.2004 -] BZU340..CNG;BZU340,XZU331,334,341,344,346,378,388..T3..CBU ＴＯＹＯＴＡ |
66241-3V200 |
US $42.52 |
||
|
66241C
|
66241C
66241-3V360 Baffle, Rubber[06.2004 -] BZU340..CNG;BZU340,XZU331,334,341,344,346,378,388..T3..CBU ＨＩＮＯ |
66241-3V360 |
US $42.52 |
||
|
66259A
|
66259A
66259-37010 Cover, Rear Body Floor, Rear[06.2004 -] RZU300..LPG;BZU300,340..T4..CNG;BZU300,340,RZU30#,340,XZU301,304,306,308,33#,34#,3 68,378,388..(T2,T3,T4,T5)..CBU |
66259-37010 |
US $2.51 |
||
|
66312D
|
66312D
66311-37020 Hook, Rope[06.2004 - 05.2007] RZU300..LPG;BZU300..T4..CNG;BZU300,RZU30#,XZU301,304,306,308,33#,368,378..SCB..(T2 ,T3,T4,T5)..CBU |
66311-37020 |
US $11.65 |
||
|
66312E
|
66312E
66312-37020 Hook, Rope, No.2[06.2004 - 05.2007] RZU300..LPG;BZU300,340..T4..CNG;BZU300,340,RZU30#,340,XZU301,304,306,308,33#,34#,3 68,378,388..(T2,T3,T4,T5)..CBU |
66312-37020 |
US $8.74 |
||
|
66312F
|
66312F
66311-37020 Hook, Rope[06.2004 - 05.2007] RZU300..LPG;BZU300..T4..CNG;BZU300,RZU30#,XZU301,304,306,308,33#,368,378..SCB..(T2 ,T3,T4,T5)..CBU |
66311-37020 |
US $11.65 |
||
|
66312G
|
66312G
66312-37020 Hook, Rope, No.2[06.2004 - 05.2007] RZU300..LPG;BZU300,340..T4..CNG;BZU300,340,RZU30#,340,XZU301,304,306,308,33#,34#,3 68,378,388..(T2,T3,T4,T5)..CBU |
66312-37020 |
US $8.74 |
||
|
66315A
|
66315A
66315-37010 Hook, Rope, No.1[06.2004 -] BZU340..CNG;BZU300,340,RZU300,XZU301,304,331,334,341,344,346,378,388..T3..CBU |
66315-37010 |
US $7.43 |
||
|
66321E
|
66321E
66321-92803 Bumper, Gate Rubber[06.2004 -] RZU300..LPG;BZU300,340..T4..CNG;BZU300,340,RZU30#,340,XZU301,304,306,308,33#,34#,3 68,378,388..(T2,T3,T4,T5)..CBU |
66321-92803 |
US $9.14 |
||
|
66321G
|
66321G
66321-92805 Bumper, Gate Rubber[06.2004 -] RZU300..LPG;BZU300,340..T4..CNG;BZU300,340,RZU30#,340,XZU301,304,306,308,33#,34#,3 68,378,388..(T2,T3,T4,T5)..CBU |
66321-92805 |
US $14.69 |
||
|
91611G0820
|
91611G0820
91611-G0820 Bolt |
91611-G0820 |
from US $1.21 |
||
|
9011908B66
|
9011908B66
90119-08B66 BOLT WWASHER |
90119-08B66 |
from US $0.78 |
||
|
9014950065
|
9014950065
90149-50065 Screw(For Floor Board) |
90149-50065 |
US $1.08 |
||
|
9017910036
|
9017910036
90179-10036 NUT |
90179-10036 |
from US $2.91 |
||
|
9024109002
|
9024109002
90241-09002 New Genuine Part |
90241-09002 |
US $2.33 |
||
|
9024109003
|
9024109003
90241-09003 New Genuine Part |
90241-09003 |
US $2.91 |
||
|
9024109004
|
9024109004
90241-09004 New Genuine Part |
90241-09004 |
US $3.35 |
||
|
9321016016
|
9321016016
93210-16016 SCREW |
93210-16016 |
US $3.05 |
||
|
9354015016
|
9354015016
93540-15016 New Genuine Part |
93540-15016 |
US $0.87 |
||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.66 |
||
