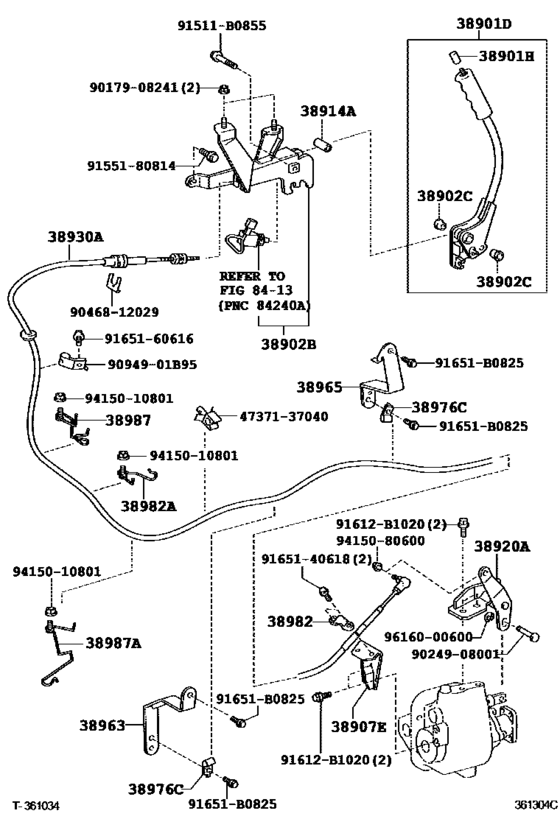

Power Take-Off Lever & Link ([10.2006 - ] (0610- )35T..IV3 ; (0610- )5F..30T..IV6 ; (0610- )XZU304,334,354..5F..20T, 40T..DCRTJ,DCRTK. .1NO ; (0801- )T5..30T..DCRTJ) Diagram Toyota DYNA/ TOYOACE
- Year
- 2006 - 2011
- Sales region
- Japan
- Frame
- XZU334
- ENGINE
- N04C
- TRANSMISSION
- MTM
- DECK
- T3
- CAB
- SCB
- Model
- DYNA/TOYOACE
- From
- 10.2006
- To
- 06.2011
- Gear Shift Type
- 5F
- Body Shape
- 1NO
- Loading Capacity
- 40T
- Fuel Induction
- DCRTK
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
38901D
|
38901D
38901-37110-B0 Lever Sub-Assy, Valve Control[10.2006 - 06.2011] XZU344..35T..IV3;XZU304..T5..30T..DCRUE;XZU368..T4..DCRTK..IV3;XZU30#..(T3,T4)..MT M..IV6;XZU304..T4..30T..DCRUE..IV3;XZU314,324,354,368,524,554,568..(DM5,DM7,T3)..M TM;XZU304,334..(DM3,DM6,T3)..MTM..(20T,40T)..(DCRTJ,DCRTK,DCRUE) ｱﾘ(ﾊ |
38901-37110-B0 |
US $179.09 |
||
|
38901H
|
38901H
46217-20020-B1 Knob, Valve Control Lever[10.2006 - 06.2011] XZU334,354..20T,40T;XZU504..5F..WT..IV3;XZU304..MTM..30T..IV6;XZU304..T5..30T..DCR UE..CBU;XZU344..T3..5F..(20T,35T)..IV3;XZU304..(DM3,DM6)..MTM..(DCRTJ,DCRUE);TRU30 0,XZU314,324,368,524,554..DM5,DM7;XZU308,348..DCB..MTM..(DCRTJ,DCRUE) |
46217-20020-B1 |
US $2.33 |
||
|
38902B
|
38902B
38902-37120 Bracket Sub-Assy, Valve Control Lever[10.2006 -] XZU344..35T..IV3;XZU304..T5..30T..DCRUE;XZU368..T4..DCRTK..IV3;XZU30#..(T3,T4)..MT M..IV6;XZU304..T4..30T..DCRUE..IV3;XZU314,324,354,368,524,554,568..(DM5,DM7,T3)..M TM;XZU304,334..(DM3,DM6,T3)..MTM..(20T,40T)..(DCRTJ,DCRTK,DCRUE) ｱﾘ(ﾊﾟﾜｰﾃｰｸｵﾌ |
38902-37120 |
US $129.58 |
||
|
38902C
|
38902C
90386-12034 Bush (For Shift Lever Retainer)[10.2006 -] XZU334,354..20T,40T;XZU504..5F..WT..IV3;XZU304..MTM..30T..IV6;XZU304..T5..30T..DCR UE..CBU;XZU344..T3..5F..(20T,35T)..IV3;XZU304..(DM3,DM6)..MTM..(DCRTJ,DCRUE);TRU30 0,XZU314,324,368,524,554..DM5,DM7;XZU308,348..DCB..MTM..(DCRTJ,DCRUE)..IV3;XZ |
90386-12034 |
US $1.97 |
||
|
38907E
|
38907E
38907-37020 Stay Sub-Assy, Power Teke-Off Control[10.2006 -] XZU344..35T..IV3;XZU30#,354..(T3,T4)..5F..IV6;XZU304,334..5F..(20T,40T)..(DCRTJ,DC RTK)..1NO |
38907-37020 |
US $120.85 |
||
|
38914A
|
38914A
38914-37010 Pipe, Valve Control Lever[10.2006 -] XZU334,354..20T,40T;XZU504..5F..WT..IV3;XZU304..MTM..30T..IV6;XZU304..T5..30T..DCR UE..CBU;XZU344..T3..5F..(20T,35T)..IV3;XZU304..(DM3,DM6)..MTM..(DCRTJ,DCRUE);TRU30 0,XZU314,324,368,524,554..DM5,DM7;XZU308,348..DCB..MTM..(DCRTJ,DCRUE)..IV3;XZ |
38914-37010 |
US $3.64 |
||
|
38920A
|
38920A
38920-37010 Lever Assy, Power Take-Off Control, No.1[10.2006 -] XZU344..35T..IV3;XZU30#,354..(T3,T4)..5F..IV6;XZU304,334..5F..(20T,40T)..(DCRTJ,DC RTK)..1NO |
38920-37010 |
US $125.22 |
||
|
38930A
|
38930A
38930-37380 Cable Assy, Push Pull[10.2006 -] XZU344..35T..IV3;XZU304..5F..30T..IV6;XZU304,334,354..5F..(20T,40T)..(DCRTJ,DCRTK) ..1NO |
38930-37380 |
US $110.66 |
||
|
38963
|
38963
38962-37360 Bracket, Cable Clamp, No.3[10.2006 -] XZU344..35T..IV3;XZU304..MTM..30T..IV6;XZU304..T5..30T..DCRUE;XZU304..T4..30T..DCR UE..IV3;XZU304,334,354..(DM3,DM6,T3)..MTM..(20T,40T)..(DCRTJ,DCRTK,DCRUE) |
38962-37360 |
US $10.19 |
||
|
38965
|
38965
38962-37410 Bracket, Cable Clamp, No.4[10.2006 -] XZU344..35T..IV3;XZU304..MTM..30T..IV6;XZU304..T5..30T..DCRUE;XZU314,324,354,524,5 54;XZU304..T4..30T..DCRUE..IV3;XZU304,334..(DM3,DM6,T3)..MTM..(20T,40T)..(DCRTJ,DC RTK,DCRUE) |
38962-37410 |
US $12.81 |
||
|
38976C
|
38976C
38976-37030 Clamp, Push Pull Cable[10.2006 -] XZU344..35T..IV3;XZU304..MTM..30T..IV6;XZU304..T5..30T..DCRUE;XZU304..T4..30T..DCR UE..IV3;XZU314,324,354,524,554..MTM;XZU304,334..(DM3,DM6,T3)..MTM..(20T,40T)..(DCR TJ,DCRTK,DCRUE) |
38976-37030 |
US $3.06 |
||
|
38982
|
38982
38982-96302 Clamp, Cable Push Pull[10.2006 -] XZU344..35T..IV3;XZU304..T5..30T..DCRUE;XZU368..T4..DCRTK..IV3;XZU304..T4..30T..DC RUE..IV3;XZU30#,354..(T3,T4)..MTM..IV6;XZU304,334..MTM..(20T,40T)..(DCRTJ,DCRTK,DC RUE)..1NO |
38982-96302 |
from US $4.60 |
||
|
38982A
|
38982A
38976-37041 Clamp, Push Pull Cable, No.2[10.2006 -] XZU344..35T..IV3;XZU304..T5..30T..DCRUE;XZU368..T4..DCRTK..IV3;XZU30#..(T3,T4)..MT M..IV6;XZU304..T4..30T..DCRUE..IV3;XZU314,324,354,368,524,554,568..DM5,DM7,T3;XZU3 04,334..(DM3,DM6,T3)..MTM..(20T,40T)..(DCRTJ,DCRTK,DCRUE) |
38976-37041 |
US $3.06 |
||
|
38987
|
38987
38976-37050 Clamp, Cable Push Pull[10.2006 -] XZU344..35T..IV3;XZU304..T5..30T..DCRUE;XZU368..T4..DCRTK..IV3;XZU304..T4..30T..DC RUE..IV3;XZU30#,354..(T3,T4)..MTM..IV6;XZU304,334,368,568..(DM3,DM5,DM6,T3)..MTM.. (20T,40T)..(DCRTJ,DCRTK,DCRUE) |
38976-37050 |
US $4.22 |
||
|
38987A
|
38987A
38976-37100 Clamp, Push Pull Cable[10.2006 -] XZU344..35T..IV3;XZU304..T5..30T..DCRUE;XZU368..T4..DCRTK..IV3;XZU304..T4..30T..DC RUE..IV3;XZU30#,354..(T3,T4)..MTM..IV6;XZU304,334,368,568..(DM3,DM5,DM6,T3)..MTM.. (20T,40T)..(DCRTJ,DCRTK,DCRUE) |
38976-37100 |
US $3.35 |
||
|
91511B0855
|
91511B0855
91511-B0855 BOLT FLANGE |
91511-B0855 |
US $3.05 |
||
|
91612B1020
|
91612B1020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
from US $1.07 |
||
|
91651B0825
|
91651B0825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.84 |
||
|
9094901B95
|
9094901B95
90949-01B95 New Genuine Part |
90949-01B95 |
US $2.62 |
||
|
4737137040
|
4737137040
47371-37040 Clamp(For Clutch Tube) |
47371-37040 |
US $5.73 |
||
|
9017908241
|
9017908241
90179-08241 NUT |
90179-08241 |
from US $0.92 |
||
|
9024908001
|
9024908001
90249-08001 Pin (For Power Take-Off Shift Shaft) |
90249-08001 |
US $4.51 |
||
|
9046812029
|
9046812029
90468-12029 New Genuine Part |
90468-12029 |
US $2.62 |
||
|
9155180814
|
9155180814
91551-80814 Bolt, Hexagon (For Rear Spring Seat Bolt) |
91551-80814 |
US $1.43 |
||
|
9165140618
|
9165140618
91651-40618 New Genuine Part |
91651-40618 |
US $2.80 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.94 |
||
|
9415010801
|
9415010801
94150-10801 New Genuine Part |
94150-10801 |
US $1.79 |
||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.66 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.84 |
