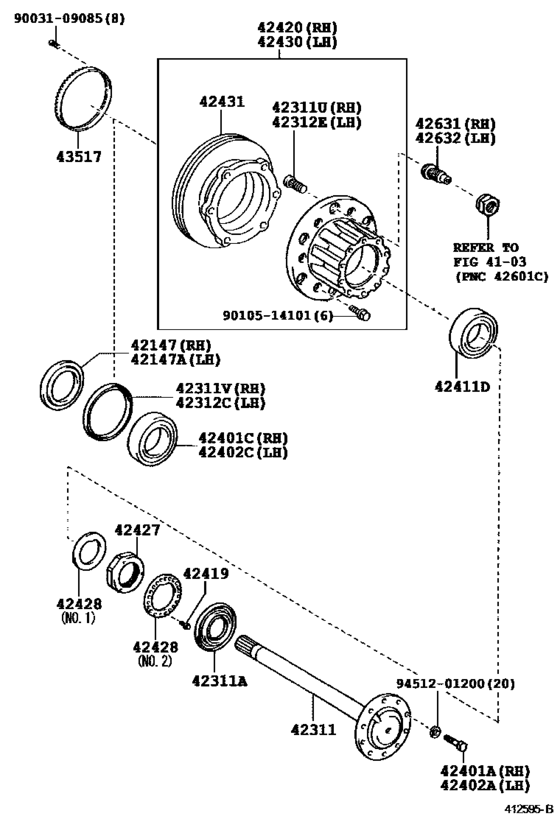

Rear Axle Shaft & Hub ([10.2006 - ] (0610- )35T,40T) Diagram Toyota DYNA/ TOYOACE
- Year
- 2006 - 2011
- Sales region
- Japan
- Frame
- XZU334
- ENGINE
- N04C
- TRANSMISSION
- MTM
- DECK
- T3
- CAB
- SCB
- Model
- DYNA/TOYOACE
- From
- 10.2006
- To
- 06.2011
- Gear Shift Type
- 5F
- Body Shape
- 1NO
- Loading Capacity
- 40T
- Fuel Induction
- DCRTK
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42147
|
42147
42147-37010 Guide, Rear Axle Oil Seal, Rh[10.2006 -] XZU334,344,354..35T,40T |
42147-37010 |
US $33.77 |
||
|
42147A
|
42147A
42147-37010 Guide, Rear Axle Oil Seal, Rh[10.2006 -] XZU334,344,354..35T,40T |
42147-37010 |
US $33.77 |
||
|
42311
|
42311
42311-37120 Shaft, Rear Axle[10.2006 - 06.2011] XZU334,344,354..35T,40T |
42311-37120 |
US $321.78 |
||
|
42311A
|
42311A
90033-11032 Seal, Oil (For Rear Axle Shaft)[10.2006 -] XZU334,344,354..35T,40T |
90033-11032 |
from US $21.34 |
||
|
42311U
|
42311U
90942-02071 Bolt, Hub (For Rear Axle Rh)[10.2006 -] XZU334,344,354..35T,40T |
90942-02071 |
from US $7.29 |
||
|
42311V
|
42311V
90033-11031 Seal, Oil (For Rear Axle Shaft Rh)[10.2006 -] XZU334,344,354..35T,40T |
90033-11031 |
from US $36.96 |
||
|
42312C
|
42312C
90033-11031 Seal, Oil (For Rear Axle Shaft Rh)[10.2006 -] XZU334,344,354..35T,40T |
90033-11031 |
from US $36.96 |
||
|
42312E
|
42312E
90942-02072 Bolt, Hub (For Rear Axle Lh)[10.2006 -] XZU334,344,354..35T,40T |
90942-02072 |
from US $7.31 |
||
|
42401A
|
42401A
90031-01163 Bolt, Stud (For Rear Axle Hub Rh)[10.2006 - 06.2011] XZU334,344,354..35T,40T |
90031-01163 |
US $3.40 |
||
|
42402A
|
42402A
90031-01163 Bolt, Stud (For Rear Axle Hub Rh)[10.2006 - 06.2011] XZU334,344,354..35T,40T |
90031-01163 |
US $3.40 |
||
|
42402C
|
42402C
90033-66030 Bearing (For Rear Axle Hub Inner Rh)[10.2006 -] XZU334..40T |
90033-66030 |
US $90.20 |
||
|
42411D
|
42411D
90033-66031 Bearing, Tapered Roller (For Rear Axle Outer Bearing)[10.2006 -] XZU334,344,354..35T,40T |
90033-66031 |
US $84 |
||
|
42419
|
42419
90119-06199 Bolt(For Manual Transmission Oil Pump Cover)[10.2006 -] XZU334,344,354..35T,40T |
90119-06199 |
US $1.25 |
||
|
42420
|
42420
42430-39175 Hub (Or Shaft) & Brake Drum Rear Axle, Rh[10.2006 -] XZU334,344,354..35T,40T |
42430-39175 |
from US $854.88 |
||
|
42427
|
42427
42427-37030 Nut, Rear Axle Bearing Lock[10.2006 -] XZU334,344,354..35T,40T |
42427-37030 |
US $36.29 |
||
|
42428
|
42428
42428-37010 Plate, Rear Axle Lock Nut[10.2006 -] XZU334,344,354..35T,40T ＮＯ．１ |
42428-37010 |
US $10.39 |
||
|
42428
|
42428
42428-37030 Plate, Rear Axle Lock Nut[10.2006 -] XZU334,344,354..35T,40T ＮＯ．２ |
42428-37030 |
US $8.42 |
||
|
42430
|
42430
42430-39185 Hub (Or Shaft) & Brake Drum Rear Axle, Lh[10.2006 -] XZU334,344,354..35T,40T |
42430-39185 |
from US $854.88 |
||
|
42431
|
42431
42431-37040
Disc, Rear
[10.2006 -] XZU334,344,354..35T,40T |
42431-37040 |
— | ||
| replacement | |||||
|
42431
|
42431
42431-37041 Disc, Rear[10.2006 -] XZU334,344,354..35T,40T |
42431-37041 |
from US $113.16 |
||
|
42631
|
42631
42631-37020 Bolt, Double Wheel Stop, Rh[10.2006 - 06.2011] XZU334,344,354..35T,40T |
42631-37020 |
from US $11.43 |
||
|
42632
|
42632
42632-37020 Bolt, Double Wheel Stop, Lh[10.2006 - 06.2011] XZU334,344,354..35T,40T |
42632-37020 |
from US $11.43 |
||
|
43517
|
43517
43517-37030 Rotor, Skid Control, Rear[10.2006 - 06.2011] XZU334,344,354..35T,40T |
43517-37030 |
US $93.48 |
||
|
9003109085
|
9003109085
90031-09085 New Genuine Part |
90031-09085 |
US $1.08 |
||
|
9010514101
|
9010514101
90105-14101 BOLT WASHER BASED |
90105-14101 |
from US $1.81 |
||
|
9451201200
|
9451201200
94512-01200 Washer |
94512-01200 |
from US $0.72 |
||
