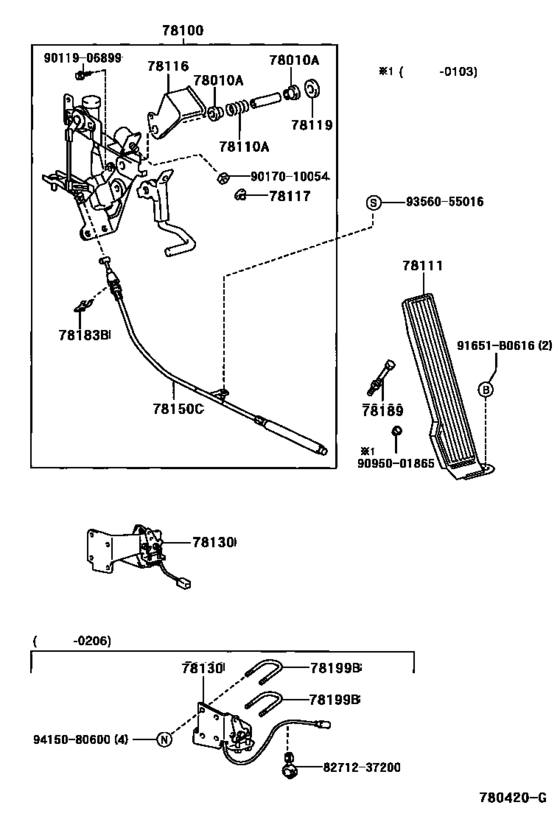

Accelerator Link ([07.1999 - ] (9907- )XZU300,320,330,340) Diagram Toyota DYNA/ TOYOACE
- Year
- 1999 - 2002
- Sales region
- Europe
- Frame
- XZU340
- ENGINE
- 15BFTE
- TRANSMISSION
- MTM
- From
- 07.1999
- To
- 12.2002
- Loading Capacity
- 40T
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78010A
|
78010A
90386-08065 Bush (For Accelerator Link)[07.1999 - 12.2002] XZU300,320,330,340 |
90386-08065 |
US $1.31 |
||
|
78100
|
78100
78100-37620 Link Assy, AcceleratorACCELERATOR [07.1999 - 12.2002] XZU300,320,330,340 |
78100-37620 |
from US $262.41 |
||
|
78110A
|
78110A
90959-03243 Spring (For Accelerator Pedal Rod)[07.1999 - 12.2002] XZU300,320,330,340 |
90959-03243 |
US $2.18 |
||
|
78111
|
78111
78010-37010 Pedal, AcceleratorACCELERATOR [07.1999 - 12.2002] XZU300,320,330,340 |
78010-37010 |
from US $10.83 |
||
|
78116
|
78116
78116-37010 Cover, Accelerator Pedal Rod[07.1999 - 12.2002] XZU300,320,330,340 |
78116-37010 |
US $5.82 |
||
|
78117
|
78117
90541-06036 Cushion, No.1(For Clutch Pedal)[07.1999 - 07.2000] XZU300,320,330,340 |
90541-06036 |
from US $0.90 |
||
| replacement | |||||
|
78117
|
78117
90541060361
CUSHION
[07.1999 - 07.2000] XZU300,320,330,340 |
90541060361 |
— | ||
|
78117
|
78117
90541-06038 Cushion(For Parking Brake Pedal)[07.2000 - 12.2002] XZU30#,320,330,34# |
90541-06038 |
US $2.15 |
||
|
78119
|
78119
78119-95J00 Stopper, Accelerator Pedal Rod[07.1999 - 12.2002] XZU300,320,330,340 |
78119-95J00 |
US $2.62 |
||
| replacement | |||||
|
78119
|
78119
78119-37010 Stopper, Accelerator Pedal Rod[07.1999 - 12.2002] XZU300,320,330,340 |
78119-37010 |
US $0.58 |
||
|
78130
|
78130
78130-37021 Bellcrank Assy, Accelerator[06.2002 - 12.2002] XZU300,320,330,340 |
78130-37021 |
US $666.85 |
||
|
78130
|
78130
78130-37031 Bellcrank Assy, AcceleratorACCELERATOR [07.1999 - 08.2000] XZU300,320,330,340 |
78130-37031 |
US $665.39 |
||
| replacement | |||||
|
78130
|
78130
78130-37032 Bellcrank Assy, AcceleratorACCELERATOR [07.1999 - 08.2000] XZU300,320,330,340 |
78130-37032 |
US $665.39 |
||
|
78130
|
78130
78130-37032 Bellcrank Assy, AcceleratorACCELERATOR [08.2000 - 06.2002] XZU300,320,330,340 |
78130-37032 |
US $665.39 |
||
|
78150C
|
78150C
78150-37490 Wire Assy, Accelerator FlexibleACCELERATOR FLEXIBLE [07.1999 - 12.2002] XZU300,320,330,340 |
78150-37490 |
US $53.14 |
||
|
78183B
|
78183B
78183-26170 Clamp, Accelerator Control Cable[07.1999 - 12.2002] XZU30#,320,330,34# |
78183-26170 |
US $0.87 |
||
|
78189
|
78189
78208-37090 Bolt, Accelerator Pedal StopperACCELERATOR PEDAL STOPPER [07.1999 - 12.2002] XZU300,320,330,340 |
78208-37090 |
US $3.93 |
||
|
78199B
|
78199B
78199-37030 Pin, Accelerator Control Rod Joint[07.1999 - 06.2002] XZU30#,320,330,34# |
78199-37030 |
US $7.72 |
||
|
91651B0616
|
91651B0616
91651-B0616 BOLT WWASHER |
91651-B0616 |
from US $0.84 |
||
|
8271237200
|
8271237200
82712-37200 Hose, Suction |
82712-37200 |
US $10.63 |
||
|
9011906899
|
9011906899
90119-06899 New Genuine Part |
90119-06899 |
US $1.31 |
||
|
9017010054
|
9017010054
90170-10054
Nut, Hexagon
|
90170-10054 |
— | ||
|
9095001865
|
9095001865
90950-01865 PLUG HOLE |
90950-01865 |
from US $1.25 |
||
|
9356055016
|
9356055016
93560-55016 Screw(For Mat Set Plate) |
93560-55016 |
from US $0.66 |
||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.66 |
||
