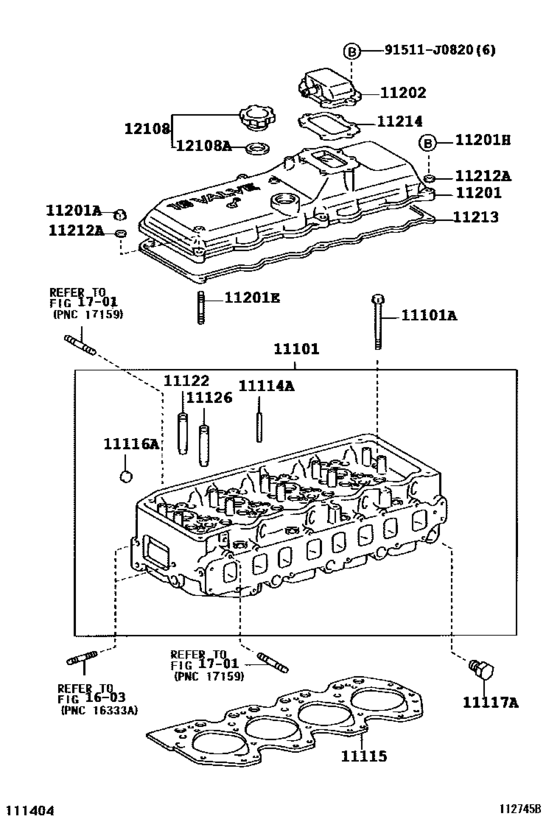

Cylinder Head ([12.2002 - 10.2006] (0212-0610)15BFTE..XZU300,320,330,340) Diagram Toyota DYNA/ TOYOACE
- Year
- 2002 - 2006
- Sales region
- General
- Frame
- XZU340
- ENGINE
- 15BFTE
- DESTINATION
- TAIW
- DECK
- T3
- From
- 12.2002
- To
- 10.2006
- Loading Capacity
- 80T
- Driver's Position
- LHD
- Fuel Induction
- TD
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-58100 Head Sub-Assy, Cylinder[12.2002 - 10.2006] 15BFTE..XZU300,320,330,340 |
11101-58100 |
US $2,213.12 |
||
|
11101A
|
11101A
90910-02084 Bolt(For Cylinder Head Set)[12.2002 - 10.2006] 15BFTE..XZU300,320,330,340 |
90910-02084 |
from US $9.50 |
||
|
11114A
|
11114A
90250-09007 Pin, Straight[12.2002 - 10.2006] 15BFTE..XZU300,320,330,340 L=53.5,OD=9 |
90250-09007 |
US $3.84 |
||
|
11115
|
11115
11115-58131 Gasket, Cylinder Head[12.2002 - 07.2004] 15BFTE..XZU300,320,330,340 T=1.20 |
11115-58131 |
from US $98.94 |
||
|
11115
|
11115
11115-58141 Gasket, Cylinder Head[12.2002 - 07.2004] 15BFTE..XZU300,320,330,340 T=1.30 |
11115-58141 |
from US $98.38 |
||
|
11115
|
11115
11115-58151 Gasket, Cylinder Head[12.2002 - 07.2004] 15BFTE..XZU300,320,330,340 T=1.40 |
11115-58151 |
from US $103.14 |
||
|
11115
|
11115
11115-58160 Gasket, Cylinder HeadCYLINDER HEAD [07.2004 - 10.2006] 15BFTE..XZU300,320,330,340 T=1.20 |
11115-58160 |
US $179.09 |
||
|
11115
|
11115
11115-58170 Gasket, Cylinder HeadCYLINDER HEAD [07.2004 - 10.2006] 15BFTE..XZU300,320,330,340 T=1.30 |
11115-58170 |
US $179.09 |
||
|
11115
|
11115
11115-58210 Gasket, Cylinder HeadCYLINDER HEAD [07.2004 - 10.2006] 15BFTE..XZU300,320,330,340 T=1.40 |
11115-58210 |
US $179.09 |
||
|
11116A
|
11116A
90331-14006 Plug, Tight, No.1[12.2002 - 10.2006] 15BFTE..XZU300,320,330,340 |
90331-14006 |
US $0.35 |
||
|
11117A
|
11117A
90345-54005 Plug, W/head Taper Screw, No.1[12.2002 - 10.2006] 15BFTE..XZU300,320,330,340 |
90345-54005 |
from US $3.90 |
||
|
11122
|
11122
11122-58020 Bush, Intake Valve Guide[12.2002 - 10.2006] 15BFTE..XZU300,320,330,340 STD |
11122-58020 |
US $7.43 |
||
|
11126
|
11126
11122-58020 Bush, Intake Valve Guide[12.2002 - 10.2006] 15BFTE..XZU300,320,330,340 STD |
11122-58020 |
US $7.43 |
||
|
11201
|
11201
11201-58070 Cover Sub-Assy, Cylinder Head[12.2002 - 10.2006] 15BFTE..XZU300,320,330,340 |
11201-58070 |
US $269.36 |
||
|
11201A
|
11201A
90179-08040 Nut, Cap(For Cylinder Head Cover)[12.2002 - 10.2006] 15BFTE..XZU300,320,330,340 |
90179-08040 |
from US $1.03 |
||
|
11201E
|
11201E
92112-60835 Bolt, Stud(For Cylinder Head Cover Set)[12.2002 - 03.2004] 15BFTE..XZU300,320,330,340 |
92112-60835 |
US $3.40 |
||
|
11201E
|
11201E
92112-80835 Bolt, Stud(For Cylinder Head Cover Set)[03.2004 - 10.2006] 15BFTE..XZU300,320,330,340 |
92112-80835 |
US $1.16 |
||
|
11201H
|
11201H
91511-B0835
Bolt(For Cylinder Head Set Sub)
[12.2002 - 10.2006] 15BFTE..XZU300,320,330,340 |
91511-B0835 |
— | ||
| replacement | |||||
|
11201H
|
11201H
90105-08200 Bolt(For Cylinder Head Set Sub)[12.2002 - 10.2006] 15BFTE..XZU300,320,330,340 |
90105-08200 |
from US $1.40 |
||
|
11202
|
11202
11202-58010 Cover Sub-Assy, Cylinder Head, Lh[12.2002 - 10.2006] 15BFTE..XZU300,320,330,340 |
11202-58010 |
US $61.73 |
||
|
11212A
|
11212A
11228-56010 Cushion, Cylinder Head Cover[12.2002 - 10.2006] 15BFTE..XZU300,320,330,340 |
11228-56010 |
from US $1.50 |
||
|
11213
|
11213
11213-58021 Gasket, Cylinder Head Cover[12.2002 - 10.2006] 15BFTE..XZU300,320,330,340 |
11213-58021 |
US $20.50 |
||
|
11214
|
11214
11214-58010 Gasket, Cylinder Head Cover, No.2[12.2002 - 10.2006] 15BFTE..XZU300,320,330,340 |
11214-58010 |
US $8.15 |
||
|
12108
|
12108
12180-55010 Cap Sub-Assy, Oil Filler[12.2002 - 10.2006] 15BFTE..XZU300,320,330,340 |
12180-55010 |
from US $11.29 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[12.2002 - 10.2006] 15BFTE..XZU300,320,330,340 |
90430-37140 |
from US $1.17 |
||
|
91511J0820
|
91511J0820
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $0.92 |
||
