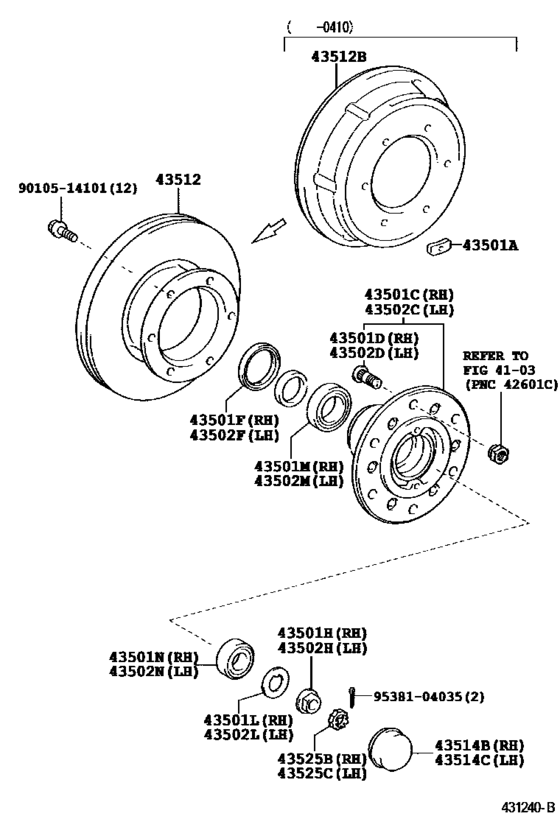

Front Axle Hub ([12.2002 - 10.2006] (0212-0610)80T) Diagram Toyota DYNA/ TOYOACE
- Year
- 2002 - 2006
- Sales region
- General
- Frame
- XZU340
- ENGINE
- 15BFTE
- DESTINATION
- TAIW
- DECK
- T3
- From
- 12.2002
- To
- 10.2006
- Loading Capacity
- 80T
- Driver's Position
- LHD
- Fuel Induction
- TD
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43501A
|
43501A
90937-01117 Piece, Balance (For Rear Brake Drum)[09.2002 - 10.2004] XZU300,320,330,340 10G |
90937-01117 |
US $1.14 |
||
|
43501A
|
43501A
90937-01118 Piece, Balance (For Rear Brake Drum)[09.2002 - 10.2004] XZU300,320,330,340 20G |
90937-01118 |
US $1.05 |
||
|
43501A
|
43501A
90937-01119 Piece, Balance (For Rear Brake Drum)[09.2002 - 10.2004] XZU300,320,330,340 30G |
90937-01119 |
US $1.05 |
||
|
43501A
|
43501A
90937-01120 Piece, Balance (For Rear Brake Drum)[09.2002 - 10.2004] XZU300,320,330,340 40G |
90937-01120 |
US $1.05 |
||
|
43501A
|
43501A
90937-01121 Piece, Balance (For Rear Brake Drum)[09.2002 - 10.2004] XZU300,320,330,340 50G |
90937-01121 |
US $1.05 |
||
|
43501A
|
43501A
90937-01122 Piece, Balance (For Rear Brake Drum)[09.2002 - 10.2004] XZU300,320,330,340 60G |
90937-01122 |
US $2.33 |
||
|
43501C
|
43501C
43501-37080 Hub Sub-Assy, Front Axle, Rh[12.2002 - 10.2004] XZU330,340..80T |
43501-37080 |
US $247.52 |
||
|
43501C
|
43501C
43501-37140 Hub Sub-Assy, Front Axle, Rh[10.2004 - 10.2006] XZU330,340..80T |
43501-37140 |
US $382.93 |
||
|
43501D
|
43501D
90942-02071 Bolt, Hub (For Rear Axle Rh)[09.2002 - 10.2006] BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
90942-02071 |
from US $7.29 |
||
|
43501F
|
43501F
90311-68002 Seal, Oil (For Front Axle Hub Rh)[12.2002 - 09.2004] WU340,XZU342;BU303,343,WU300,XZU30#,320,330,340,345..ARL,GCC,GEN,SA,TAIW |
90311-68002 |
from US $13.44 |
||
|
43501F
|
43501F
90311-68003 Seal, Oil (For Front Axle Hub Rh)[09.2004 - 10.2006] BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
90311-68003 |
from US $13.44 |
||
|
43501H
|
43501H
90178-28001 Nut (For Front Axle Shaft Rh)[09.2002 - 10.2006] BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
90178-28001 |
from US $2.30 |
||
|
43501L
|
43501L
90214-29001 Washer, Claw (For Front Axle Hub Rh)[09.2002 - 10.2006] BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
90214-29001 |
from US $3.80 |
||
|
43501M
|
43501M
90366-50069 Bearing (For Front Axle Hub Inner Rh)[09.2002 - 10.2006] BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
90366-50069 |
from US $58.80 |
||
|
43501N
|
43501N
90366-35105 Bearing (For Front Axle Hub Outer Rh)[09.2002 - 10.2006] BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
90366-35105 |
from US $45.20 |
||
|
43502C
|
43502C
43502-37080 Hub Sub-Assy, Front Axle, Lh[12.2002 - 10.2004] XZU330,340..80T |
43502-37080 |
US $247.52 |
||
|
43502C
|
43502C
43502-37140 Hub Sub-Assy, Front Axle, Lh[10.2004 - 10.2006] XZU330,340..80T |
43502-37140 |
US $382.93 |
||
|
43502D
|
43502D
90942-02072 Bolt, Hub (For Rear Axle Lh)[09.2002 - 10.2006] BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
90942-02072 |
from US $7.31 |
||
|
43502F
|
43502F
90311-68002 Seal, Oil (For Front Axle Hub Rh)[12.2002 - 09.2004] WU340,XZU342;BU303,343,WU300,XZU30#,320,330,340,345..ARL,GCC,GEN,SA,TAIW |
90311-68002 |
from US $13.44 |
||
|
43502F
|
43502F
90311-68003 Seal, Oil (For Front Axle Hub Rh)[09.2004 - 10.2006] BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
90311-68003 |
from US $13.44 |
||
|
43502H
|
43502H
90178-28001 Nut (For Front Axle Shaft Rh)[09.2002 - 10.2006] BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
90178-28001 |
from US $2.30 |
||
|
43502L
|
43502L
90214-29001 Washer, Claw (For Front Axle Hub Rh)[09.2002 - 10.2006] BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
90214-29001 |
from US $3.80 |
||
|
43502M
|
43502M
90366-50069 Bearing (For Front Axle Hub Inner Rh)[09.2002 - 10.2006] BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
90366-50069 |
from US $58.80 |
||
|
43502N
|
43502N
90366-35105 Bearing (For Front Axle Hub Outer Rh)[09.2002 - 10.2006] BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
90366-35105 |
from US $45.20 |
||
|
43512
|
43512
43512-37140 Disc, Front[10.2004 - 10.2006] XZU330,340..80T |
43512-37140 |
US $154.16 |
||
|
43512B
|
43512B
43512-37130 Drum, Brake[12.2002 - 10.2004] XZU330,340..80T |
43512-37130 |
US $187.82 |
||
|
43514B
|
43514B
43514-37030 Cap, Front Axle Hub Grease, Rh[09.2002 - 10.2006] BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
43514-37030 |
from US $10.78 |
||
|
43514C
|
43514C
43514-37030 Cap, Front Axle Hub Grease, Rh[09.2002 - 10.2006] BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
43514-37030 |
from US $10.78 |
||
|
43525B
|
43525B
43525-37010 Cap, Front Wheel Adjusting Lock, Rh[09.2002 - 10.2006] BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
43525-37010 |
from US $2.96 |
||
|
43525C
|
43525C
43525-37010 Cap, Front Wheel Adjusting Lock, Rh[09.2002 - 10.2006] BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
43525-37010 |
from US $2.96 |
||
|
9010514101
|
9010514101
90105-14101 BOLT WASHER BASED |
90105-14101 |
from US $1.81 |
||
|
9538104035
|
9538104035
95381-04035 PIN |
95381-04035 |
from US $0.74 |
