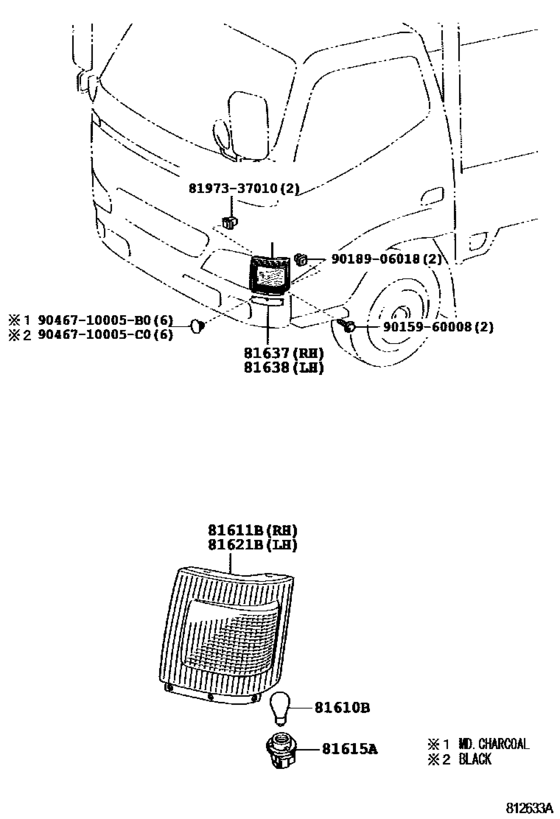

Front Clearance Lamp ([12.2002 - 10.2006] (0212-0610)XZU300,320,330,340) Diagram Toyota DYNA/ TOYOACE
- Year
- 2002 - 2006
- Sales region
- General
- Frame
- XZU340
- ENGINE
- 15BFTE
- DESTINATION
- TAIW
- DECK
- T3
- From
- 12.2002
- To
- 10.2006
- Loading Capacity
- 80T
- Driver's Position
- LHD
- Fuel Induction
- TD
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81610B
|
81610B
90981-16015 Bulb (For Front Turn Signal Lamp)[12.2002 - 10.2006] BU303,343,WU300,340,XZU300,320,330,340..LHD 24V 21/5W |
90981-16015 |
from US $6.27 |
||
|
81611B
|
81611B
81611-37080 Lens & Body, Clearance Lamp, Rh[12.2002 - 10.2006] XZU300,320,330,340 |
81611-37080 |
US $152.52 |
||
|
81615A
|
81615A
90075-99106 Socket And Wire, Clearance Lamp[12.2002 - 10.2006] BU303,343,WU300,340,XZU300,320,330,340..LHD |
90075-99106 |
from US $6.38 |
||
|
81621B
|
81621B
81621-37080 Lens & Body, Clearance Lamp, Lh[12.2002 - 10.2006] XZU300,320,330,340 |
81621-37080 |
US $152.52 |
||
|
81637
|
81637
81637-37011 Protector, Clearance Lamp, Rh[12.2002 - 10.2006] BU303,343,WU300,340,XZU300,320,330,340..LHD |
81637-37011 |
US $3.44 |
||
|
81638
|
81638
81638-37011 Protector, Clearance Lamp, Lh[12.2002 - 10.2006] BU303,343,WU300,340,XZU300,320,330,340..LHD |
81638-37011 |
US $3.44 |
||
|
8197337010
|
8197337010
81973-37010 RETAINER SIDE TURN |
81973-37010 |
US $2.15 |
||
|
9015960008
|
9015960008
90159-60008 SCREW |
90159-60008 |
US $1.25 |
||
|
9018906018
|
9018906018
90189-06018 GROMMET |
90189-06018 |
from US $0.99 |
||
|
9046710005B0
|
9046710005B0
90467-10005-B0 Clip |
90467-10005-B0 |
US $3.58 |
||
|
9046710005C0
|
9046710005C0
90467-10005-C0 Clip |
90467-10005-C0 |
from US $1.33 |
