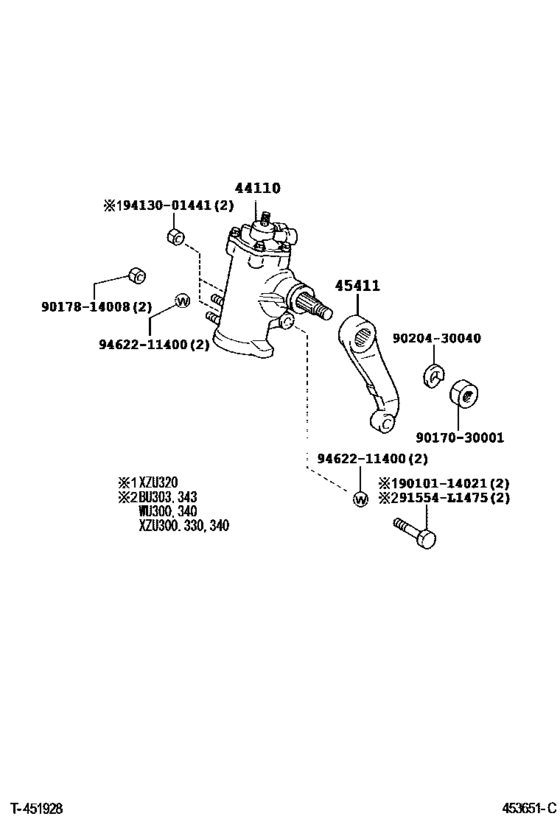

Front Steering Gear & Link ([12.2002 - 10.2006] POWER STEERING (0212-0610)LHD) Diagram Toyota DYNA/ TOYOACE
- Year
- 2002 - 2006
- Sales region
- General
- Frame
- XZU340
- ENGINE
- 15BFTE
- DESTINATION
- TAIW
- DECK
- T3
- From
- 12.2002
- To
- 10.2006
- Loading Capacity
- 80T
- Driver's Position
- LHD
- Fuel Induction
- TD
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44110
|
44110
44110-37130 Gear Assy, Power SteeringPOWER STEERING [12.2002 - 10.2006] BU303,343,WU300,340,XZU300,330,340..LHD |
44110-37130 |
US $2,227.68 |
||
|
45411
|
45411
45411-37120 Arm, PitmanPITMAN [12.2002 - 10.2006] XZU330,340..80T |
45411-37120 |
US $163.07 |
||
|
91554L1475
|
91554L1475
91554-L1475 BOLT FLANGE |
91554-L1475 |
US $4.08 |
||
|
9010114021
|
9010114021
90101-14021 BOLT |
90101-14021 |
US $10.57 |
||
|
9017030001
|
9017030001
90170-30001 Nut, Castle(For Pitman Arm) |
90170-30001 |
US $5.39 |
||
|
9017814008
|
9017814008
90178-14008 Nut(For Suspension Lower Arm Shaft) |
90178-14008 |
US $3.94 |
||
|
9020430040
|
9020430040
90204-30040 Washer(For Pitman Arm) |
90204-30040 |
from US $4.93 |
||
|
9413001441
|
9413001441
94130-01441 Nut(For Backing Plate To Steering Knuckle Setting) |
94130-01441 |
US $1.31 |
||
|
9462211400
|
9462211400
94622-11400 New Genuine Part |
94622-11400 |
US $4.30 |
