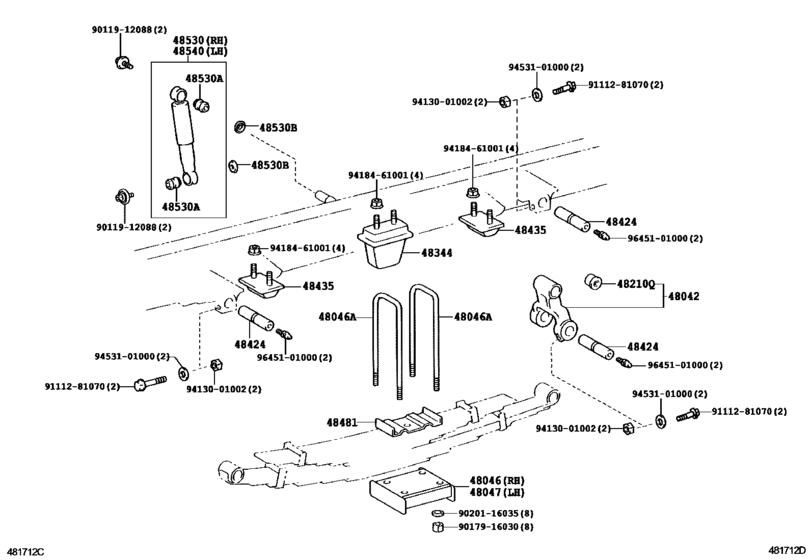

Rear Spring & Shock Absorber ([12.2002 - ] (0212- )80T) Diagram Toyota DYNA/ TOYOACE
- Year
- 2002 - 2006
- Sales region
- General
- Frame
- XZU340
- ENGINE
- 15BFTE
- DESTINATION
- TAIW
- DECK
- T3
- From
- 12.2002
- To
- 10.2006
- Loading Capacity
- 80T
- Driver's Position
- LHD
- Fuel Induction
- TD
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48042
|
48042
48042-37041 Shackle Sub-Assy, Rear Spring, No.2[12.2002 - 10.2006] XZU330,340..80T |
48042-37041 |
US $85.90 |
||
|
48046
|
48046
48473-37180 Seat Sub-Assy, Spring U Bolt, Rh[12.2002 - 10.2006] BU343..65T..GEN;XZU30#,330,340,345; BU303,343,WU300,340..55T..(GCC,GEN) HEAVY DUTY SUSPENSION |
48473-37180 |
US $77.17 |
||
|
48046A
|
48046A
90117-16057 Bolt, U(For Rear Spring)[12.2002 - 10.2006] XZU330,340..80T L=345 |
90117-16057 |
US $29.23 |
||
|
48047
|
48047
48473-37180 Seat Sub-Assy, Spring U Bolt, Rh[12.2002 - 10.2006] BU343..65T..GEN;XZU30#,330,340,345; BU303,343,WU300,340..55T..(GCC,GEN) HEAVY DUTY SUSPENSION |
48473-37180 |
US $77.17 |
||
|
48210Q
|
48210Q
90384-28009 Bush(For Rear Spring Leaf)[12.2002 - 10.2006] XZU330,340..80T |
90384-28009 |
US $32.18 |
||
|
48344
|
48344
48344-37140 Stopper, Bumper, Rear[12.2002 - 10.2006] XZU330,340..80T |
48344-37140 |
US $77.28 |
||
|
48424
|
48424
48424-37020 Pin, Spring Bracket, No.2[12.2002 - 10.2006] XZU330,340..80T |
48424-37020 |
from US $11.65 |
||
|
48435
|
48435
48435-36050 Attachment, Helper Spring Bracket, No.1[12.2002 - 10.2006] BU303,343,WU300,340,XZU30#,330,340,345..WT..(ARL,GCC,GEN,TAIW) |
48435-36050 |
US $13.98 |
||
|
48481
|
48481
48481-37081 Seat, Rear Spring, Upper[12.2002 - 10.2006] BU343..65T..GEN;XZU30#,330,340,345; BU303,343,WU300,340..55T..(GCC,GEN) HEAVY DUTY SUSPENSION |
48481-37081 |
US $9.03 |
||
|
48530
|
48530
48531-80675 Absorber Assy, Shock, Rear Rh[12.2002 - 10.2006] XZU330,340..80T MARK 48531-37060 |
48531-80675 |
US $81.54 |
||
| replacement | |||||
|
48530
|
48530
48531-80803 Absorber Assy, Shock, Rear Rh[12.2002 - 10.2006] XZU330,340..80T MARK 48531-37060 |
48531-80803 |
US $121.36 |
||
|
48530A
|
48530A
90385-19011 Bush(For Front Shock Absorber Rh)[12.2002 - 10.2006] BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
90385-19011 |
from US $3.08 |
||
|
48530B
|
48530B
90948-03011 Washer, Front Shock Absorber Cushion, No.1[12.2002 - 10.2006] BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
90948-03011 |
from US $2.33 |
||
|
48540
|
48540
48531-80675 Absorber Assy, Shock, Rear Rh[12.2002 - 10.2006] XZU330,340..80T MARK 48531-37060 |
48531-80675 |
US $81.54 |
||
| replacement | |||||
|
48540
|
48540
48531-80803 Absorber Assy, Shock, Rear Rh[12.2002 - 10.2006] XZU330,340..80T MARK 48531-37060 |
48531-80803 |
US $121.36 |
||
|
9011912088
|
9011912088
90119-12088 BOLT |
90119-12088 |
from US $2.09 |
||
|
9017916030
|
9017916030
90179-16030 NUT |
90179-16030 |
US $3.40 |
||
|
9020116035
|
9020116035
90201-16035 New Genuine Part |
90201-16035 |
US $2.15 |
||
|
9111281070
|
9111281070
91112-81070 Bolt(For Intermediate Lever) |
91112-81070 |
US $2.04 |
||
|
9413001002
|
9413001002
94130-01002 Nut, Booster Sleeve Cylinder |
94130-01002 |
from US $0.94 |
||
|
9418461001
|
9418461001
94184-61001 Nut(For Front Stabilizer Bar) |
94184-61001 |
from US $0.78 |
||
|
9453101000
|
9453101000
94531-01000 WASHER |
94531-01000 |
from US $1.61 |
||
|
9645101000
|
9645101000
96451-01000 Nipple, Grease(For Rear Spring Bracket Pin) |
96451-01000 |
from US $2.11 |
||
