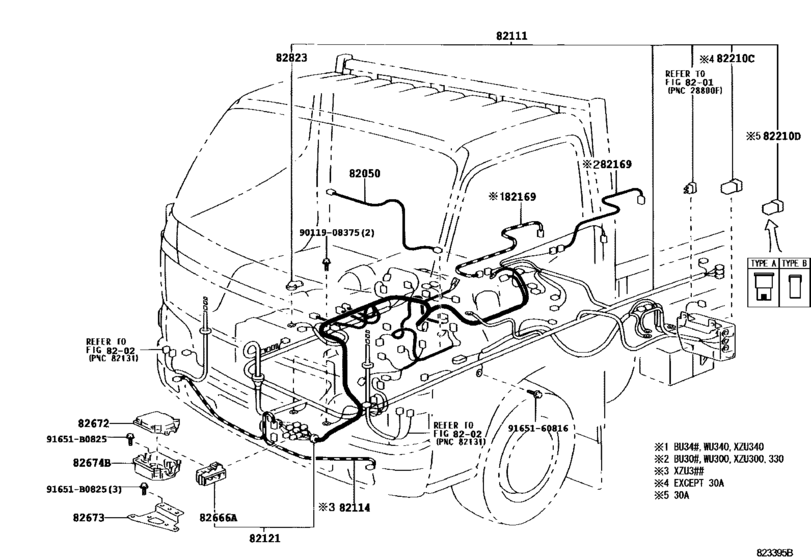

Wiring & Clamp ([12.2002 - 10.2006] ENGINE ROOM & ENGINE (0212-0610)BU300,340,XZU300,320,330,340) Diagram Toyota DYNA/ TOYOACE
- Year
- 2002 - 2006
- Sales region
- General
- Frame
- XZU340
- ENGINE
- 15BFTE
- DESTINATION
- TAIW
- DECK
- T3
- From
- 12.2002
- To
- 10.2006
- Loading Capacity
- 80T
- Driver's Position
- LHD
- Fuel Induction
- TD
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82050
|
82050
82050-37010 Wire Assy, Engine[12.2002 - 10.2006] XZU30#,320,330,340,345 |
82050-37010 |
US $19.22 |
||
|
82111
|
82111
82115-3V720 Wire, Engine Room MainENGINE ROOM MAIN [12.2002 - 10.2006] XZU300,330,340 |
82115-3V720 |
US $2,256.80 |
||
|
82114
|
82114
82114-37010 Wire, Engine Room, No.4[12.2002 - 10.2006] XZU300,320,330,340 |
82114-37010 |
US $57.51 |
||
|
82121
|
82121
82121-3V233 Wire, EngineENGINE [12.2002 - 10.2006] XZU300,330,340 |
82121-3V233 |
US $573.66 |
||
|
82169
|
82169
82169-37030 Wire Frame, No.3[12.2002 - 10.2006] BU343,WU340,XZU340..GCC,GEN,TAIW |
82169-37030 |
US $168.90 |
||
|
82210C
|
82210C
90982-08202 Fusible Link[12.2002 - 10.2006] BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW 60A,TERMINAL:MALE |
90982-08202 |
US $12.54 |
||
|
82210C
|
82210C
90982-08203 Fusible Link[12.2002 - 10.2006] BU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW 80A,TERMINAL:MALE |
90982-08203 |
from US $7.23 |
||
|
82210C
|
82210C
90982-08246 Fusible Link[12.2002 - 10.2006] BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW 100A,TERMINAL:MALE |
90982-08246 |
from US $7.29 |
||
|
82210C
|
82210C
90982-08281 Fusible Link[12.2002 - 10.2006] BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW 40A,TERMINAL:FEMALE |
90982-08281 |
from US $10.57 |
||
|
82210C
|
82210C
90982-08282 Fusible Link[12.2002 - 10.2006] BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW 50A,TERMINAL:FEMALE |
90982-08282 |
from US $7.88 |
||
|
82210D
|
82210D
90982-08280 Fusible Link[12.2002 - 10.2006] BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW 30A,TERMINAL:FEMALE,TYPE B:REFER ILLUST. |
90982-08280 |
from US $3.88 |
||
|
82666A
|
82666A
82666-37130 Holder, Connector No.2[12.2002 - 10.2006] XZU300,320,330,340 |
82666-37130 |
US $26.21 |
||
|
82672
|
82672
82672-37030 Cover, Junktion Block[12.2002 - 10.2006] XZU300,320,330,340 |
82672-37030 |
US $31.27 |
||
|
82673
|
82673
82673-37060 Bracket, Junction BlockJUNCTION BLOCK [12.2002 - 10.2006] XZU300,320,330,340 |
82673-37060 |
US $39.17 |
||
|
82674B
|
82674B
82674-37010 Cover, Junction Block, Lower[12.2002 - 10.2006] XZU300,320,330,340 |
82674-37010 |
US $67.70 |
||
|
82823
|
82823
82823-22050 Cap, Terminal, No.1[09.2002 - 10.2006] BU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW |
82823-22050 |
from US $4.39 |
||
|
91651B0825
|
91651B0825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.84 |
||
|
9011908375
|
9011908375
90119-08375 BOLT |
90119-08375 |
US $1.43 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.01 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 BOLT |
90080-11396 |
US $3.32 |
||
