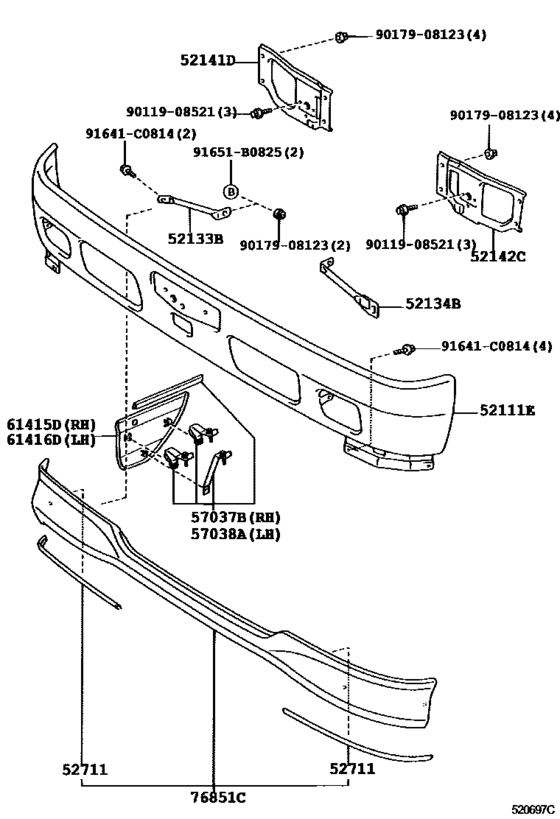

Front Bumper & Bumper Stay ([10.2000 - ] W(FRONT SPOILER) (0010- )XZU302,307,342) Diagram Toyota DYNA/ TOYOACE
- Year
- 2000 - 2002
- Sales region
- Europe
- Frame
- XZU342
- ENGINE
- S05C
- TRANSMISSION
- MTM
- From
- 10.2000
- To
- 06.2002
- Loading Capacity
- 20T
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52111E
|
52111E
52101-37130-A0 Bar, Front Bumper[10.2000 - 06.2002] XZU302,307,342 W(FRONT SPOILER),WHITE,058 |
52101-37130-A0 |
US $698.88 |
||
|
52111E
|
52111E
52101-37130-B0 Bar, Front Bumper[10.2000 - 06.2002] XZU302,307,342 W(FRONT SPOILER),SILVER ME.,199 |
52101-37130-B0 |
US $698.88 |
||
|
52111E
|
52111E
52101-37130-H0 Bar, Front Bumper[10.2000 - 06.2002] XZU302,307,342 W(FRONT SPOILER),TURQUOISE,766 |
52101-37130-H0 |
US $698.88 |
||
|
52111E
|
52111E
52101-37130-J1 Bar, Front Bumper[10.2000 - 06.2002] XZU302,307,342 W(FRONT SPOILER),BLUE,8P0 |
52101-37130-J1 |
US $698.88 |
||
|
52111E
|
52111E
52101-37140 Bar, Front Bumper[10.2000 - 06.2002] XZU302,307,342 CHROME PLATED BUMPER & W(FRONT SPOILER) |
52101-37140 |
US $1,287.10 |
||
|
52111E
|
52111E
52101-37170-A0 Bar, Front Bumper[07.1999 - 12.2002] XZU30#,320,330,34# WHITE,058 |
52101-37170-A0 |
US $708.24 |
||
|
52111E
|
52111E
52101-37170-B0 Bar, Front Bumper[10.2000 - 06.2002] XZU302,307,342 SILVER ME.,199 |
52101-37170-B0 |
US $624.62 |
||
|
52111E
|
52111E
52101-37170-H0 Bar, Front Bumper[10.2000 - 06.2002] XZU302,307,342 TURQUOISE,766 |
52101-37170-H0 |
US $624.62 |
||
|
52111E
|
52111E
52101-37170-J1 Bar, Front Bumper[07.1999 - 06.2002] XZU30#,320,330,34# BLUE,8P0 |
52101-37170-J1 |
US $666.08 |
||
|
52111E
|
52111E
52101-37180 Bar, Front Bumper[10.2000 - 06.2002] XZU302,307,342 CHROME PLATED BUMPER |
52101-37180 |
US $809.54 |
||
|
52133B
|
52133B
52133-37060 Bracket, Front Bumper Extension Mounting, Rh[10.2000 - 06.2002] XZU302,307,342 |
52133-37060 |
US $18.20 |
||
|
52134B
|
52134B
52134-37060 Bracket, Front Bumper Extension Mounting, Lh[10.2000 - 06.2002] XZU302,307,342 |
52134-37060 |
US $19.66 |
||
|
52141D
|
52141D
52141-37100 Stay, Front Bumper, Rh[10.2000 - 06.2002] XZU302,307,342 MARK = R1 |
52141-37100 |
US $48.78 |
||
|
52142C
|
52142C
52142-37080 Stay, Front Bumper, Lh[10.2000 - 06.2002] XZU302,307,342 MARK = L1 |
52142-37080 |
US $48.78 |
||
|
52711
|
52711
52711-37020-A0 Moulding, Front Bumper[10.2000 - 06.2002] XZU302,307,342 WHITE,058 |
52711-37020-A0 |
US $29.85 |
||
|
52711
|
52711
52711-37020-B0 Moulding, Front Bumper[10.2000 - 06.2002] XZU302,307,342 SILVER ME,199 |
52711-37020-B0 |
US $29.85 |
||
|
52711
|
52711
52711-37020-H0 Moulding, Front Bumper[10.2000 - 06.2002] XZU302,307,342 TURQUOISE,766 |
52711-37020-H0 |
US $29.85 |
||
|
52711
|
52711
52711-37020-J0 Moulding, Front Bumper[10.2000 - 06.2002] XZU302,307,342 BLUE,8P0 |
52711-37020-J0 |
US $29.85 |
||
|
52711
|
52711
52711-37040 Moulding, Front Bumper[10.2000 - 06.2002] XZU302,307,342 |
52711-37040 |
US $18.20 |
||
|
57037B
|
57037B
57037-37010 Stay Sub-Assy, Front Step, Rh[10.2000 - 06.2002] XZU302,307,342 |
57037-37010 |
US $50.96 |
||
|
57038A
|
57038A
57037-37010 Stay Sub-Assy, Front Step, Rh[10.2000 - 06.2002] XZU302,307,342 |
57037-37010 |
US $50.96 |
||
|
61415D
|
61415D
61415-37020-A0 Panel, Front Step Under, Rh[10.2000 - 06.2002] XZU302,307,342 WHITE,058 |
61415-37020-A0 |
US $84.45 |
||
|
61415D
|
61415D
61415-37020-B0 Panel, Front Step Under, Rh[10.2000 - 06.2002] XZU302,307,342 SILVER ME.,199 |
61415-37020-B0 |
US $84.45 |
||
|
61415D
|
61415D
61415-37020-H0 Panel, Front Step Under, Rh[10.2000 - 06.2002] XZU302,307,342 TURQUOISE,766 |
61415-37020-H0 |
US $84.45 |
||
|
61415D
|
61415D
61415-37020-J0 Panel, Front Step Under, Rh[10.2000 - 06.2002] XZU302,307,342 BLUE,8P0 |
61415-37020-J0 |
US $84.45 |
||
|
61415D
|
61415D
61415-37030 Panel, Front Step Under, Rh[10.2000 - 06.2002] XZU302,307,342 |
61415-37030 |
US $99 |
||
|
61416D
|
61416D
61416-37020-A0 Panel, Front Step Under, Lh[10.2000 - 06.2002] XZU302,307,342 WHITE,058 |
61416-37020-A0 |
US $84.45 |
||
|
61416D
|
61416D
61416-37020-B0 Panel, Front Step Under, Lh[10.2000 - 06.2002] XZU302,307,342 SILVER ME.,199 |
61416-37020-B0 |
US $84.45 |
||
|
61416D
|
61416D
61416-37020-H0 Panel, Front Step Under, Lh[10.2000 - 06.2002] XZU302,307,342 TURQUOISE,766 |
61416-37020-H0 |
US $84.45 |
||
|
61416D
|
61416D
61416-37020-J0 Panel, Front Step Under, Lh[10.2000 - 06.2002] XZU302,307,342 BLUE,8P0 |
61416-37020-J0 |
US $84.45 |
||
|
61416D
|
61416D
61416-37030 Panel, Front Step Under, Lh[10.2000 - 06.2002] XZU302,307,342 |
61416-37030 |
US $109.20 |
||
|
76851C
|
76851C
52102-37010-A1 Front Spoiler[10.2000 - 06.2002] XZU302,307,342 WHITE,058 |
52102-37010-A1 |
US $1,045.41 |
||
|
76851C
|
76851C
52102-37010-B1 Front Spoiler[10.2000 - 06.2002] XZU302,307,342 SILVER ME,199 |
52102-37010-B1 |
US $1,045.41 |
||
|
76851C
|
76851C
52102-37010-H1 Front Spoiler[10.2000 - 06.2002] XZU302,307,342 TURQUOISE,766 |
52102-37010-H1 |
US $1,045.41 |
||
|
76851C
|
76851C
52102-37010-J1 Front Spoiler[10.2000 - 06.2002] XZU302,307,342 BLUE,8P0 |
52102-37010-J1 |
US $1,045.41 |
||
|
76851C
|
76851C
52102-37020 Front Spoiler[10.2000 - 06.2002] XZU302,307,342 |
52102-37020 |
US $1,499.68 |
||
|
91641C0814
|
91641C0814
91641-C0814 BOLT W-WASHER |
91641-C0814 |
US $1.79 |
||
|
91651B0825
|
91651B0825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.84 |
||
|
9011908521
|
9011908521
90119-08521 Bolt(For Body Mounting No.1 Cushion) |
90119-08521 |
US $1.61 |
||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $0.80 |
