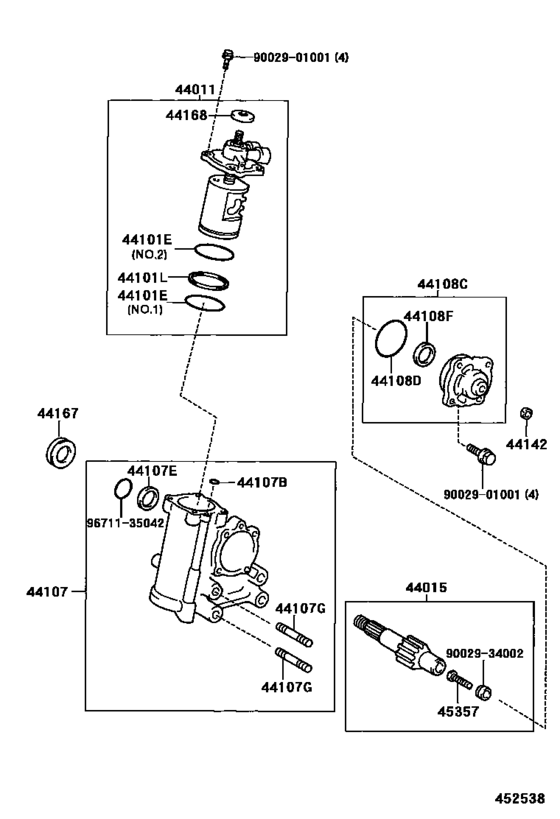

Front Steering Gear & Link ([10.2000 - ] (0010- )XZU302,342) Diagram Toyota DYNA/ TOYOACE
- Year
- 2000 - 2002
- Sales region
- Europe
- Frame
- XZU342
- ENGINE
- S05C
- TRANSMISSION
- MTM
- From
- 10.2000
- To
- 06.2002
- Loading Capacity
- 20T
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44011
|
44011
44011-37110 Piston Sub-Assy, Power[10.2000 - 06.2002] XZU302,342 |
44011-37110 |
US $1,236.14 |
||
|
44015
|
44015
44015-37110 Shaft Sub-Assy, Sector[07.1999 - 12.2002] XZU300,302,320,330,34# |
44015-37110 |
US $391.66 |
||
|
44101E
|
44101E
90029-20006 Ring, O(For Steering Worm)[07.1999 - 12.2002] XZU300,302,320,330,34# NO.2 |
90029-20006 |
US $4.72 |
||
|
44101E
|
44101E
90029-20047 Ring, O(For Steering Worm)[07.1999 - 12.2002] XZU300,302,320,330,34# NO.1 |
90029-20047 |
US $2.80 |
||
|
44101L
|
44101L
90029-20708 Seal, Dust(For Steering Worm)[07.1999 - 12.2002] XZU300,302,320,330,34# |
90029-20708 |
US $2.62 |
||
|
44107
|
44107
44107-37090 Housing Sub-Assy, Power Steering Gear[10.2000 - 06.2002] XZU302,342 |
44107-37090 |
US $393.12 |
||
|
44107B
|
44107B
90029-20061 Ring, O(For Power Steering Gear Housing)[07.1999 - 12.2002] XZU300,302,320,330,34# |
90029-20061 |
US $2.62 |
||
|
44107E
|
44107E
90029-21023 Seal, Oil(For Power Steering Gear Housing)[07.1999 - 12.2002] XZU300,302,320,330,34# |
90029-21023 |
US $5.02 |
||
|
44107G
|
44107G
90029-01502 Bolt, Stud(For Power Steering Gear Housing)[07.1999 - 12.2002] XZU300,302,330,34# |
90029-01502 |
US $4.95 |
||
|
44108C
|
44108C
44108-37110 Cover Sub-Assy, Side[07.1999 - 12.2002] XZU300,302,320,330,34# |
44108-37110 |
US $165.98 |
||
|
44108D
|
44108D
90029-20006 Ring, O(For Steering Worm)[07.1999 - 12.2002] XZU300,302,320,330,34# |
90029-20006 |
US $4.72 |
||
|
44108F
|
44108F
90029-21023 Seal, Oil(For Power Steering Gear Housing)[07.1999 - 12.2002] XZU300,302,320,330,34# |
90029-21023 |
US $5.02 |
||
|
44142
|
44142
44142-37010 Nut, Lock[07.1999 - 12.2002] XZU300,302,320,330,34# |
44142-37010 |
US $5.42 |
||
|
44167
|
44167
44167-37010 Cover, Sector Shaft Dust[07.1999 - 12.2002] XZU300,302,320,330,34# |
44167-37010 |
US $4.89 |
||
|
44168
|
44168
44168-25010 Cover, Worm Shaft Dust[07.1999 - 12.2002] XZU300,302,320,330,34# |
44168-25010 |
US $10.66 |
||
|
45357
|
45357
90029-02302 Screw, Sector Shaft Adjusting[07.1999 - 12.2002] XZU300,302,320,330,34# |
90029-02302 |
US $2.91 |
||
|
9002901001
|
9002901001
90029-01001 New Genuine Part |
90029-01001 |
US $1.02 |
||
|
9002934002
|
9002934002
90029-34002 New Genuine Part |
90029-34002 |
US $2.77 |
||
|
9671135042
|
9671135042
96711-35042 Ring, O(For Power Steering Gear Housing) |
96711-35042 |
US $2.62 |
