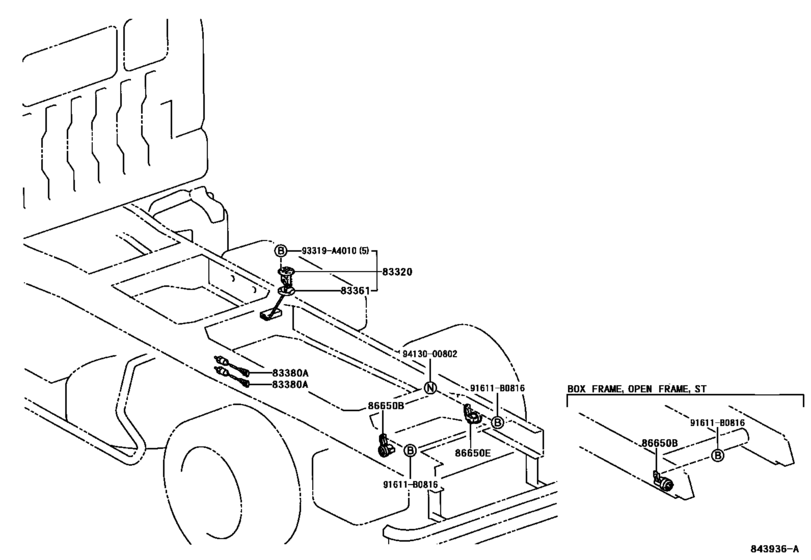

Switch & Relay & Computer ([10.2000 - ] REAR BODY (0010- )XZU302,307,342) Diagram Toyota DYNA/ TOYOACE
- Year
- 2000 - 2002
- Sales region
- Europe
- Frame
- XZU342
- ENGINE
- S05C
- TRANSMISSION
- MTM
- From
- 10.2000
- To
- 06.2002
- Loading Capacity
- 20T
- Rear Tire
- WT
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-80374 Gage Assy, Fuel Sender[07.1999 - 12.2002] XZU30#,320,330,34# |
83320-80374 |
from US $45.86 |
||
|
83361
|
83361
83361-20030 Gasket, Fuel Tank Vent[07.1999 - 12.2002] XZU30#,320,330,34# |
83361-20030 |
from US $2.30 |
||
|
86650B
|
86650B
86650-37050 Buzzer Assy, Reverse Warning[07.1999 - 12.2002] XZU30#,320,330,34# |
86650-37050 |
US $106.60 |
||
|
91611B0816
|
91611B0816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
93319A4010
|
93319A4010
93319-A4010 SCREW WWASHER |
93319-A4010 |
from US $0.68 |
||
|
9413000802
|
9413000802
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
