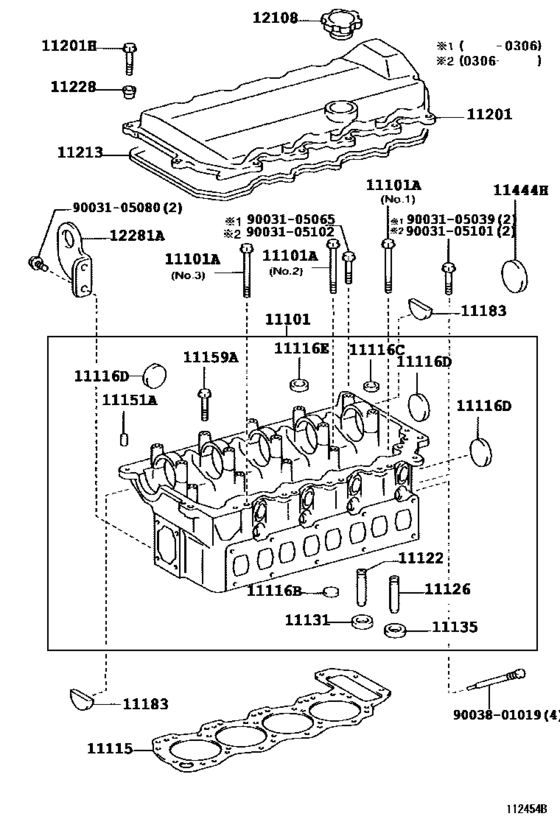

Cylinder Head ([09.2002 - 12.2006] (0209-0612)S05C) Diagram Toyota DYNA/ TOYOACE
- Year
- 2002 - 2006
- Sales region
- General
- Frame
- XZU342
- ENGINE
- S05C
- DESTINATION
- IDN
- DECK
- T3
- From
- 09.2002
- To
- 12.2006
- Loading Capacity
- 65T
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-78061 Head Sub-Assy, Cylinder[09.2002 - 11.2004] S05C..XZU342 |
11101-78061 |
US $2,649.92 |
||
| replacement | |||||
|
11101
|
11101
11101-78064 Head Sub-assy, Cylinder[09.2002 - 11.2004] S05C..XZU342 |
11101-78064 |
US $2,213.12 |
||
|
11101
|
11101
11101-78062 Head Sub-Assy, CylinderCYLINDER [11.2004 - 12.2006] S05C..XZU342 |
11101-78062 |
US $2,664.48 |
||
| replacement | |||||
|
11101
|
11101
11101-78064 Head Sub-assy, Cylinder[11.2004 - 12.2006] S05C..XZU342 |
11101-78064 |
US $2,213.12 |
||
|
11101A
|
11101A
90031-09051 Bolt(For Cylinder Head Set)[09.2002 - 12.2006] S05C..XZU342 NO.1 |
90031-09051 |
US $9.46 |
||
| replacement | |||||
|
11101A
|
11101A
S1118-52261 Bolt(For Cylinder Head Set)[09.2002 - 12.2006] S05C..XZU342 NO.1 |
S1118-52261 |
US $29.40 |
||
|
11101A
|
11101A
90038-01023 Bolt(For Cylinder Head Set)[09.2002 - 12.2006] S05C..XZU342 NO.2 |
90038-01023 |
US $6.55 |
||
| replacement | |||||
|
11101A
|
11101A
S1118-52450 Bolt(For Cylinder Head Set)[09.2002 - 12.2006] S05C..XZU342 NO.2 |
S1118-52450 |
US $9.43 |
||
|
11101A
|
11101A
90038-01024 Bolt(For Cylinder Head Set)[09.2002 - 12.2006] S05C..XZU342 NO.3 |
90038-01024 |
US $6.55 |
||
| replacement | |||||
|
11101A
|
11101A
S1118-52460 Bolt(For Cylinder Head Set)[09.2002 - 12.2006] S05C..XZU342 NO.3 |
S1118-52460 |
US $18.98 |
||
|
11115
|
11115
11115-78030 Gasket, Cylinder Head[09.2002 - 12.2003] S05C..XZU342 |
11115-78030 |
US $206.75 |
||
| replacement | |||||
|
11115
|
11115
11115-E0150 Gasket, Cylinder Head[09.2002 - 12.2003] S05C..XZU342 |
11115-E0150 |
US $248.66 |
||
|
11115
|
11115
11115-78060
Gasket, Cylinder Head
[12.2003 - 12.2006] S05C..XZU342 |
11115-78060 |
— | ||
| replacements | |||||
|
11115
|
11115
11115-E0150 Gasket, Cylinder Head[12.2003 - 12.2006] S05C..XZU342 |
11115-E0150 |
US $248.66 |
||
|
11115
|
11115
11115-E0151 Gasket, Cylinder Head[12.2003 - 12.2006] S05C..XZU342 |
11115-E0151 |
US $176.80 |
||
|
11116B
|
11116B
90033-31024 Plug, Tight, No.2[09.2002 - 12.2006] S05C..XZU342 |
90033-31024 |
US $4.22 |
||
|
11116C
|
11116C
90033-31020 Plug, Tight, No.3[09.2002 - 12.2006] S05C..XZU342 |
90033-31020 |
US $1.16 |
||
|
11116D
|
11116D
90033-31023 Plug, Tight, No.4[09.2002 - 12.2006] S05C..XZU342 |
90033-31023 |
US $7.43 |
||
|
11116E
|
11116E
90033-31022 Plug, Tight, No.5[09.2002 - 12.2006] S05C..XZU342 |
90033-31022 |
US $1.60 |
||
| replacement | |||||
|
11116E
|
11116E
SN411-02216 Plug, Tight, No.5[09.2002 - 12.2006] S05C..XZU342 |
SN411-02216 |
US $7.17 |
||
|
11122
|
11122
11122-89101 Bush, Intake Valve Guide[09.2002 - 12.2006] N04C,S05C..XZU305,342,345 STD |
11122-89101 |
US $10.19 |
||
| replacement | |||||
|
11122
|
11122
S1112-21220 Bush, Intake Valve Guide[09.2002 - 12.2006] N04C,S05C..XZU305,342,345 STD |
S1112-21220 |
US $10.93 |
||
|
11126
|
11126
11122-89101 Bush, Intake Valve Guide[09.2002 - 12.2006] N04C,S05C..XZU305,342,345 STD |
11122-89101 |
US $10.19 |
||
| replacement | |||||
|
11126
|
11126
S1112-21220 Bush, Intake Valve Guide[09.2002 - 12.2006] N04C,S05C..XZU305,342,345 STD |
S1112-21220 |
US $10.93 |
||
|
11131
|
11131
11131-78040 Seat, Intake Valve[09.2002 - 12.2006] S05C..XZU342 STD |
11131-78040 |
US $30.14 |
||
| replacement | |||||
|
11131
|
11131
11131-E0030 Seat, Intake Valve[09.2002 - 12.2006] S05C..XZU342 STD |
11131-E0030 |
US $37.13 |
||
|
11135
|
11135
11135-78030 Seat, Exhaust Valve[09.2002 - 12.2006] S05C..XZU342 STD |
11135-78030 |
US $30.14 |
||
| replacement | |||||
|
11135
|
11135
11135-E0061 Seat, Exhaust Valve[09.2002 - 12.2006] S05C..XZU342 STD |
11135-E0061 |
US $40.77 |
||
|
11151A
|
11151A
90032-50046 Pin, Ring(For Camshaft Bearing Cap Setting)[09.2002 - 12.2006] S05C..XZU342 |
90032-50046 |
US $1.02 |
||
|
11159A
|
11159A
90031-05130 Bolt(For Head To Camshaft Bearing Cap)[09.2002 - 12.2006] S05C..XZU342 |
90031-05130 |
US $1.79 |
||
|
11183
|
11183
11183-78012 Plug, Semicircular[09.2002 - 12.2006] S05C..XZU342 |
11183-78012 |
US $8.74 |
||
| replacement | |||||
|
11183
|
11183
11188-E0010 Plug, Semicircular[09.2002 - 12.2006] S05C..XZU342 |
11188-E0010 |
US $17.56 |
||
|
11201
|
11201
11211-78021 Cover Sub-Assy, Cylinder Head[09.2002 - 12.2006] S05C..XZU342 |
11211-78021 |
US $406.22 |
||
| replacement | |||||
|
11201
|
11201
S1121-12993 Cover Sub-Assy, Cylinder Head[09.2002 - 12.2006] S05C..XZU342 |
S1121-12993 |
US $444.08 |
||
|
11201H
|
11201H
90031-05128 Bolt(For Cylinder Head Cover)[09.2002 - 12.2006] S05C..XZU342 |
90031-05128 |
US $1.79 |
||
|
11213
|
11213
11213-78020
Gasket, Cylinder Head Cover
[09.2002 - 12.2006] S05C..XZU342 |
11213-78020 |
— | ||
| replacement | |||||
|
11213
|
11213
S1121-32020 Gasket, Cylinder Head Cover[09.2002 - 12.2006] S05C..XZU342 |
S1121-32020 |
US $54.60 |
||
|
11228
|
11228
11228-78010 Cushion, Cylinder Head Cover[09.2002 - 12.2006] S05C..XZU342 |
11228-78010 |
US $10.19 |
||
| replacement | |||||
|
11228
|
11228
S1250-51101 Cushion, Cylinder Head Cover[09.2002 - 12.2006] S05C..XZU342 |
S1250-51101 |
US $15.59 |
||
|
11444H
|
11444H
11444-78010 Plug, Hole(For Cylinder Head)[09.2002 - 12.2006] S05C..XZU342 |
11444-78010 |
US $7.28 |
||
| replacement | |||||
|
11444H
|
11444H
S1119-81060 Plug, Hole(For Cylinder Head)[09.2002 - 12.2006] S05C..XZU342 |
S1119-81060 |
US $10.21 |
||
|
12108
|
12108
12108-78010 Cap Sub-Assy, Oil Filler[09.2002 - 12.2006] W04D..WU300,340..IDN; N04C,S05C..XZU305,342,345 |
12108-78010 |
US $13.98 |
||
| replacement | |||||
|
12108
|
12108
12180-E0010 Cap Sub-Assy, Oil Filler[09.2002 - 12.2006] W04D..WU300,340..IDN; N04C,S05C..XZU305,342,345 |
12180-E0010 |
from US $13.34 |
||
|
12281A
|
12281A
12281-78030
Hanger, Engine, No.1
[09.2002 - 12.2006] S05C..XZU342 |
12281-78030 |
— | ||
| replacement | |||||
|
12281A
|
12281A
S1228-12191 Hanger, Engine, No.1[09.2002 - 12.2006] S05C..XZU342 |
S1228-12191 |
US $34.22 |
||
|
9003105039
|
9003105039
90031-05039 New Genuine Part |
90031-05039 |
US $3.06 |
||
|
9003105065
|
9003105065
90031-05065 New Genuine Part |
90031-05065 |
US $8.01 |
||
|
9003105080
|
9003105080
90031-05080 New Genuine Part |
90031-05080 |
US $2.91 |
||
|
9003105101
|
9003105101
90031-05101 New Genuine Part |
90031-05101 |
US $2.91 |
||
|
9003105102
|
9003105102
90031-05102 New Genuine Part |
90031-05102 |
US $3.35 |
||
|
9003801019
|
9003801019
90038-01019 BOLT |
90038-01019 |
US $4.80 |
||
| replacement | |||||
|
9003801019
|
9003801019
SZ910-24358 BOLT |
SZ910-24358 |
US $13.44 |
||
