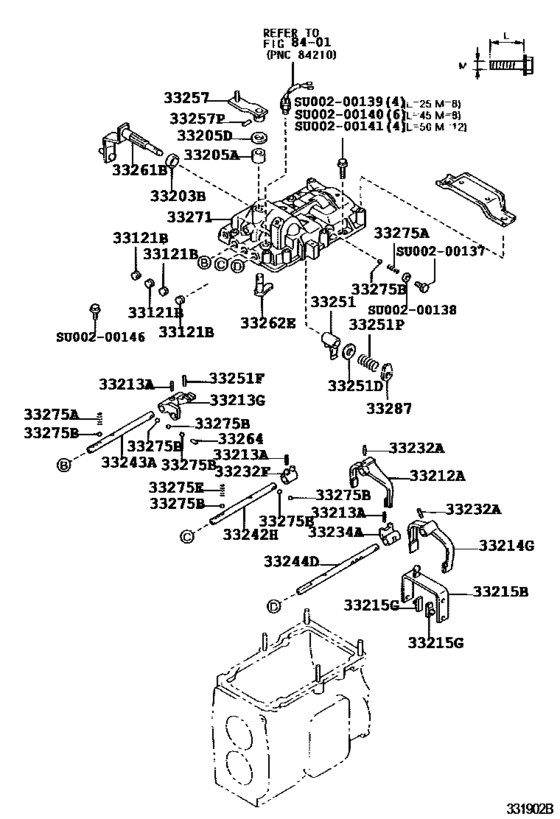

Gear Shift Fork & Lever Shaft (Mtm) ([09.2002 - 04.2004] MXA5R (0209-0404)XZU342) Diagram Toyota DYNA/ TOYOACE
- Year
- 2002 - 2006
- Sales region
- General
- Frame
- XZU342
- ENGINE
- S05C
- DESTINATION
- IDN
- DECK
- T3
- From
- 09.2002
- To
- 12.2006
- Loading Capacity
- 65T
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33121B
|
33121B
SU002-00133
Plug, Expansion Or Tight(For Transmission Case Cover)
[09.2002 - 04.2004] XZU342 |
SU002-00133 |
— | ||
|
33203B
|
33203B
SU002-00100
Seal, Oil(For Shift Lever Shaft)
[09.2002 - 04.2004] XZU342 |
SU002-00100 |
— | ||
|
33203B
|
33203B
SU002-00263 Seal, Oil(For Shift Lever Shaft)[04.2004 - 08.2004] XZU342 |
SU002-00263 |
US $16.02 |
||
|
33205A
|
33205A
SU002-00099
Seal, Oil(For Shift Lever No.2 Shaft)
[09.2002 - 04.2004] XZU342 |
SU002-00099 |
— | ||
|
33205A
|
33205A
SU002-00264 Seal, Oil(For Shift Lever No.2 Shaft)[04.2004 - 08.2004] XZU342 |
SU002-00264 |
US $9.90 |
||
|
33205D
|
33205D
SU002-00110
Washer(For Outer Lever Oil Setting)
[09.2002 - 04.2004] XZU342 |
SU002-00110 |
— | ||
|
33205D
|
33205D
SU002-00257 Washer(For Outer Lever Oil Setting)[04.2004 - 08.2004] XZU342 |
SU002-00257 |
US $3.93 |
||
|
33212A
|
33212A
SU002-00125
Fork, Gear Shift, No.1
[09.2002 - 04.2004] XZU342 |
SU002-00125 |
— | ||
|
33212A
|
33212A
SU002-00240 Fork, Gear Shift, No.1[04.2004 - 12.2006] XZU342 |
SU002-00240 |
US $77.17 |
||
|
33213A
|
33213A
SU002-00107
Pin, Slotted Spring(For Shift Fork Set)
[09.2002 - 04.2004] XZU342 |
SU002-00107 |
— | ||
|
33213G
|
33213G
SU002-00122
Fork, Gear Shift, No.2
[09.2002 - 04.2004] XZU342 |
SU002-00122 |
— | ||
|
33213G
|
33213G
SU002-00242 Fork, Gear Shift, No.2[04.2004 - 08.2004] XZU342 |
SU002-00242 |
US $122.30 |
||
|
33214G
|
33214G
SU002-00131
Fork, Gear Shift, No.3
[09.2002 - 04.2004] XZU342 |
SU002-00131 |
— | ||
|
33214G
|
33214G
SU002-00245 Fork, Gear Shift, No.3[04.2004 - 12.2006] XZU342 |
SU002-00245 |
US $63.48 |
||
|
33215B
|
33215B
SU002-00143
Fork, Gear Shift, No.4
[09.2002 - 04.2004] XZU342 |
SU002-00143 |
— | ||
|
33215G
|
33215G
SU002-00144
Piece, Shift
[09.2002 - 04.2004] XZU342 |
SU002-00144 |
— | ||
|
33232A
|
33232A
SU002-00127 Pin, Slotted Spring (For Shift Head Set)[09.2002 - 04.2004] XZU342 |
SU002-00127 |
US $3.79 |
||
|
33232F
|
33232F
SU002-00124
Head, Gear Shift, No.1
[09.2002 - 04.2004] XZU342 |
SU002-00124 |
— | ||
|
33232F
|
33232F
SU002-00244 Head, Gear Shift, No.1[04.2004 - 12.2006] XZU342 |
SU002-00244 |
US $42.22 |
||
|
33234A
|
33234A
SU002-00130
Head, Gear Shift, No.3
[09.2002 - 04.2004] XZU342 |
SU002-00130 |
— | ||
|
33234A
|
33234A
SU002-00281 Head, Gear Shift, No.3[04.2004 - 12.2006] XZU342 |
SU002-00281 |
US $106.29 |
||
|
33242H
|
33242H
SU002-00126
Shaft, Gear Shift Fork, No.1
[09.2002 - 04.2004] XZU342 |
SU002-00126 |
— | ||
|
33242H
|
33242H
SU002-00276 Shaft, Gear Shift Fork, No.1[04.2004 - 12.2006] XZU342 |
SU002-00276 |
US $34.07 |
||
|
33243A
|
33243A
SU002-00123
Shaft, Gear Shift Fork, No.2
[09.2002 - 04.2004] XZU342 |
SU002-00123 |
— | ||
|
33243A
|
33243A
SU002-00280 Shaft, Gear Shift Fork, No.2[04.2004 - 12.2006] XZU342 |
SU002-00280 |
US $54.16 |
||
|
33244D
|
33244D
SU002-00132
Shaft, Gear Shift Fork, No.3
[09.2002 - 04.2004] XZU342 |
SU002-00132 |
— | ||
|
33251
|
33251
SU002-00111
Lever, Shift & Select
[09.2002 - 04.2004] XZU342 |
SU002-00111 |
— | ||
|
33251
|
33251
SU002-00249 Lever, Shift & Select[04.2004 - 08.2004] XZU342 |
SU002-00249 |
US $60.72 |
||
|
33251D
|
33251D
SU002-00117
Washer, Lock (For Shift & Select Lever)
[09.2002 - 04.2004] XZU342 |
SU002-00117 |
— | ||
|
33251F
|
33251F
SU002-00116
Pin Or Bolt (For Shift & Select Lever)
[09.2002 - 04.2004] XZU342 |
SU002-00116 |
— | ||
|
33251P
|
33251P
SU002-00118
Spring (For Shift & Select Lever)
[09.2002 - 04.2004] XZU342 |
SU002-00118 |
— | ||
|
33251P
|
33251P
SU002-00268 Spring (For Shift & Select Lever)[04.2004 - 08.2004] XZU342 NO.1 |
SU002-00268 |
US $4.22 |
||
|
33251P
|
33251P
SU002-00269 Spring (For Shift & Select Lever)[04.2004 - 08.2004] XZU342 NO.2 |
SU002-00269 |
US $4.22 |
||
|
33257
|
33257
SU002-00104
Lever, Select Outer
[09.2002 - 04.2004] XZU342 |
SU002-00104 |
— | ||
|
33257
|
33257
SU002-00253 Lever, Select Outer[04.2004 - 08.2004] XZU342 |
SU002-00253 |
US $68.58 |
||
|
33257P
|
33257P
SU002-00107
Pin, Slotted Spring(For Shift Fork Set)
[09.2002 - 04.2004] XZU342 |
SU002-00107 |
— | ||
|
33257P
|
33257P
SU002-00271 Pin, Select Outer Lever Lock[04.2004 - 08.2004] XZU342 |
SU002-00271 |
US $1.89 |
||
|
33261B
|
33261B
SU002-00112
Shaft, Shift Lever
[09.2002 - 04.2004] XZU342 |
SU002-00112 |
— | ||
|
33262E
|
33262E
SU002-00101
Shaft, Select Lever
[09.2002 - 04.2004] XZU342 |
SU002-00101 |
— | ||
|
33262E
|
33262E
SU002-00252 Shaft, Select Lever[04.2004 - 08.2004] XZU342 |
SU002-00252 |
US $46.45 |
||
|
33264
|
33264
SU002-00136
Pin, Or Ball, Shift Inter Lock, No.1
[09.2002 - 04.2004] XZU342 |
SU002-00136 |
— | ||
|
33271
|
33271
SU002-00097
Housing, Shift Lever Shaft
[09.2002 - 04.2004] XZU342 |
SU002-00097 |
— | ||
|
33275A
|
33275A
SU002-00119
Spring, Compression (For Shift Detent Ball Low Side)
[09.2002 - 04.2004] XZU342 |
SU002-00119 |
— | ||
|
33275B
|
33275B
SU002-00134
Ball, Shaft Detent
[09.2002 - 04.2004] XZU342 |
SU002-00134 |
— | ||
|
33275E
|
33275E
SU002-00135
Spring, Compression (For Shift Detent Ball)
[09.2002 - 04.2004] XZU342 |
SU002-00135 |
— | ||
|
33287
|
33287
SU002-00115
Lever, Switch Pressure
[09.2002 - 04.2004] XZU342 |
SU002-00115 |
— | ||
|
SU00200137
|
SU00200137
SU002-00137
New Genuine Part
|
SU002-00137 |
— | ||
|
SU00200138
|
SU00200138
SU002-00138
New Genuine Part
|
SU002-00138 |
— | ||
|
SU00200139
|
SU00200139
SU002-00139
New Genuine Part
|
SU002-00139 |
— | ||
|
SU00200140
|
SU00200140
SU002-00140
New Genuine Part
|
SU002-00140 |
— | ||
|
SU00200141
|
SU00200141
SU002-00141
New Genuine Part
|
SU002-00141 |
— | ||
|
SU00200146
|
SU00200146
SU002-00146
New Genuine Part
|
SU002-00146 |
— |
