Injection Pump Body ([09.2002 - ] (0209- )S05C) Diagram Toyota DYNA/ TOYOACE
- Year
- 2002 - 2006
- Sales region
- General
- Frame
- XZU342
- ENGINE
- S05C
- DESTINATION
- IDN
- DECK
- T3
- From
- 09.2002
- To
- 12.2006
- Loading Capacity
- 65T
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|

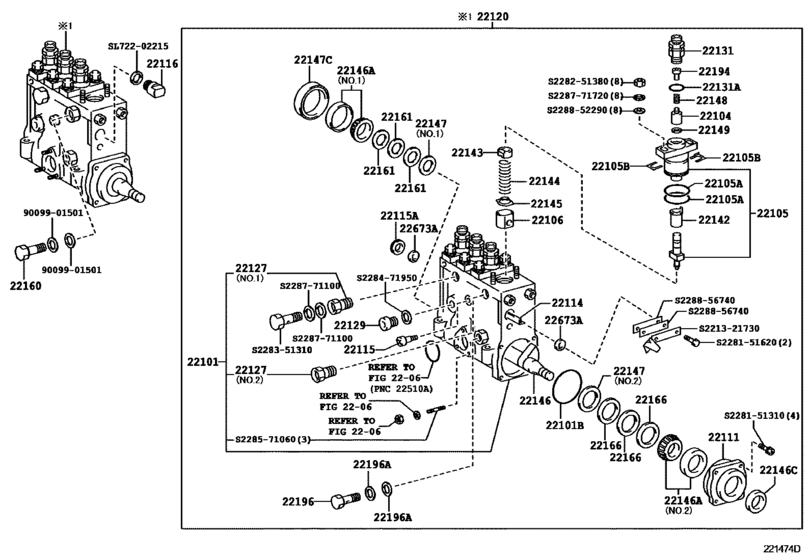

22101
|
22101
S2210-14380
Housing Sub-Assy, Injection Pump
[09.2002 - 12.2006] S05C..XZU342 |
S2210-14380 |
— | ||
|
22101B
|
22101B
S2281-71470 Ring, O(For Injection Pump Housing)[09.2002 - 12.2006] S05C..XZU342 |
S2281-71470 |
US $6.44 |
||
|
22104
|
22104
S2210-32390 Valve Sub-Assy, Injection Pump Delivery[09.2002 - 12.2006] S05C..XZU342 |
S2210-32390 |
US $40.77 |
||
|
22105
|
22105
S2210-44321 Element Sub-Assy, Injection Pump[09.2002 - 12.2006] S05C..XZU342 |
S2210-44321 |
US $107.74 |
||
|
22105A
|
22105A
S2281-72280 Ring, O(For Pump Element)[09.2002 - 12.2006] S05C..XZU342 |
S2281-72280 |
US $3.35 |
||
|
22105B
|
22105B
S2288-52300
Shim(For Injection Pump Element)
[09.2002 - 12.2006] S05C..XZU342 T=1.75 |
S2288-52300 |
— | ||
|
22105B
|
22105B
S2288-52310
Shim(For Injection Pump Element)
[09.2002 - 12.2006] S05C..XZU342 T=1.80 |
S2288-52310 |
— | ||
| replacement | |||||
|
22105B
|
22105B
S2288-52311
Shim(For Injection Pump Element)
[09.2002 - 12.2006] S05C..XZU342 T=1.80 |
S2288-52311 |
— | ||
|
22105B
|
22105B
S2288-52350
Shim(For Injection Pump Element)
[09.2002 - 12.2006] S05C..XZU342 T=1.40 |
S2288-52350 |
— | ||
|
22105B
|
22105B
S2288-52360
Shim(For Injection Pump Element)
[09.2002 - 12.2006] S05C..XZU342 T=1.50 |
S2288-52360 |
— | ||
|
22105B
|
22105B
S2288-52370
Shim(For Injection Pump Element)
[09.2002 - 12.2006] S05C..XZU342 T=1.35 |
S2288-52370 |
— | ||
|
22105B
|
22105B
S2288-52390
Shim(For Injection Pump Element)
[09.2002 - 12.2006] S05C..XZU342 T=1.55 |
S2288-52390 |
— | ||
|
22105B
|
22105B
S2288-52400
Shim(For Injection Pump Element)
[09.2002 - 12.2006] S05C..XZU342 T=1.60 |
S2288-52400 |
— | ||
|
22105B
|
22105B
S2288-52410
Plate, Tappet Adjusting Shim
[09.2002 - 12.2006] S05C..XZU342 T=1.65 |
S2288-52410 |
— | ||
| replacement | |||||
|
22105B
|
22105B
S2288-52411
Plate, Tappet Adjusting Shim
[09.2002 - 12.2006] S05C..XZU342 T=1.65 |
S2288-52411 |
— | ||
|
22105B
|
22105B
S2288-52420
Shim(For Injection Pump Element)
[09.2002 - 12.2006] S05C..XZU342 T=1.70 |
S2288-52420 |
— | ||
| replacement | |||||
|
22105B
|
22105B
S2288-52421
Shim(For Injection Pump Element)
[09.2002 - 12.2006] S05C..XZU342 T=1.70 |
S2288-52421 |
— | ||
|
22105B
|
22105B
S2288-57900
Shim(For Injection Pump Element)
[09.2002 - 12.2006] S05C..XZU342 T=1.45 |
S2288-57900 |
— | ||
|
22105B
|
22105B
S2288-58170
Shim(For Injection Pump Element)
[09.2002 - 12.2006] S05C..XZU342 T=1.20 |
S2288-58170 |
— | ||
|
22105B
|
22105B
S2288-58180
Shim(For Injection Pump Element)
[09.2002 - 12.2006] S05C..XZU342 T=1.30 |
S2288-58180 |
— | ||
|
22105B
|
22105B
S2288-58200
Shim(For Injection Pump Element)
[09.2002 - 12.2006] S05C..XZU342 T=1.25 |
S2288-58200 |
— | ||
|
22105B
|
22105B
S2288-58220
Shim(For Injection Pump Element)
[09.2002 - 12.2006] S05C..XZU342 T=1.15 |
S2288-58220 |
— | ||
|
22106
|
22106
S2210-51480 Tappet Sub-Assy, Injection Pump[09.2002 - 12.2006] S05C..XZU342 |
S2210-51480 |
US $42.81 |
||
|
22111
|
22111
S2211-11320
Cover, Injection Pump Camshaft Bearing
[09.2002 - 12.2006] S05C..XZU342 |
S2211-11320 |
— | ||
|
22114
|
22114
S2211-31870
Rack, Control
[09.2002 - 12.2006] S05C..XZU342 |
S2211-31870 |
— | ||
|
22115
|
22115
S2281-14850
Screw, Rack Guide
[09.2002 - 12.2006] S05C..XZU342 |
S2281-14850 |
— | ||
| replacement | |||||
|
22115
|
22115
22115-78140 Screw, Rack Guide[09.2002 - 12.2006] S05C..XZU342 |
22115-78140 |
US $1.89 |
||
|
22115A
|
22115A
S2213-11190
Bush, Driveshaft
[09.2002 - 12.2006] S05C..XZU342 |
S2213-11190 |
— | ||
|
22116
|
22116
S2211-41200
Cover, Control Rack
[09.2002 - 12.2006] S05C..XZU342 |
S2211-41200 |
— | ||
|
22120
|
22120
S2211-03690
Body Assy,injection
[09.2002 - 12.2006] S05C..XZU342 |
S2211-03690 |
— | ||
|
22127
|
22127
S2213-11580
Union, Injection Pump Fuel Inlet
[09.2002 - 12.2006] S05C..XZU342 NO.1 |
S2213-11580 |
— | ||
|
22127
|
22127
S2213-11590
Union, Injection Pump Fuel Inlet
[09.2002 - 12.2006] S05C..XZU342 NO.2 |
S2213-11590 |
— | ||
|
22129
|
22129
S2284-51280 Plug, Screw[09.2002 - 12.2006] S05C..XZU342 |
S2284-51280 |
US $4.51 |
||
|
22131
|
22131
S2211-61230
Holder, Delivery Valve
[09.2002 - 12.2006] S05C..XZU342 |
S2211-61230 |
— | ||
|
22131A
|
22131A
S2281-71260
Ring, O(For Delivery Valve Holder)
[09.2002 - 12.2006] S05C..XZU342 |
S2281-71260 |
— | ||
| replacement | |||||
|
22131A
|
22131A
90099-14070
Ring, O(For Delivery Valve Holder)
[09.2002 - 12.2006] S05C..XZU342 |
90099-14070 |
— | ||
|
22142
|
22142
S2211-81320
Sleeve, Plunger Control
[09.2002 - 12.2006] S05C..XZU342 |
S2211-81320 |
— | ||
|
22143
|
22143
S2211-91090
Seat, Spring Upper
[09.2002 - 12.2006] S05C..XZU342 |
S2211-91090 |
— | ||
| replacement | |||||
|
22143
|
22143
S2211-91140
Seat, Spring Upper
[09.2002 - 12.2006] S05C..XZU342 |
S2211-91140 |
— | ||
|
22144
|
22144
S2212-11110
Spring, Pump Plunger
[09.2002 - 12.2006] S05C..XZU342 |
S2212-11110 |
— | ||
|
22145
|
22145
S2212-21100
Seat, Spring, Lower
[09.2002 - 12.2006] S05C..XZU342 |
S2212-21100 |
— | ||
|
22146
|
22146
S2212-32390
Camshaft, Injection Pump
[09.2002 - 12.2006] S05C..XZU342 |
S2212-32390 |
— | ||
|
22146A
|
22146A
S2283-71050
Bearing(For Injection Camshaft)
[09.2002 - 12.2006] S05C..XZU342 NO.2 |
S2283-71050 |
— | ||
|
22146A
|
22146A
S2283-71180
Bearing(For Injection Camshaft)
[09.2002 - 12.2006] S05C..XZU342 NO.1 |
S2283-71180 |
— | ||
|
22146C
|
22146C
S2282-71750
Seal, Oil, Injection Pump Camshaft
[09.2002 - 12.2006] S05C..XZU342 |
S2282-71750 |
— | ||
|
22147
|
22147
S2212-41090
Ring, Camshaft Adjust
[09.2002 - 12.2006] S05C..XZU342 NO.1 |
S2212-41090 |
— | ||
| replacement | |||||
|
22147
|
22147
22147-78030
Ring, Camshaft Adjust
[09.2002 - 12.2006] S05C..XZU342 NO.1 |
22147-78030 |
— | ||
|
22147
|
22147
S2212-41100
Ring, Camshaft Adjust
[09.2002 - 12.2006] S05C..XZU342 NO.2 |
S2212-41100 |
— | ||
|
22147C
|
22147C
S2211-11310
Retainer, Bearing
[09.2002 - 12.2006] S05C..XZU342 |
S2211-11310 |
— | ||
|
22148
|
22148
S2212-51430
Spring, Delivery Valve
[09.2002 - 12.2006] S05C..XZU342 |
S2212-51430 |
— | ||
|
22149
|
22149
S2284-71550
Gasket, Delivery Valve
[09.2002 - 12.2006] S05C..XZU342 |
S2284-71550 |
— | ||
|
22160
|
22160
22199-78290
Screw Sub-Assy, Overflow
[09.2002 - 12.2006] S05C..XZU342 |
22199-78290 |
— | ||
| replacement | |||||
|
22160
|
22160
S2210-71750
Screw Sub-Assy, Overflow
[09.2002 - 12.2006] S05C..XZU342 |
S2210-71750 |
— | ||
|
22161
|
22161
S2288-51550
Plate, Camshaft Shim
[09.2002 - 12.2006] S05C..XZU342 T=0.10 |
S2288-51550 |
— | ||
|
22161
|
22161
S2288-51560
Plate, Camshaft Shim
[09.2002 - 12.2006] S05C..XZU342 T=0.16 |
S2288-51560 |
— | ||
|
22161
|
22161
S2288-51570
Plate, Camshaft Shim
[09.2002 - 12.2006] S05C..XZU342 T=0.30 |
S2288-51570 |
— | ||
|
22161
|
22161
S2288-51580
Plate, Camshaft Shim
[09.2002 - 12.2006] S05C..XZU342 T=0.50 |
S2288-51580 |
— | ||
|
22161
|
22161
S2288-55680
Plate, Camshaft Shim
[09.2002 - 12.2006] S05C..XZU342 T=0.12 |
S2288-55680 |
— | ||
|
22161
|
22161
S2288-55690
Plate, Camshaft Shim
[09.2002 - 12.2006] S05C..XZU342 T=0.14 |
S2288-55690 |
— | ||
|
22161
|
22161
S2288-55700
Plate, Camshaft Shim
[09.2002 - 12.2006] S05C..XZU342 T=0.18 |
S2288-55700 |
— | ||
|
22161
|
22161
S2288-56670
Plate, Camshaft Shim
[09.2002 - 12.2006] S05C..XZU342 T=0.03 |
S2288-56670 |
— | ||
|
22166
|
22166
S2212-91210
Plate, Camshaft Shim
[09.2002 - 12.2006] S05C..XZU342 T=0.10 |
S2212-91210 |
— | ||
|
22166
|
22166
S2212-91220
Plate, Camshaft Shim
[09.2002 - 12.2006] S05C..XZU342 T=0.16 |
S2212-91220 |
— | ||
|
22166
|
22166
S2212-91230
Plate, Camshaft Shim
[09.2002 - 12.2006] S05C..XZU342 T=0.30 |
S2212-91230 |
— | ||
|
22166
|
22166
S2212-91240
Plate, Camshaft Shim
[09.2002 - 12.2006] S05C..XZU342 T=0.50 |
S2212-91240 |
— | ||
|
22166
|
22166
S2288-56690 Plate, Camshaft Shim[09.2002 - 12.2006] S05C..XZU342 T=0.12 |
S2288-56690 |
US $0.44 |
||
|
22166
|
22166
S2288-56700 Plate, Camshaft Shim[09.2002 - 12.2006] S05C..XZU342 T=0.14 |
S2288-56700 |
US $0.44 |
||
|
22166
|
22166
S2288-56710
Plate, Camshaft Shim
[09.2002 - 12.2006] S05C..XZU342 T=0.18 |
S2288-56710 |
— | ||
|
22166
|
22166
S2288-56730
Plate, Camshaft Shim
[09.2002 - 12.2006] S05C..XZU342 T=0.03 |
S2288-56730 |
— | ||
|
22194
|
22194
S2211-71310
Stopper, Delivery Valve
[09.2002 - 12.2006] S05C..XZU342 |
S2211-71310 |
— | ||
|
22196
|
22196
S2283-51110 Screw, Fuel Inlet Follow[09.2002 - 12.2006] S05C..XZU342 |
S2283-51110 |
US $1.16 |
||
| replacement | |||||
|
22196
|
22196
90099-18005
Screw, Fuel Inlet Follow
[09.2002 - 12.2006] S05C..XZU342 |
90099-18005 |
— | ||
|
22196A
|
22196A
S2284-71900 Washer(For Inlet Follow Screw)[09.2002 - 12.2006] S05C..XZU342 |
S2284-71900 |
US $1.31 |
||
| replacement | |||||
|
22196A
|
22196A
90099-01504
Washer(For Inlet Follow Screw)
[09.2002 - 12.2006] S05C..XZU342 |
90099-01504 |
— | ||
|
22673A
|
22673A
S2213-11200
Bushing, Control Rack
[09.2002 - 12.2006] S05C..XZU342 |
S2213-11200 |
— | ||
|
9009901501
|
9009901501
90099-01501
Ring, Feed Pump Tappet Snap
|
90099-01501 |
— | ||
|
S221321730
|
S221321730
S2213-21730
New Genuine Part
|
S2213-21730 |
— | ||
|
S228151310
|
S228151310
S2281-51310
New Genuine Part
|
S2281-51310 |
— | ||
|
S228151620
|
S228151620
S2281-51620
New Genuine Part
|
S2281-51620 |
— | ||
|
S228251380
|
S228251380
S2282-51380
New Genuine Part
|
S2282-51380 |
— | ||
|
S228351310
|
S228351310
S2283-51310
Screw, Fuel Pipe Follow
|
S2283-51310 |
— | ||
| replacement | |||||
|
S228351310
|
S228351310
90099-18010 Screw, Fuel Pipe Follow |
90099-18010 |
from US $3.32 |
||
|
S228471950
|
S228471950
S2284-71950 Washer, Drain Screw |
S2284-71950 |
US $0.44 |
||
|
S228571060
|
S228571060
S2285-71060
New Genuine Part
|
S2285-71060 |
— | ||
| replacement | |||||
|
S228571060
|
S228571060
90099-04071
New Genuine Part
|
90099-04071 |
— | ||
|
S228771100
|
S228771100
S2287-71100 Washer(For Inlet Follow Screw) |
S2287-71100 |
from US $1.16 |
||
| replacement | |||||
|
S228771100
|
S228771100
90099-01502 Washer(For Inlet Follow Screw) |
90099-01502 |
US $1.79 |
||
|
S228771720
|
S228771720
S2287-71720 New Genuine Part |
S2287-71720 |
US $0.58 |
||
|
S228852290
|
S228852290
S2288-52290
New Genuine Part
|
S2288-52290 |
— | ||
|
S228856740
|
S228856740
S2288-56740
New Genuine Part
|
S2288-56740 |
— | ||
|
SL72202215
|
SL72202215
SL722-02215 Washer, Contact Plate Lock |
SL722-02215 |
US $2.04 |
||
