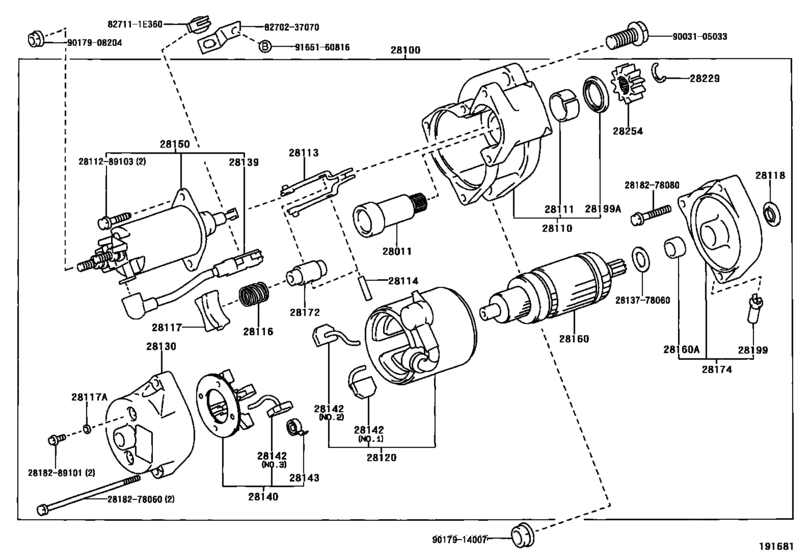

Starter ([09.2002 - ] 24V 4.5KW (0209- )S05C) Diagram Toyota DYNA/ TOYOACE
- Year
- 2002 - 2006
- Sales region
- General
- Frame
- XZU342
- ENGINE
- S05C
- DESTINATION
- IDN
- DECK
- T3
- From
- 09.2002
- To
- 12.2006
- Loading Capacity
- 65T
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-78061 Clutch Sub-Assy, Starter[11.2003 - 12.2006] S05C..XZU342 |
28011-78061 |
US $500.86 |
||
|
28100
|
28100
28100-78062 Starter Assy[09.2002 - 11.2003] S05C..XZU342 24V 4.5KW |
28100-78062 |
US $2,067.52 |
||
| replacement | |||||
|
28100
|
28100
28100-78063 Starter Assy[09.2002 - 11.2003] S05C..XZU342 24V 4.5KW |
28100-78063 |
US $2,052.96 |
||
|
28100
|
28100
28100-78063 Starter Assy[11.2003 - 12.2006] S05C..XZU342 24V 4.5KW |
28100-78063 |
US $2,052.96 |
||
|
28110
|
28110
28115-78060 Housing Assy, Starter Drive[09.2002 - 12.2006] S05C..XZU342 |
28115-78060 |
US $171.81 |
||
| replacement | |||||
|
28110
|
28110
28115-EV030 Housing Assy, Starter Drive[09.2002 - 12.2006] S05C..XZU342 |
28115-EV030 |
US $113.57 |
||
|
28111
|
28111
28111-78060 Bush(For Starter Housing)[11.2003 - 12.2006] S05C..XZU342 |
28111-78060 |
US $18.93 |
||
| replacement | |||||
|
28111
|
28111
S2811-11430 Bush(For Starter Housing)[11.2003 - 12.2006] S05C..XZU342 |
S2811-11430 |
US $15.58 |
||
|
28113
|
28113
28113-78060 Lever, Starter Pinion Drive[09.2002 - 11.2003] S05C..XZU342 |
28113-78060 |
US $20.09 |
||
| replacement | |||||
|
28113
|
28113
S2811-31330 Lever, Starter Pinion Drive[09.2002 - 11.2003] S05C..XZU342 |
S2811-31330 |
US $13.83 |
||
|
28113
|
28113
28113-78061 Lever, Starter Pinion Drive[11.2003 - 12.2006] S05C..XZU342 |
28113-78061 |
US $24.90 |
||
| replacement | |||||
|
28113
|
28113
S2811-31370 Lever, Starter Pinion Drive[11.2003 - 12.2006] S05C..XZU342 |
S2811-31370 |
US $17.33 |
||
|
28114
|
28114
28114-78060 Pin, Starter Drive Lever Set[11.2003 - 12.2006] S05C..XZU342 |
28114-78060 |
US $2.48 |
||
| replacement | |||||
|
28114
|
28114
S2811-41120 Pin, Starter Drive Lever Set[11.2003 - 12.2006] S05C..XZU342 |
S2811-41120 |
US $1.60 |
||
|
28116
|
28116
28116-89101 Spring, Pinion Return[11.2003 - 12.2006] S05C..XZU342 |
28116-89101 |
US $2.48 |
||
| replacement | |||||
|
28116
|
28116
S2811-61040 Spring, Pinion Return[11.2003 - 12.2006] S05C..XZU342 |
S2811-61040 |
US $1.60 |
||
|
28117
|
28117
28117-78060
Rubber(For Starter Yoke)
[11.2003 - 12.2006] S05C..XZU342 |
28117-78060 |
— | ||
| replacement | |||||
|
28117
|
28117
S2811-71250 Rubber(For Starter Yoke)[11.2003 - 12.2006] S05C..XZU342 |
S2811-71250 |
US $7.86 |
||
|
28117A
|
28117A
28117-78080
Seal, Rubber
[11.2003 - 12.2006] S05C..XZU342 |
28117-78080 |
— | ||
| replacement | |||||
|
28117A
|
28117A
S2816-81370 Seal, Rubber[11.2003 - 12.2006] S05C..XZU342 |
S2816-81370 |
US $0.73 |
||
|
28118
|
28118
28118-78080 Plate(For Starter Yoke)[11.2003 - 12.2006] S05C..XZU342 |
28118-78080 |
US $0.87 |
||
| replacement | |||||
|
28118
|
28118
S2811-81480 Plate(For Starter Yoke)[11.2003 - 12.2006] S05C..XZU342 |
S2811-81480 |
US $0.73 |
||
|
28120
|
28120
28120-78060 Yoke Assy, Starter[09.2002 - 02.2006] S05C..XZU342 |
28120-78060 |
US $260.62 |
||
| replacement | |||||
|
28120
|
28120
S2812-01801 Yoke Assy, Starter[09.2002 - 02.2006] S05C..XZU342 |
S2812-01801 |
US $240.24 |
||
|
28120
|
28120
28120-78080 Yoke Assy, StarterSTARTER [02.2006 - 12.2006] S05C..XZU342 |
28120-78080 |
US $340.70 |
||
|
28130
|
28130
28133-78060 Frame Assy, Starter Commutator End[09.2002 - 12.2006] S05C..XZU342 |
28133-78060 |
US $52.42 |
||
| replacement | |||||
|
28130
|
28130
S2813-32301 Frame Assy, Starter Commutator End[09.2002 - 12.2006] S05C..XZU342 |
S2813-32301 |
US $38 |
||
|
28139
|
28139
28139-89104 Wire, Lead, No.1(For Starter)[11.2003 - 12.2006] S05C..XZU342 |
28139-89104 |
US $40.19 |
||
| replacement | |||||
|
28139
|
28139
S2817-11121 Wire, Lead, No.1(For Starter)[11.2003 - 12.2006] S05C..XZU342 |
S2817-11121 |
US $24.90 |
||
|
28140
|
28140
28140-78060 Holder Assy, Starter Brush[09.2002 - 02.2006] S05C..XZU342 |
28140-78060 |
US $62.46 |
||
| replacement | |||||
|
28140
|
28140
S2814-01600 Holder Assy, Starter Brush[09.2002 - 02.2006] S05C..XZU342 |
S2814-01600 |
US $55.56 |
||
|
28140
|
28140
28140-78080 Holder Assy, Starter BrushSTARTER BRUSH [02.2006 - 12.2006] S05C..XZU342 |
28140-78080 |
US $87.36 |
||
|
28142
|
28142
28142-78070 Brush, Starter[02.2006 - 12.2006] S05C..XZU342 NO.1 |
28142-78070 |
US $29.27 |
||
| replacement | |||||
|
28142
|
28142
S2814-21770 Brush, Starter[02.2006 - 12.2006] S05C..XZU342 NO.1 |
S2814-21770 |
US $17.33 |
||
|
28142
|
28142
28147-78070 Brush, Starter[02.2006 - 12.2006] S05C..XZU342 NO.3 |
28147-78070 |
US $35.24 |
||
| replacement | |||||
|
28142
|
28142
S2814-21750 Brush, Starter[02.2006 - 12.2006] S05C..XZU342 NO.3 |
S2814-21750 |
US $17.33 |
||
|
28142
|
28142
28148-78070 Brush, Starter[02.2006 - 12.2006] S05C..XZU342 NO.2 |
28148-78070 |
US $29.27 |
||
| replacement | |||||
|
28142
|
28142
S2814-21760 Brush, Starter[02.2006 - 12.2006] S05C..XZU342 NO.2 |
S2814-21760 |
US $16.45 |
||
|
28142
|
28142
28148-89101 Brush, Starter[09.2002 - 02.2006] S05C..XZU342 NO.1 |
28148-89101 |
US $20.82 |
||
| replacement | |||||
|
28142
|
28142
S2814-21530 Brush, Starter[09.2002 - 02.2006] S05C..XZU342 NO.1 |
S2814-21530 |
US $15.72 |
||
|
28142
|
28142
28148-89102 Brush, Starter[09.2002 - 02.2006] S05C..XZU342 NO.2 |
28148-89102 |
US $20.82 |
||
| replacement | |||||
|
28142
|
28142
S2814-21540 Brush, Starter[09.2002 - 02.2006] S05C..XZU342 NO.2 |
S2814-21540 |
US $15.72 |
||
|
28142
|
28142
28148-89103 Brush, Starter[09.2002 - 02.2006] S05C..XZU342 NO.3 |
28148-89103 |
US $20.82 |
||
| replacement | |||||
|
28142
|
28142
S2814-21550 Brush, Starter[09.2002 - 02.2006] S05C..XZU342 NO.3 |
S2814-21550 |
US $15.03 |
||
|
28143
|
28143
28143-78060 Spring, Starter Brush[09.2002 - 02.2006] S05C..XZU342 |
28143-78060 |
US $3.06 |
||
|
28150
|
28150
28150-78061 Switch Assy, Magnet Starter[11.2003 - 12.2006] S05C..XZU342 |
28150-78061 |
US $352.35 |
||
| replacement | |||||
|
28150
|
28150
S2815-02244 Switch Assy, Magnet Starter[11.2003 - 12.2006] S05C..XZU342 |
S2815-02244 |
US $291.20 |
||
|
28160
|
28160
28160-78060 Armature Assy, Starter[09.2002 - 12.2006] S05C,W04D..WU300,340,XZU342..IDN |
28160-78060 |
US $493.58 |
||
| replacement | |||||
|
28160
|
28160
S2816-01690 Armature Assy, Starter[09.2002 - 12.2006] S05C,W04D..WU300,340,XZU342..IDN |
S2816-01690 |
US $318.86 |
||
|
28160A
|
28160A
28252-78060 Bearing, Starter Armature[09.2002 - 12.2006] S05C,W04D..WU300,340,XZU342..IDN |
28252-78060 |
US $12.67 |
||
| replacement | |||||
|
28160A
|
28160A
S2825-21990 Bearing, Starter Armature[09.2002 - 12.2006] S05C,W04D..WU300,340,XZU342..IDN |
S2825-21990 |
US $10.77 |
||
|
28172
|
28172
28172-89101 Holder, Starter Spring[09.2002 - 11.2003] S05C..XZU342 |
28172-89101 |
US $4.95 |
||
| replacement | |||||
|
28172
|
28172
S2826-21160 Holder, Starter Spring[09.2002 - 11.2003] S05C..XZU342 |
S2826-21160 |
US $2.77 |
||
|
28174
|
28174
28174-78060 Housing, Starter Motor[11.2003 - 12.2006] S05C..XZU342 |
28174-78060 |
US $71.64 |
||
| replacement | |||||
|
28174
|
28174
S2811-91321 Housing, Starter Motor[11.2003 - 12.2006] S05C..XZU342 |
S2811-91321 |
US $48.05 |
||
|
28199
|
28199
28199-78070 Cover, Starter[09.2002 - 12.2006] S05C,W04D..WU300,340,XZU342..IDN |
28199-78070 |
US $3.93 |
||
| replacement | |||||
|
28199
|
28199
S2817-91011 Cover, Starter[09.2002 - 12.2006] S05C,W04D..WU300,340,XZU342..IDN |
S2817-91011 |
US $3.35 |
||
|
28199A
|
28199A
28199-78060 Protector, Dust Starter[09.2002 - 12.2006] S05C,W04D..WU300,340,XZU342..IDN |
28199-78060 |
US $6.41 |
||
| replacement | |||||
|
28199A
|
28199A
S2819-91040 Protector, Dust Starter[09.2002 - 12.2006] S05C,W04D..WU300,340,XZU342..IDN |
S2819-91040 |
US $5.24 |
||
|
28229
|
28229
28229-78060 Retainer, Starter Idle Gear[09.2002 - 12.2006] S05C,W04D..WU300,340,XZU342..IDN |
28229-78060 |
US $1.75 |
||
| replacement | |||||
|
28229
|
28229
S2816-81400 Retainer, Starter Idle Gear[09.2002 - 12.2006] S05C,W04D..WU300,340,XZU342..IDN |
S2816-81400 |
US $1.60 |
||
|
28254
|
28254
28250-78060 Pinion, Starter Idle Gear[09.2002 - 12.2006] S05C,W04D..WU300,340,XZU342..IDN |
28250-78060 |
US $37.56 |
||
| replacement | |||||
|
28254
|
28254
S2825-11040 Pinion, Starter Idle Gear[09.2002 - 12.2006] S05C,W04D..WU300,340,XZU342..IDN |
S2825-11040 |
US $31.30 |
||
|
827111E360
|
827111E360
82711-1E360 Clamp, Wiring Harness |
82711-1E360 |
US $1.08 |
||
|
2811289103
|
2811289103
28112-89103
New Genuine Part
|
28112-89103 |
— | ||
| replacement | |||||
|
2811289103
|
2811289103
S2811-21920 New Genuine Part |
S2811-21920 |
US $1.89 |
||
|
2813778060
|
2813778060
28137-78060 New Genuine Part |
28137-78060 |
US $4.37 |
||
| replacement | |||||
|
2813778060
|
2813778060
S2813-71180 New Genuine Part |
S2813-71180 |
US $6.70 |
||
|
2818278060
|
2818278060
28182-78060 New Genuine Part |
28182-78060 |
US $2.62 |
||
| replacement | |||||
|
2818278060
|
2818278060
S2811-22560 New Genuine Part |
S2811-22560 |
US $2.18 |
||
|
2818278080
|
2818278080
28182-78080 New Genuine Part |
28182-78080 |
US $1.60 |
||
| replacement | |||||
|
2818278080
|
2818278080
S2811-22550 New Genuine Part |
S2811-22550 |
US $1.31 |
||
|
2818289101
|
2818289101
28182-89101
New Genuine Part
|
28182-89101 |
— | ||
| replacement | |||||
|
2818289101
|
2818289101
S2811-22000 New Genuine Part |
S2811-22000 |
US $0.73 |
||
|
8270237070
|
8270237070
82702-37070 Bracket Sub-assy, Wiring Harness |
82702-37070 |
US $6.41 |
||
|
9003105033
|
9003105033
90031-05033 New Genuine Part |
90031-05033 |
US $10.57 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.90 |
||
|
9017914007
|
9017914007
90179-14007 Nut(For Suspension Lower Arm Shaft) |
90179-14007 |
US $4.66 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.01 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 BOLT |
90080-11396 |
US $3.32 |
||
