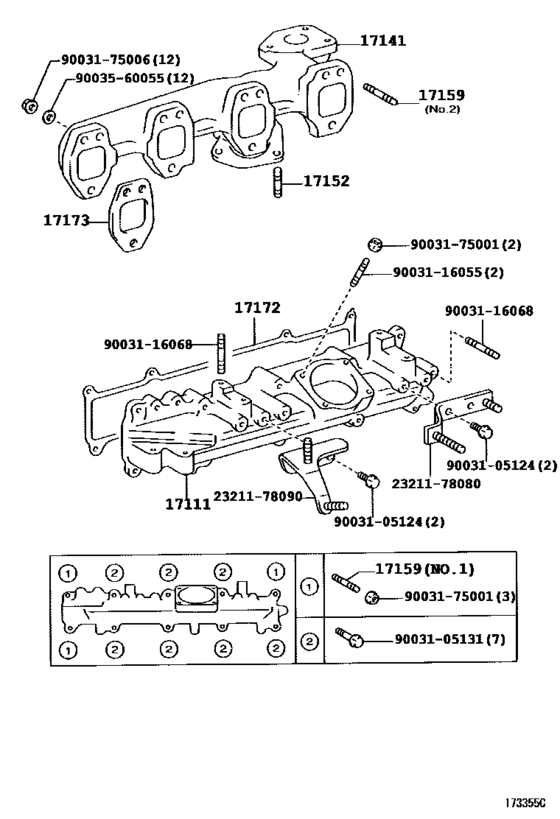

Manifold ([09.2002 - 12.2002] (0209-0212)S05C) Diagram Toyota DYNA/ TOYOACE
- Year
- 2002 - 2006
- Sales region
- General
- Frame
- XZU342
- ENGINE
- S05C
- DESTINATION
- IDN
- DECK
- T3
- From
- 09.2002
- To
- 12.2006
- Loading Capacity
- 75T
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17111-78040
Manifold, Intake
[09.2002 - 10.2005] S05C..XZU342 |
17111-78040 |
— | ||
| replacement | |||||
|
17111
|
17111
17111-E0010 Manifold, Intake[09.2002 - 10.2005] S05C..XZU342 |
17111-E0010 |
US $400.40 |
||
|
17111
|
17111
17111-78070
Manifold, Intake
[10.2005 - 12.2006] S05C..XZU342 |
17111-78070 |
— | ||
| replacement | |||||
|
17111
|
17111
17111-E0010 Manifold, Intake[10.2005 - 12.2006] S05C..XZU342 |
17111-E0010 |
US $400.40 |
||
|
17141
|
17141
17141-78030 Manifold, Exhaust[09.2002 - 09.2003] S05C..XZU342 |
17141-78030 |
US $465.92 |
||
| replacement | |||||
|
17141
|
17141
S1714-15783 Manifold, Exhaust[09.2002 - 09.2003] S05C..XZU342 |
S1714-15783 |
US $385.84 |
||
|
17141
|
17141
17141-78031 Manifold, Exhaust[09.2003 - 12.2006] S05C..XZU342 |
17141-78031 |
US $461.55 |
||
| replacement | |||||
|
17141
|
17141
S1714-15783 Manifold, Exhaust[09.2003 - 12.2006] S05C..XZU342 |
S1714-15783 |
US $385.84 |
||
|
17152
|
17152
90031-16063 Bolt, Stud(For Manifold To Exhaust Pipe)[09.2002 - 12.2006] S05C..XZU342; W04D..WU300,340..IDN |
90031-16063 |
US $3.05 |
||
|
17159
|
17159
90031-16054 Bolt, Stud(For Manifold To Cylinder Head)[09.2002 - 12.2006] S05C..XZU342 NO.1 |
90031-16054 |
US $1.61 |
||
|
17159
|
17159
90031-16069 Bolt, Stud(For Exhaust Manifold To Cylinder Head)[09.2002 - 12.2006] S05C..XZU342 NO.2 |
90031-16069 |
from US $1.54 |
||
|
17172
|
17172
17172-89102
Gasket, Manifold To Cylinder Head
[09.2002 - 12.2006] S05C..XZU342 |
17172-89102 |
— | ||
| replacement | |||||
|
17172
|
17172
S1717-12000 Gasket, Manifold To Cylinder Head[09.2002 - 12.2006] S05C..XZU342 |
S1717-12000 |
US $27.22 |
||
|
17173
|
17173
17173-78030 Gasket, Egr Inlet[12.2002 - 12.2006] S05C..XZU342 NO.2 |
17173-78030 |
US $16.84 |
||
|
17173
|
17173
17173-89102
Gasket, Exhaust Manifold To Head
[09.2002 - 12.2002] S05C..XZU342 |
17173-89102 |
— | ||
| replacement | |||||
|
17173
|
17173
S1710-41610 Gasket, Exhaust Manifold To Head[09.2002 - 12.2002] S05C..XZU342 |
S1710-41610 |
from US $17.30 |
||
|
2321178080
|
2321178080
23211-78080
Bracket, Wire
|
23211-78080 |
— | ||
|
2321178090
|
2321178090
23211-78090
New Genuine Part
|
23211-78090 |
— | ||
| replacement | |||||
|
2321178090
|
2321178090
S2376-82560
New Genuine Part
|
S2376-82560 |
— | ||
|
9003105124
|
9003105124
90031-05124 New Genuine Part |
90031-05124 |
US $1.61 |
||
|
9003105131
|
9003105131
90031-05131 BOLT FLANGE |
90031-05131 |
from US $1.07 |
||
|
9003116055
|
9003116055
90031-16055 Bolt, Stud(For Manifold To Cylinder Head) |
90031-16055 |
US $1.79 |
||
|
9003116068
|
9003116068
90031-16068 Bolt, Stud(For Intake Pipe Stay) |
90031-16068 |
from US $1.19 |
||
|
9003175001
|
9003175001
90031-75001 New Genuine Part |
90031-75001 |
US $1.79 |
||
|
9003175006
|
9003175006
90031-75006 NUTFLANGE |
90031-75006 |
US $2.33 |
||
|
9003560055
|
9003560055
90035-60055 SPACER |
90035-60055 |
from US $2.52 |
||
