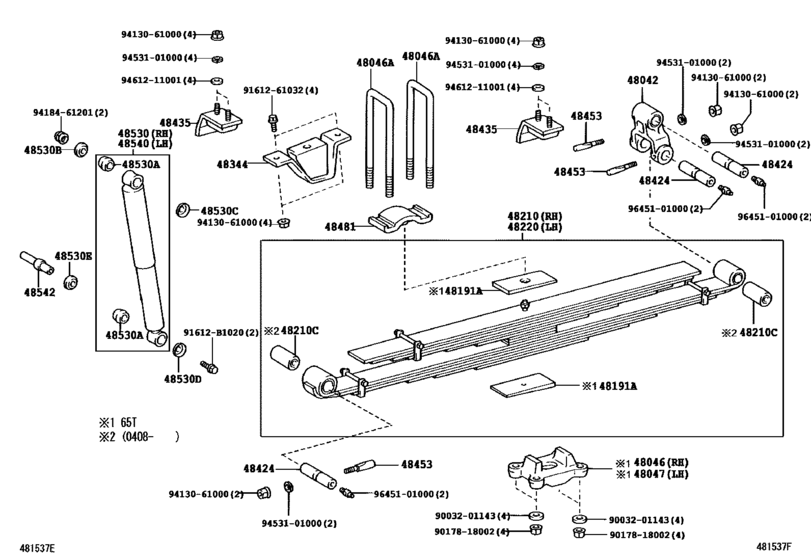

Rear Spring & Shock Absorber ([09.2002 - 12.2006] (0209-0612)BU343,WU340,XZU342..IDN) Diagram Toyota DYNA/ TOYOACE
- Year
- 2002 - 2006
- Sales region
- General
- Frame
- XZU342
- ENGINE
- S05C
- DESTINATION
- IDN
- DECK
- T3
- From
- 09.2002
- To
- 12.2006
- Loading Capacity
- 75T
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48042
|
48042
48042-25030 Shackle Sub-Assy, Rear Spring, No.2REAR SPRING, NO.2 [09.2002 - 12.2006] BU343,WU340,XZU342..IDN |
48042-25030 |
US $180.54 |
||
|
48046A
|
48046A
90117-18010
Bolt, U(For Rear Spring)
[09.2002 - 12.2006] WU340,XZU342..75T L=370 |
90117-18010 |
— | ||
|
48210
|
48210
48210-0W010
Spring Assy, Rear Rh
[09.2002 - 12.2006] WU340,XZU342..75T MAIN 7+HELPER 8-LEAF |
48210-0W010 |
— | ||
|
48210C
|
48210C
90384-28009 Bush(For Rear Spring Leaf)[08.2004 - 12.2006] WU340,XZU342..75T |
90384-28009 |
US $32.18 |
||
|
48220
|
48220
48210-0W010
Spring Assy, Rear Rh
[09.2002 - 12.2006] WU340,XZU342..75T MAIN 7+HELPER 8-LEAF |
48210-0W010 |
— | ||
|
48344
|
48344
48344-0W020
Stopper, Bumper, Rear
[09.2002 - 12.2006] BU343,WU340,XZU342..IDN |
48344-0W020 |
— | ||
|
48424
|
48424
48424-0W010
Pin, Spring Bracket, No.2
[09.2002 - 12.2006] BU343,WU340,XZU342..IDN |
48424-0W010 |
— | ||
|
48435
|
48435
48435-36020 Attachment, Helper Spring Bracket, No.1HELPER SPRING BRACKET, NO.1 [09.2002 - 12.2006] BU343,WU340,XZU342..IDN |
48435-36020 |
US $31.80 |
||
|
48453
|
48453
48453-55010 Pin, Rear Spring Pin Lock[09.2002 - 12.2006] BU343,WU340,XZU342..IDN |
48453-55010 |
US $1.75 |
||
|
48481
|
48481
48481-37090 Seat, Rear Spring, Upper[09.2002 - 12.2006] WU340,XZU342..75T |
48481-37090 |
US $20.68 |
||
|
48530
|
48530
48531-09360
Absorber Assy, Shock, Rear Rh
[09.2002 - 12.2006] BU343,WU340,XZU342..IDN MARK 48531-0W050 |
48531-09360 |
— | ||
|
48530A
|
48530A
90385-16007 Cushion, Front Shock Absorber[09.2002 - 11.2003] BU303,343,WU300,340,XZU342..IDN |
90385-16007 |
from US $1.81 |
||
|
48530A
|
48530A
90385-T0006
Cushion, Front Shock Absorber
[11.2003 - 12.2006] BU303,343,WU300,340,XZU342..IDN |
90385-T0006 |
— | ||
|
48530B
|
48530B
90948-03003 Retainer, Cushion, No.1(For Front Shock Absorber)[09.2002 - 12.2006] BU303,343,WU300,340,XZU342..IDN |
90948-03003 |
from US $1.25 |
||
|
48530C
|
48530C
90948-03004 Retainer, Cushion, No.1(For Front Shock Absorber)[09.2002 - 12.2006] BU303,343,WU300,340,XZU342..IDN |
90948-03004 |
from US $1.31 |
||
|
48530D
|
48530D
90948-03012 Washer, Front Shock Absorber Cushion, No.1[09.2002 - 12.2006] BU303,343,WU300,340,XZU342..IDN |
90948-03012 |
US $1.79 |
||
|
48530E
|
48530E
90948-03004 Retainer, Cushion, No.1(For Front Shock Absorber)[09.2002 - 12.2006] BU303,343,WU300,340,XZU342..IDN |
90948-03004 |
from US $1.31 |
||
|
48540
|
48540
48531-09360
Absorber Assy, Shock, Rear Rh
[09.2002 - 12.2006] BU343,WU340,XZU342..IDN MARK 48531-0W050 |
48531-09360 |
— | ||
|
48542
|
48542
48542-26020 Pin, Shock Absorber Upper Pivot, Rear[09.2002 - 12.2006] BU343,WU340,XZU342..IDN |
48542-26020 |
US $8.30 |
||
|
91612B1020
|
91612B1020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
from US $1.07 |
||
|
9003201143
|
9003201143
90032-01143 WASHER PLATE |
90032-01143 |
US $1.31 |
||
|
9017818002
|
9017818002
90178-18002 NUT FLANGE |
90178-18002 |
US $3.94 |
||
|
9161261032
|
9161261032
91612-61032 New Genuine Part |
91612-61032 |
US $1.65 |
||
|
9413061000
|
9413061000
94130-61000 Nut(For Clutch Pedal Stopper) |
94130-61000 |
from US $0.76 |
||
|
9418461201
|
9418461201
94184-61201 Nut, Lock(For Power Steering Control Valve) |
94184-61201 |
US $1.97 |
||
|
9453101000
|
9453101000
94531-01000 WASHER |
94531-01000 |
from US $1.61 |
||
|
9461211001
|
9461211001
94612-11001 Washer, Plate (For Center Support Bearing Housing) |
94612-11001 |
from US $1.08 |
||
|
9645101000
|
9645101000
96451-01000 Nipple, Grease(For Rear Spring Bracket Pin) |
96451-01000 |
from US $2.11 |
