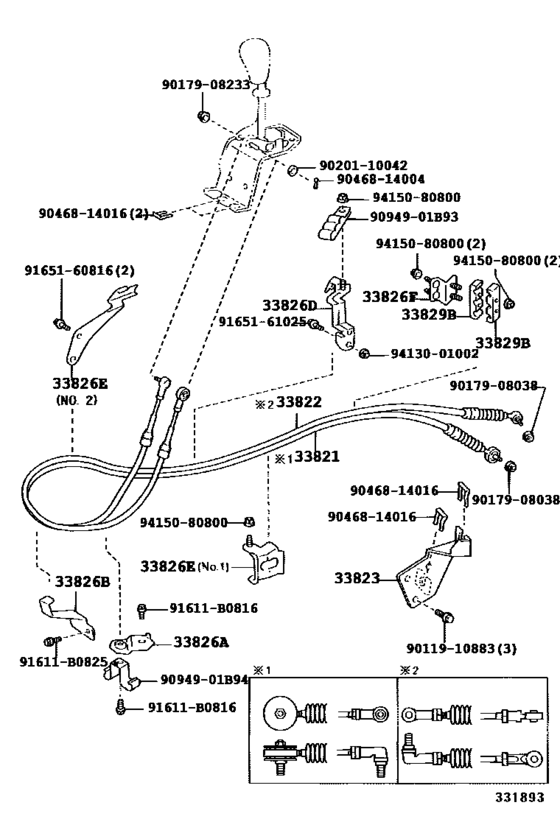

Shift Lever & Retainer ([09.2002 - ] (0209- )XZU342) Diagram Toyota DYNA/ TOYOACE
- Year
- 2002 - 2006
- Sales region
- General
- Frame
- XZU342
- ENGINE
- S05C
- DESTINATION
- IDN
- DECK
- T3
- From
- 09.2002
- To
- 12.2006
- Loading Capacity
- 75T
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33821
|
33821
33820-0W031
Cable Transmission Control Shift (For Floor Shift)
[09.2002 - 10.2002] XZU342 |
33820-0W031 |
— | ||
| replacement | |||||
|
33821
|
33821
33820-0W032
Cable Transmission Control Shift (For Floor Shift)
[09.2002 - 10.2002] XZU342 |
33820-0W032 |
— | ||
|
33821
|
33821
33820-0W032
Cable Transmission Control Shift (For Floor Shift)
[10.2002 - 11.2003] XZU342 |
33820-0W032 |
— | ||
|
33821
|
33821
33820-0W090
Cable Transmission Control Shift (For Floor Shift)
[11.2003 - 12.2006] XZU342 |
33820-0W090 |
— | ||
|
33822
|
33822
33820-0W040
Cable Transmission Control Select (For Floor Shift)
[09.2002 - 11.2002] XZU342 |
33820-0W040 |
— | ||
| replacement | |||||
|
33822
|
33822
33820-0W041
Cable Transmission Control Select (For Floor Shift)
[09.2002 - 11.2002] XZU342 |
33820-0W041 |
— | ||
|
33822
|
33822
33820-0W041
Cable Transmission Control Select (For Floor Shift)
[11.2002 - 11.2003] XZU342 |
33820-0W041 |
— | ||
|
33822
|
33822
33820-0W100
Cable Transmission Control Select (For Floor Shift)
[11.2003 - 12.2006] XZU342 |
33820-0W100 |
— | ||
|
33823
|
33823
33823-0W020
Bracket, Transmission Control Cable, No.1
[09.2002 - 11.2003] XZU342 |
33823-0W020 |
— | ||
|
33823
|
33823
33823-0W040
Bracket, Transmission Control Cable, No.1
[11.2003 - 12.2006] XZU342 |
33823-0W040 |
— | ||
|
33826A
|
33826A
33826-37180 Bracket, Transmission Control Cable, No.2[09.2002 - 12.2006] BU303,343,WU300,340,XZU342..IDN |
33826-37180 |
US $3.93 |
||
|
33826B
|
33826B
33826-37210 Bracket, Transmission Control Cable, No.3[09.2002 - 12.2006] XZU342; WU300,340..IDN NO.2 |
33826-37210 |
US $10.92 |
||
|
33826D
|
33826D
33826-37270 Bracket, Transmission Control Cable, No.5[09.2002 - 12.2006] BU303,343,WU300,340,XZU342..IDN |
33826-37270 |
US $16.16 |
||
|
33826E
|
33826E
33826-37251 Bracket, Transmission Control Cable, No.6[09.2002 - 11.2003] XZU342 NO.1 |
33826-37251 |
US $9.32 |
||
|
33826E
|
33826E
33826-37590 Bracket, Transmission Control Cable, No.6[09.2002 - 11.2003] XZU342 NO.2 |
33826-37590 |
US $20.53 |
||
|
33826F
|
33826F
33826-37420 Bracket, Transmission Control Cable, No.7[09.2002 - 12.2006] XZU342 |
33826-37420 |
US $20.53 |
||
|
33829B
|
33829B
33829-37150 Clamp, Transmission Control Cable[09.2002 - 12.2006] BU303,343,WU300,340,XZU342..IDN |
33829-37150 |
US $8.15 |
||
|
91611B0816
|
91611B0816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
91611B0825
|
91611B0825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.11 |
||
|
9094901B93
|
9094901B93
90949-01B93 New Genuine Part |
90949-01B93 |
US $4.66 |
||
|
9094901B94
|
9094901B94
90949-01B94 New Genuine Part |
90949-01B94 |
US $3.49 |
||
|
9011910883
|
9011910883
90119-10883 New Genuine Part |
90119-10883 |
US $1.43 |
||
|
9017908038
|
9017908038
90179-08038 Nut (For Transmission Control Cable) |
90179-08038 |
from US $0.80 |
||
|
9017908233
|
9017908233
90179-08233 NUT |
90179-08233 |
from US $1.31 |
||
|
9020110042
|
9020110042
90201-10042 Washer, Plate (For Transfer Control Cable) |
90201-10042 |
US $1.61 |
||
|
9046814004
|
9046814004
90468-14004 Union, Auxiliary Fuel Band |
90468-14004 |
from US $0.66 |
||
|
9046814016
|
9046814016
90468-14016 CLIP |
90468-14016 |
from US $1.17 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.01 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 BOLT |
90080-11396 |
US $3.32 |
||
|
9165161025
|
9165161025
91651-61025 Bolt with washer |
91651-61025 |
from US $1.52 |
||
|
9413001002
|
9413001002
94130-01002 Nut, Booster Sleeve Cylinder |
94130-01002 |
from US $0.94 |
||
|
9415080800
|
9415080800
94150-80800 NUT, FLANGE |
94150-80800 |
from US $0.78 |
||
