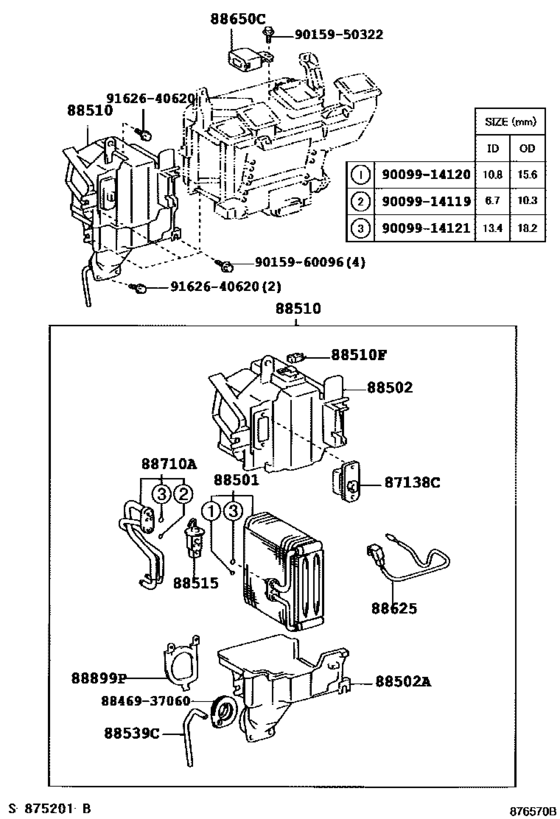

Heating & Air Conditioning - Cooler Unit ([10.2003 - 06.2004] ﾌﾛﾝﾄ--ﾏﾆﾕｱﾙ ｴｱｺﾝ (0310-0406)XZU304,305,344) Diagram Toyota DYNA/ TOYOACE
- Year
- 2003 - 2006
- Sales region
- Japan
- Frame
- XZU344
- ENGINE
- N04C
- TRANSMISSION
- MTM
- DECK
- T4
- CAB
- SCB
- Model
- DYNA/TOYOACE
- From
- 10.2003
- To
- 10.2006
- Gear Shift Type
- 5F
- Body Shape
- 1NO
- Loading Capacity
- 20T
- Fuel Induction
- DCRL
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87138C
|
87138C
87138-37090 Resistor, Heater Blower[10.2003 - 06.2004] XZU304,305,344 |
87138-37090 |
from US $22.36 |
||
|
88501
|
88501
88501-37060 Evaporator Sub-Assy, Cooler, No.1[10.2003 - 06.2004] XZU304,305,344 |
88501-37060 |
US $354.68 |
||
|
88502
|
88502
88502-37050
Case Sub-Assy, Cooling Unit
[10.2003 - 06.2004] XZU304,305,344 |
88502-37050 |
— | ||
|
88502A
|
88502A
88502-37040
Case Sub-Assy, Cooling Unit
[10.2003 - 06.2004] XZU304,305,344 |
88502-37040 |
— | ||
|
88510
|
88510
88510-37120
Unit Assy, Cooler
[10.2003 - 06.2004] XZU304,305,344 |
88510-37120 |
— | ||
|
88510F
|
88510F
82630-95J03
Holder Assy, Fuse
[10.2003 - 06.2004] XZU304,305,344 |
82630-95J03 |
— | ||
|
88515
|
88515
88515-28160 Valve, Cooler Expansion[10.2003 - 06.2004] XZU304,305,344 |
88515-28160 |
from US $67.28 |
||
|
88539C
|
88539C
88539-37060
Hose, Cooler Unit Drain, No.1
[10.2003 - 06.2004] XZU304,305,344 |
88539-37060 |
— | ||
|
88625
|
88625
88625-20460
Thermistor, Cooler, No.1
[10.2003 - 06.2004] XZU304,305,344 |
88625-20460 |
— | ||
| replacement | |||||
|
88625
|
88625
88625-32150 Thermistor, Cooler, No.1[10.2003 - 06.2004] XZU304,305,344 |
88625-32150 |
US $9.43 |
||
|
88650C
|
88650C
88650-37120
Amplifier Sub-Assy, Airconditioner
[10.2003 - 06.2004] XZU304,305,344 |
88650-37120 |
— | ||
|
88710A
|
88710A
88710-37340 Tube Assy, Air Conditioner[10.2003 - 06.2004] XZU304,305,344 |
88710-37340 |
US $163.20 |
||
|
8846937060
|
8846937060
88469-37060
Switch, Pressure Control
|
88469-37060 |
— | ||
|
9009914119
|
9009914119
90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) |
90099-14119 |
from US $1.66 |
||
| replacement | |||||
|
9009914119
|
9009914119
90099-14119-TH O RING |
90099-14119-TH |
US $0.70 |
||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $2.09 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.56 |
||
|
9015950322
|
9015950322
90159-50322 SCREW WWASHER |
90159-50322 |
from US $0.70 |
||
|
9015960096
|
9015960096
90159-60096 New Genuine Part |
90159-60096 |
US $1.51 |
||
|
9162640620
|
9162640620
91626-40620 New Genuine Part |
91626-40620 |
US $2.48 |
||
| replacement | |||||
|
9162640620
|
9162640620
91621-40616 Step Cover Bolt |
91621-40616 |
US $1.43 |
||
