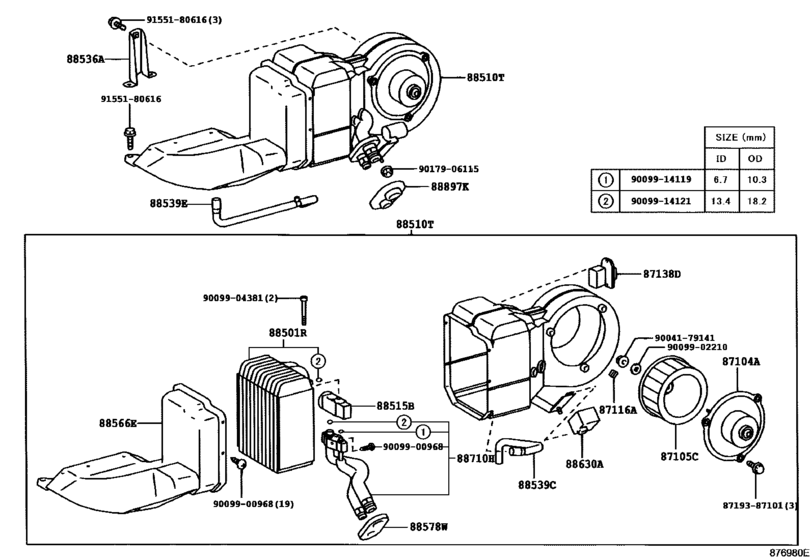

Heating & Air Conditioning - Cooler Unit ([06.1999 - ] ﾘﾔ (9906- )DCB) Diagram Toyota DYNA/ TOYOACE
- Year
- 1999 - 2002
- Sales region
- Japan
- Frame
- XZU412
- ENGINE
- S05C
- TRANSMISSION
- MTM
- DECK
- T5
- CAB
- DCB
- Model
- DYNA/TOYOACE
- From
- 08.1999
- To
- 06.2002
- Gear Shift Type
- 6F
- Loading Capacity
- 20T
- Fuel Induction
- DSL
- Building Condition
- IV3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87104A
|
87104A
87104-37110 Motor Sub-Assy, Blower[08.1999 - 06.2002] XZU412..DCB..6F |
87104-37110 |
from US $179.96 |
||
|
87105C
|
87105C
87105-37020 Fan Sub-Assy, Blower, Rear[08.1999 - 06.2002] XZU412..DCB..6F |
87105-37020 |
US $23.52 |
||
|
87116A
|
87116A
87116-14010
Spring, Heater Case Fastening
[05.1999 - 06.2002] BU420..40T;XZU421..(T3,T5)..4FC;BU400,XZU411,412,421,430..MTM..(20T,40TOV)..(DSL,D SLL,TDEFI) |
87116-14010 |
— | ||
|
87116A
|
87116A
87116-97201
Spring, Holding (For Cooler Unit Case)
[08.1999 - 06.2002] XZU412..DCB..6F リヤ |
87116-97201 |
— | ||
|
87138D
|
87138D
87138-37140 Resistor, Blower (Rear)[08.1999 - 06.2002] XZU412..DCB..6F |
87138-37140 |
US $23.85 |
||
|
88501R
|
88501R
88501-60140 Evaporator Sub-Assy (Rear)[08.1999 - 06.2002] XZU412..DCB..6F |
88501-60140 |
from US $319.74 |
||
|
88510T
|
88510T
88500-37050
Unit Assy, Cooling (Rear)
[08.1999 - 06.2002] XZU412..DCB..6F |
88500-37050 |
— | ||
|
88515B
|
88515B
88515-28120 Valve, Rear Cooling Unit Expansion[08.1999 - 06.2002] XZU412..DCB..6F |
88515-28120 |
US $85.90 |
||
|
88536A
|
88536A
88536-37020
Bracket, Cooling Unit, No.1
[08.1999 - 06.2002] XZU412..DCB..6F |
88536-37020 |
— | ||
|
88539C
|
88539C
88539-37030
Hose, Cooler Unit Drain, No.2
[08.1999 - 06.2002] XZU412..DCB..6F |
88539-37030 |
— | ||
|
88539E
|
88539E
88539-37040
Hose, Cooler Unit Drain, No.3
[08.1999 - 06.2002] XZU412..DCB..6F |
88539-37040 |
— | ||
|
88566E
|
88566E
88566-37040
Duct, Cooler Air, No.2
[08.1999 - 06.2002] XZU412..DCB..6F |
88566-37040 |
— | ||
|
88578W
|
88578W
88578-44040
Packing, Cooling Unit, No.1
[08.1999 - 06.2002] XZU412..DCB..6F |
88578-44040 |
— | ||
|
88630A
|
88630A
88630-37080
Relay Assy, Cooler
[08.1999 - 06.2002] XZU412..DCB..6F |
88630-37080 |
— | ||
|
88710H
|
88710H
88710-37220 Tube Assy, Air Conditioner[08.1999 - 06.2002] XZU412..DCB..6F |
88710-37220 |
US $92.60 |
||
|
88897K
|
88897K
88897-37070
Grommet, (For Cooler Pipe)
[08.1999 - 06.2002] XZU412..DCB..6F |
88897-37070 |
— | ||
|
8719387101
|
8719387101
87193-87101
SCREW TAPPING
|
87193-87101 |
— | ||
|
9004179141
|
9004179141
90041-79141
New Genuine Part
|
90041-79141 |
— | ||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.82 |
||
|
9009902210
|
9009902210
90099-02210 New Genuine Part |
90099-02210 |
US $0.87 |
||
|
9009904381
|
9009904381
90099-04381
BOLT
|
90099-04381 |
— | ||
|
9009914119
|
9009914119
90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) |
90099-14119 |
from US $1.66 |
||
| replacement | |||||
|
9009914119
|
9009914119
90099-14119-TH O RING |
90099-14119-TH |
US $0.68 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.56 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
|
9155180616
|
9155180616
91551-80616 BOLT FLANGE |
91551-80616 |
from US $0.64 |
||
