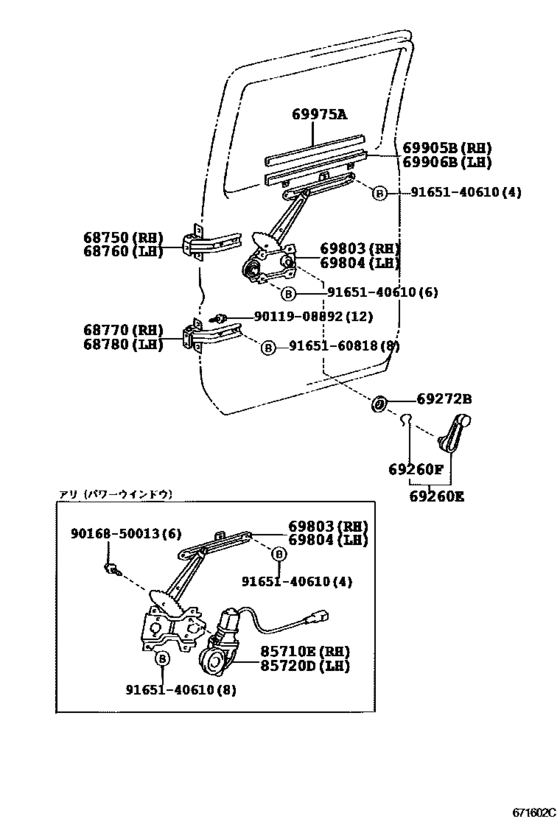

Rear Door Window Regulator & Hinge ([06.1999 - ] (9906- )DCB) Diagram Toyota DYNA/ TOYOACE
- Year
- 1999 - 2002
- Sales region
- Japan
- Frame
- XZU412
- ENGINE
- S05C
- TRANSMISSION
- MTM
- DECK
- T5
- CAB
- DCB
- Model
- DYNA/TOYOACE
- From
- 08.1999
- To
- 06.2002
- Gear Shift Type
- 6F
- Loading Capacity
- 20T
- Fuel Induction
- DSL
- Building Condition
- IV3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68750
|
68750
68750-37010 Hinge Assy, Rear Door, Upper Rh[08.1999 - 06.2002] XZU412..DCB..6F |
68750-37010 |
US $37.45 |
||
|
68760
|
68760
68750-37010 Hinge Assy, Rear Door, Upper Rh[08.1999 - 06.2002] XZU412..DCB..6F |
68750-37010 |
US $37.45 |
||
|
68770
|
68770
68770-37010 Hinge Assy, Rear Door, Lower Rh[08.1999 - 06.2002] XZU412..DCB..6F |
68770-37010 |
US $52.27 |
||
| replacement | |||||
|
68770
|
68770
68770-37012 Hinge Assy, Rear Door, Lower Rh[08.1999 - 06.2002] XZU412..DCB..6F |
68770-37012 |
US $42.25 |
||
|
68780
|
68780
68780-37010 Hinge Assy, Rear Door, Lower Lh[08.1999 - 06.2002] XZU412..DCB..6F |
68780-37010 |
US $52.27 |
||
| replacement | |||||
|
68780
|
68780
68780-37012 Hinge Assy, Rear Door, Lower Lh[08.1999 - 06.2002] XZU412..DCB..6F |
68780-37012 |
US $42.25 |
||
|
69260E
|
69260E
69260-89104-B3 Handle Assy, Front Door Window Regulator[08.1999 - 06.2002] XZU412..DCB..6F MD.CHARCOAL,TRIM1# |
69260-89104-B3 |
from US $11.50 |
||
|
69260F
|
69260F
90520-01274 Ring, Shaft Snap(For Front Door Window Regulator Handle)[08.1999 - 06.2002] XZU412..DCB..6F |
90520-01274 |
from US $0.89 |
||
|
69272B
|
69272B
69268-20020
Plate, Window Regulator Handle
[08.1999 - 06.2002] XZU412..DCB..6F |
69268-20020 |
— | ||
| replacement | |||||
|
69272B
|
69272B
69285-22010-08 Escutcheon, Window Regulator Handle[08.1999 - 06.2002] XZU412..DCB..6F |
69285-22010-08 |
from US $1.63 |
||
|
69803
|
69803
69803-37020 Regulator Sub-Assy, Rear Door Window, Rh[08.1999 - 06.2002] XZU412..DCB..6F ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
69803-37020 |
US $50.23 |
||
|
69803
|
69803
69830-37010 Regulator Sub-Assy, Rear Door Window, Rh[08.1999 - 06.2002] XZU412..DCB..6F |
69830-37010 |
US $50.23 |
||
|
69804
|
69804
69804-37020 Regulator Sub-Assy, Rear Door Window, Lh[08.1999 - 06.2002] XZU412..DCB..6F ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
69804-37020 |
US $50.23 |
||
|
69804
|
69804
69840-37010 Regulator Sub-Assy, Rear Door Window, Lh[08.1999 - 06.2002] XZU412..DCB..6F |
69840-37010 |
US $50.23 |
||
|
69905B
|
69905B
69905-37010 Channel Sub-Assy, Rear Door Glass, Rh[08.1999 - 06.2002] XZU412..DCB..6F |
69905-37010 |
US $5.97 |
||
|
69906B
|
69906B
69906-37010 Channel Sub-Assy, Rear Door Glass, Lh[08.1999 - 06.2002] XZU412..DCB..6F |
69906-37010 |
US $5.97 |
||
|
69975A
|
69975A
69975-37010 Filler, Rear Door Glass Channel[08.1999 - 06.2002] XZU412..DCB..6F |
69975-37010 |
US $4.95 |
||
|
85710E
|
85710E
85720-37060 Motor Assy, Power Window Regulator, Rh[08.1999 - 06.2002] XZU412..DCB..6F |
85720-37060 |
US $283.92 |
||
|
85720D
|
85720D
85710-37050 Motor Assy, Power Window Regulator, Lh[08.1999 - 06.2002] XZU412..DCB..6F |
85710-37050 |
US $283.92 |
||
|
9011908892
|
9011908892
90119-08892 BOLT WWASHER |
90119-08892 |
from US $0.87 |
||
|
9016850013
|
9016850013
90168-50013 SCREW |
90168-50013 |
US $2.06 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $1.93 |
||
|
9165160818
|
9165160818
91651-60818 BOLTWWASHER |
91651-60818 |
from US $1.05 |
||
