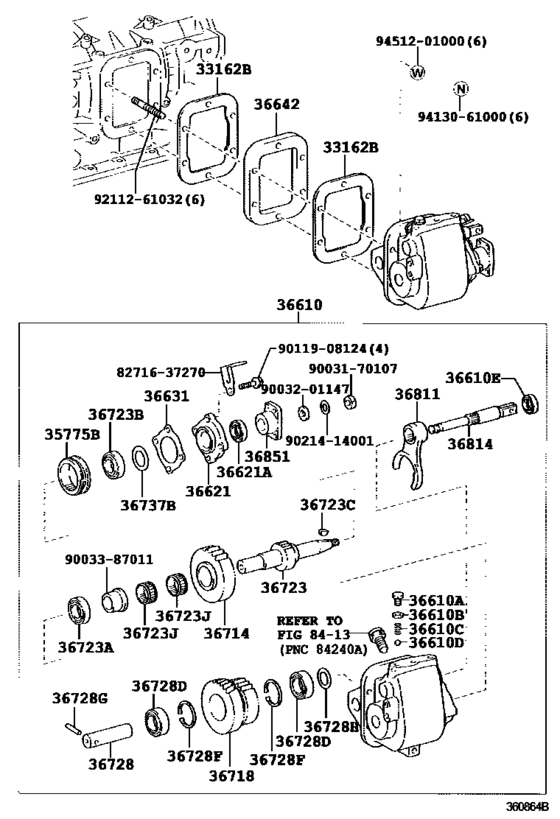

Power Take-Off Case & Gear ([01.2004 - ] MANUAL LEVER TYPE 25KG (0401- )XZU412,422..6F) Diagram Toyota DYNA/ TOYOACE
- Year
- 2004 - 2008
- Sales region
- Europe
- Frame
- XZU412
- ENGINE
- S05C
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- From
- 01.2004
- To
- 02.2008
- Gear Shift Type
- 6F
- Loading Capacity
- 75T
- Driver's Position
- LHD
- Fuel Induction
- TD
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33162B
|
33162B
33162-37030 Gasket, Manual Transmission Power Take-Off Cover[10.2001 - 02.2008] XZU412,420,422,430..6F |
33162-37030 |
US $5.91 |
||
|
35775B
|
35775B
35775-37010 Sleeve, Output Shaft[10.2001 - 02.2005] BU410,420,XZU404,41#,42#,43#..ARL,GCC,GEN,SA,TAIW |
35775-37010 |
US $14.12 |
||
|
35775B
|
35775B
35775-37030 Sleeve, Output Shaft[02.2005 - 02.2008] XZU412,420,422,430..6F |
35775-37030 |
US $42.22 |
||
|
36610
|
36610
36610-37220 Power Take-Off Assy[04.2003 - 02.2007] XZU412,420,422,430..6F VACUUM TYPE 25KG |
36610-37220 |
US $1,863.68 |
||
| replacement | |||||
|
36610
|
36610
36610-37221 Power Take-Off Assy[04.2003 - 02.2007] XZU412,420,422,430..6F VACUUM TYPE 25KG |
36610-37221 |
US $1,863.68 |
||
|
36610
|
36610
36610-37221 Power Take-Off Assy[03.2007 - 02.2008] XZU412,420,422,430 VACUUM TYPE 25KG |
36610-37221 |
US $1,863.68 |
||
|
36610
|
36610
36610-37230 Power Take-Off Assy[01.2004 - 02.2008] XZU412,422..6F MANUAL LEVER TYPE 25KG |
36610-37230 |
US $1,863.68 |
||
|
36610A
|
36610A
90031-01180 Bolt, Lock Ball (For Power Take-Off)[12.2002 - 02.2008] XZU412,422..6F |
90031-01180 |
US $1.31 |
||
|
36610B
|
36610B
90430-12001
Gasket, Seat (For Power Take-Off)
[12.2002 - 02.2008] XZU412,422..6F T=0.5 |
90430-12001 |
— | ||
|
36610B
|
36610B
90430-12004 Gasket, Seat (For Power Take-Off)[12.2002 - 02.2008] XZU412,422..6F T=2 |
90430-12004 |
US $0.61 |
||
|
36610B
|
36610B
90430-12006 Gasket, Seat (For Power Take-Off)[12.2002 - 02.2008] XZU412,422..6F T=1 |
90430-12006 |
US $1.02 |
||
|
36610C
|
36610C
90035-01053 Spring, Gear Shift Fork Lock Ball (For Power Take-Off)[12.2002 - 02.2008] XZU412,422..6F |
90035-01053 |
US $1.02 |
||
|
36610D
|
36610D
90360-10001
Ball, Gear Shift Fork Lock (For Power Take-Off)
[12.2002 - 02.2008] XZU412,422..6F |
90360-10001 |
— | ||
|
36610E
|
36610E
90311-20010 Seal, Oil (For Power Take-Off)[12.2002 - 02.2008] XZU412,422..6F |
90311-20010 |
US $2.61 |
||
|
36621
|
36621
36621-93200 Retainer, Power Take-Off Bearing[10.2001 - 02.2008] XZU412,422..6F;WU410,420,XZU420,430..SA |
36621-93200 |
US $33.78 |
||
|
36621A
|
36621A
90311-25110 Seal, Oil (For Power Take-Off Bearing Retainer)[10.2001 - 02.2008] XZU412,422..6F;WU410,420,XZU420,430..SA |
90311-25110 |
from US $5.20 |
||
|
36631
|
36631
36632-37030 Gasket, Power Take-Off Bearing Retainer[01.2003 - 02.2008] XZU412,422..6F;WU410,420,XZU420,430..SA |
36632-37030 |
US $3.06 |
||
|
36642
|
36642
36642-37060 Spacer, Power Take-Off Cover[04.2003 - 02.2008] XZU412,420,422,430..6F |
36642-37060 |
US $47.90 |
||
|
36714
|
36714
36714-37100 Gear, Power Take-Off Output[12.2002 - 02.2005] BU410,420,XZU41#,42#,43#..6F..(ARL,GEN,SA,TAIW) |
36714-37100 |
US $113.57 |
||
| replacements | |||||
|
36714
|
36714
35775-37030 Sleeve, Output Shaft[12.2002 - 02.2005] BU410,420,XZU41#,42#,43#..6F..(ARL,GEN,SA,TAIW) |
35775-37030 |
US $42.22 |
||
|
36714
|
36714
36714-37101 Gear, Power Take-Off OutputPOWER TAKE-OFF OUTPUT [12.2002 - 02.2005] BU410,420,XZU41#,42#,43#..6F..(ARL,GEN,SA,TAIW) |
36714-37101 |
from US $112.11 |
||
|
36714
|
36714
36714-37101 Gear, Power Take-Off OutputPOWER TAKE-OFF OUTPUT [02.2005 - 02.2008] XZU412,420,422,430..6F |
36714-37101 |
from US $112.11 |
||
|
36718
|
36718
36718-37100 Gear, Power Take-Off Idler[04.2003 - 02.2008] XZU412,420,422,430..6F |
36718-37100 |
from US $111.37 |
||
|
36723
|
36723
36723-37040 Shaft, Power Take-Off Output, No.1[12.2002 - 02.2008] XZU412,420,422,430..6F |
36723-37040 |
US $101.92 |
||
|
36723A
|
36723A
90366-22001 Bearing(For Power Take-Off Idler Gear Front)[04.2003 - 02.2008] XZU412,420,422,430..6F |
90366-22001 |
US $20.44 |
||
|
36723B
|
36723B
90366-25011 Bearing (For Output Shaft Rear)[12.2002 - 02.2008] XZU412,420,422,430..6F T=14 |
90366-25011 |
US $25.92 |
||
|
36723C
|
36723C
90280-07011 Key, Woodruff (For Power Take-Off Output Shaft)[10.2001 - 02.2008] XZU412,422..6F;WU410,420,XZU420,430..SA |
90280-07011 |
US $1.31 |
||
|
36723J
|
36723J
90364-28020 Bearing (For Power Take-Off Output Shaft)[10.2001 - 02.2008] XZU412,422..6F;WU410,420,XZU420,430..SA |
90364-28020 |
US $11.36 |
||
|
36728
|
36728
36728-93107
Shaft, Power Take-Off Idler
[12.2002 - 02.2008] XZU412,422..6F;WU410,420,XZU420,430..SA |
36728-93107 |
— | ||
|
36728D
|
36728D
90366-25006 Bearing (For Power Take-Off Idler Shaft)[12.2002 - 02.2008] XZU412,420,422,430..6F |
90366-25006 |
US $25.19 |
||
|
36728F
|
36728F
90035-21016 Ring, Shaft Snap (For Power Take-Off Idler Shaft)[12.2002 - 02.2008] XZU412,420,422,430..6F |
90035-21016 |
US $3.20 |
||
|
36728G
|
36728G
90254-04002 Plate Or Pin, Lock (For Power Take-Off)[10.2001 - 02.2008] XZU412,422..6F;WU410,420,XZU420,430..SA |
90254-04002 |
US $0.96 |
||
|
36728H
|
36728H
90564-25001 Shim (For Power Take-Off Idler Shaft)[10.2001 - 02.2008] XZU412,422..6F;WU410,420,XZU420,430..SA T=0.05 |
90564-25001 |
US $0.87 |
||
|
36728H
|
36728H
90564-25002 Shim (For Power Take-Off Idler Shaft)[10.2001 - 02.2008] XZU412,422..6F;WU410,420,XZU420,430..SA T=0.1 |
90564-25002 |
US $1.31 |
||
|
36728H
|
36728H
90564-25003 Shim (For Power Take-Off Idler Shaft)[10.2001 - 02.2008] XZU412,422..6F;WU410,420,XZU420,430..SA T=0.2 |
90564-25003 |
US $1.31 |
||
|
36728H
|
36728H
90564-25004 Shim (For Power Take-Off Idler Shaft)[10.2001 - 02.2008] XZU412,422..6F;WU410,420,XZU420,430..SA T=0.5 |
90564-25004 |
US $1.31 |
||
|
36737B
|
36737B
90564-42001 Shim (For Power Take-Off Idler Shaft)[10.2001 - 02.2008] XZU412,422..6F;WU410,420,XZU420,430..SA T=0.02-0.08 |
90564-42001 |
US $1.02 |
||
|
36737B
|
36737B
90564-42002 Shim (For Power Take-Off Idler Shaft)[10.2001 - 02.2008] XZU412,422..6F;WU410,420,XZU420,430..SA T=0.07-0.13 |
90564-42002 |
US $1.02 |
||
|
36737B
|
36737B
90564-42003 Shim (For Power Take-Off Idler Shaft)[10.2001 - 02.2008] XZU412,422..6F;WU410,420,XZU420,430..SA T=0.17-0.23 |
90564-42003 |
US $1.02 |
||
|
36737B
|
36737B
90564-42004 Shim (For Power Take-Off Idler Shaft)[10.2001 - 02.2008] XZU412,422..6F;WU410,420,XZU420,430..SA T=0.47-0.53 |
90564-42004 |
US $1.02 |
||
|
36811
|
36811
36811-93104 Fork, Powr Take-Off Shift, No.1[10.2001 - 02.2008] XZU412,422..6F;WU410,420,XZU420,430..SA |
36811-93104 |
US $12.41 |
||
|
36814
|
36814
36814-37030 Shaft, Powr Take-Off Fork, No.1[01.2004 - 02.2008] XZU412,422..6F |
36814-37030 |
US $25.33 |
||
|
36814
|
36814
36814-37060 Shaft, Powr Take-Off Fork, No.1[12.2002 - 02.2008] XZU412,422..6F MANUAL LEVER TYPE 25KG |
36814-37060 |
US $19.22 |
||
|
36851
|
36851
36851-37010 Retainer, Power Take-Off Joint[10.2001 - 02.2008] XZU412,422..6F;WU410,420,XZU420,430..SA |
36851-37010 |
US $16.45 |
||
|
8271637270
|
8271637270
82716-37270 Bracket, Wiring Harness Clamp, Lh |
82716-37270 |
US $3.49 |
||
|
9003170107
|
9003170107
90031-70107 New Genuine Part |
90031-70107 |
US $1.31 |
||
|
9003201147
|
9003201147
90032-01147 New Genuine Part |
90032-01147 |
US $1.31 |
||
|
9003387011
|
9003387011
90033-87011 New Genuine Part |
90033-87011 |
US $7.28 |
||
|
9011908124
|
9011908124
90119-08124 New Genuine Part |
90119-08124 |
US $1.60 |
||
|
9021414001
|
9021414001
90214-14001 Washer, Lock (For Center Bearing Shaft) |
90214-14001 |
US $7.13 |
||
|
9211261032
|
9211261032
92112-61032 Bolt, Stud(For Manifold To Cylinder Head) |
92112-61032 |
US $3.06 |
||
|
9413061000
|
9413061000
94130-61000 Nut(For Clutch Pedal Stopper) |
94130-61000 |
from US $0.76 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.80 |
||
