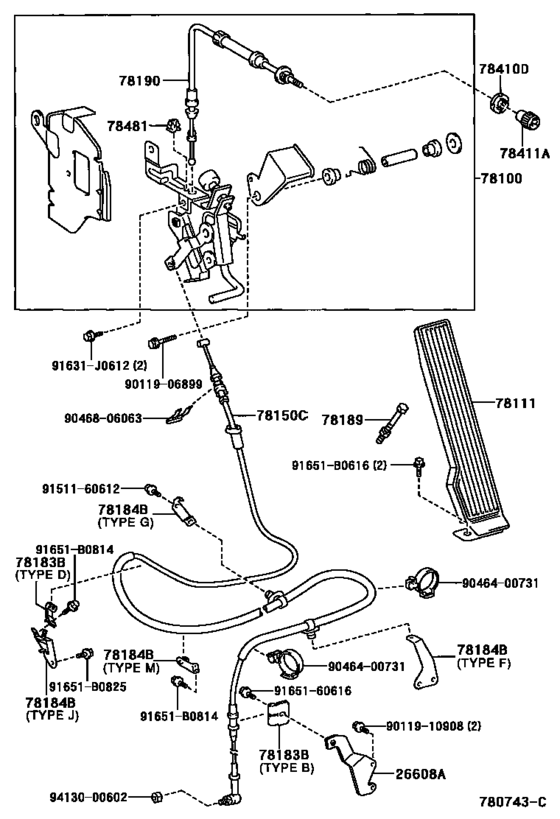

Accelerator Link ([12.2002 - 10.2006] (0212-0610)XZU412..RHD..TD) Diagram Toyota DYNA/ TOYOACE
- Year
- 2002 - 2006
- Sales region
- Europe
- Frame
- XZU412
- ENGINE
- S05C
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- From
- 12.2002
- To
- 10.2006
- Gear Shift Type
- 5F
- Loading Capacity
- 55T
- Driver's Position
- RHD
- Fuel Induction
- TD
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
26608A
|
26608A
26608-78060 Bracket Sub-Assy, Accelerator WireACCELERATOR WIRE [04.2003 - 10.2006] S05C..XZU412,422..5F..TD |
26608-78060 |
US $68.14 |
||
|
78100
|
78100
78100-37740 Link Assy, AcceleratorACCELERATOR [12.2002 - 10.2006] WU410,XZU412,422..RHD..GEN |
78100-37740 |
US $100.46 |
||
|
78111
|
78111
78110-95410 Pedal, Accelerator[10.2001 - 10.2006] XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
78110-95410 |
from US $22.01 |
||
|
78150C
|
78150C
78150-37640 Wire Assy, Accelerator FlexibleACCELERATOR FLEXIBLE [12.2002 - 10.2006] XZU412..RHD..TD |
78150-37640 |
US $80.08 |
||
|
78183B
|
78183B
78183-37300 Clamp, Accelerator Control Cable[12.2002 - 10.2006] WU410..RHD..GEN;XZU412..RHD..TD TYPE D:REFER ILLUST. |
78183-37300 |
US $3.93 |
||
|
78183B
|
78183B
78183-37330 Clamp, Accelerator Control Cable[12.2002 - 10.2006] WU410..GCC,GEN;XZU412,422..5F..TD;XZU412,422..RHD..DSL TYPE B:REFER ILLUST. |
78183-37330 |
US $3.64 |
||
|
78184B
|
78184B
78184-37210 Bracket, Accelerator Control CableACCELERATOR CONTROL CABLE [12.2002 - 10.2006] XZU412..RHD..TD TYPE F:REFER ILLUST. |
78184-37210 |
US $24.75 |
||
|
78184B
|
78184B
78184-37220 Bracket, Accelerator Control CableACCELERATOR CONTROL CABLE [12.2002 - 10.2006] XZU412..RHD..TD TYPE G:REFER ILLUST. |
78184-37220 |
US $13.98 |
||
|
78184B
|
78184B
78184-37330 Bracket, Accelerator Control CableACCELERATOR CONTROL CABLE [12.2002 - 10.2006] WU410..RHD..GEN;XZU412..RHD..TD TYPE J:REFER ILLUST. |
78184-37330 |
US $32.18 |
||
|
78184B
|
78184B
78184-37370
Bracket, Accelerator Control Cable
[12.2002 - 10.2006] XZU412..RHD..TD TYPE M:REFER ILLUST. |
78184-37370 |
— | ||
|
78189
|
78189
78208-37060 Bolt, Accelerator Pedal Stopper[12.2002 - 10.2006] WU410,XZU412,422..RHD..GEN |
78208-37060 |
US $2.33 |
||
|
78190
|
78190
78190-37010 Cable Assy, Accel Control W/throttle[12.2002 - 10.2006] WU410,XZU412,422..RHD..GEN |
78190-37010 |
US $19.22 |
||
|
78410D
|
78410D
78314-95010 Nut, Choke[02.2003 - 10.2006] WU410,XZU412,422..5F..(GCC,GEN) |
78314-95010 |
from US $1.88 |
||
|
78411A
|
78411A
78411-95J01 Knob, Throttle Cable[02.2003 - 10.2006] WU410,XZU412,422..5F..(GCC,GEN) |
78411-95J01 |
from US $4.95 |
||
|
78481
|
78481
78481-37010 Clamp, Throttle Wire[12.2002 - 10.2006] WU410,XZU412,422..RHD..GEN |
78481-37010 |
US $1.10 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.72 |
||
|
91651B0616
|
91651B0616
91651-B0616 BOLT WWASHER |
91651-B0616 |
from US $0.84 |
||
|
91651B0814
|
91651B0814
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.86 |
||
|
91651B0825
|
91651B0825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.84 |
||
|
9011906899
|
9011906899
90119-06899 New Genuine Part |
90119-06899 |
US $1.31 |
||
|
9011910908
|
9011910908
90119-10908 New Genuine Part |
90119-10908 |
US $2.18 |
||
|
9046400731
|
9046400731
90464-00731 Clamp Or Clip(For Water Hose) |
90464-00731 |
US $2.48 |
||
|
9046806063
|
9046806063
90468-06063 CLIP |
90468-06063 |
US $1.61 |
||
|
9151160612
|
9151160612
91511-60612 BOLT |
91511-60612 |
US $1.97 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.94 |
||
|
9413000602
|
9413000602
94130-00602 New Genuine Part |
94130-00602 |
US $0.87 |
