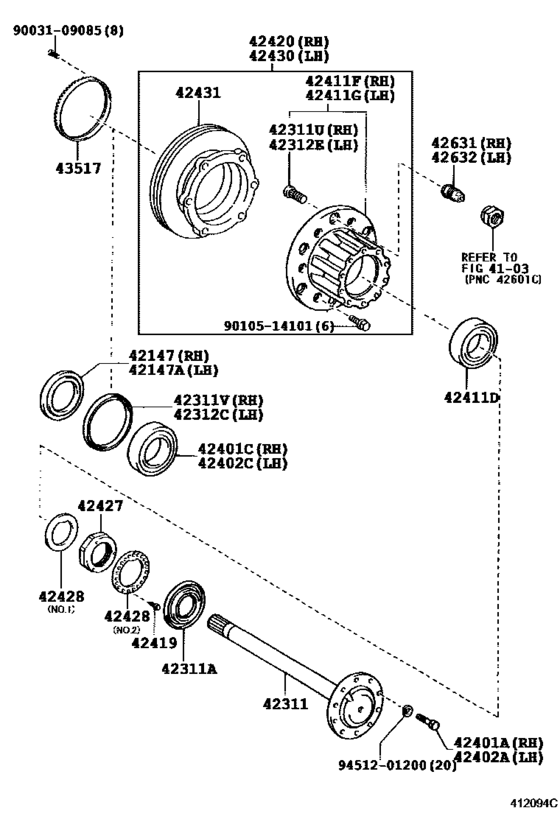

Rear Axle Shaft & Hub ([06.2004 - ] (0406- )XZU40#,41#,42#,433..30T,35T,40T..DCR, DCRL,DSL,DSLL) Diagram Toyota DYNA/ TOYOACE
- Year
- 2004 - 2006
- Sales region
- Japan
- Frame
- XZU433
- ENGINE
- J05D
- TRANSMISSION
- MTM
- DECK
- T3
- CAB
- SCB
- Model
- DYNA/TOYOACE
- From
- 06.2004
- To
- 10.2006
- Gear Shift Type
- 6F
- Loading Capacity
- 35T
- Fuel Induction
- DCRL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42147
|
42147
42147-37010 Guide, Rear Axle Oil Seal, Rh[06.2004 - 10.2006] XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
42147-37010 |
US $33.77 |
||
|
42147A
|
42147A
42147-37010 Guide, Rear Axle Oil Seal, Rh[06.2004 - 10.2006] XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
42147-37010 |
US $33.77 |
||
|
42311
|
42311
42311-37150 Shaft, Rear Axle[06.2004 - 10.2006] XZU423,433..T3;XZU404,413,414..40T |
42311-37150 |
US $329.06 |
||
|
42311A
|
42311A
90033-11032 Seal, Oil (For Rear Axle Shaft)[06.2004 - 10.2006] XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
90033-11032 |
from US $21.34 |
||
|
42311U
|
42311U
90942-02071 Bolt, Hub (For Rear Axle Rh)[06.2004 - 10.2006] XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
90942-02071 |
from US $7.29 |
||
|
42311V
|
42311V
90033-11031 Seal, Oil (For Rear Axle Shaft Rh)[06.2004 - 10.2006] XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
90033-11031 |
from US $36.96 |
||
|
42312C
|
42312C
90033-11031 Seal, Oil (For Rear Axle Shaft Rh)[06.2004 - 10.2006] XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
90033-11031 |
from US $36.96 |
||
|
42312E
|
42312E
90942-02072 Bolt, Hub (For Rear Axle Lh)[06.2004 - 10.2006] XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
90942-02072 |
from US $7.06 |
||
|
42401A
|
42401A
90031-01163 Bolt, Stud (For Rear Axle Hub Rh)[06.2004 - 10.2006] XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
90031-01163 |
US $3.40 |
||
|
42401C
|
42401C
90033-66030 Bearing (For Rear Axle Hub Inner Rh)[06.2004 - 10.2006] XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
90033-66030 |
US $90.20 |
||
|
42402A
|
42402A
90031-01163 Bolt, Stud (For Rear Axle Hub Rh)[06.2004 - 10.2006] XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
90031-01163 |
US $3.40 |
||
|
42402C
|
42402C
90033-66030 Bearing (For Rear Axle Hub Inner Rh)[06.2004 - 10.2006] XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
90033-66030 |
US $90.20 |
||
|
42411D
|
42411D
90033-66031 Bearing, Tapered Roller (For Rear Axle Outer Bearing)[06.2004 - 10.2006] XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
90033-66031 |
US $84 |
||
|
42411F
|
42411F
42401-37050 Hub, Rear Axle, Rh[06.2004 - 10.2006] XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
42401-37050 |
US $738.19 |
||
|
42411G
|
42411G
42402-37050 Hub, Rear Axle, Lh[06.2004 - 10.2006] XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
42402-37050 |
US $738.19 |
||
|
42419
|
42419
90119-06199 Bolt(For Manual Transmission Oil Pump Cover)[06.2004 - 10.2006] XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
90119-06199 |
US $1.25 |
||
|
42420
|
42420
42430-39175 Hub (Or Shaft) & Brake Drum Rear Axle, Rh[06.2004 - 10.2006] XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
42430-39175 |
from US $854.88 |
||
|
42427
|
42427
42427-37030 Nut, Rear Axle Bearing Lock[06.2004 - 10.2006] XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
42427-37030 |
US $36.29 |
||
|
42428
|
42428
42428-37010 Plate, Rear Axle Lock Nut[06.2004 - 10.2006] XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) ＮＯ．１ |
42428-37010 |
US $10.39 |
||
|
42428
|
42428
42428-37030 Plate, Rear Axle Lock Nut[06.2004 - 10.2006] XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) ＮＯ．２ |
42428-37030 |
US $8.42 |
||
|
42430
|
42430
42430-39185 Hub (Or Shaft) & Brake Drum Rear Axle, Lh[06.2004 - 10.2006] XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
42430-39185 |
from US $854.88 |
||
|
42431
|
42431
42431-37040
Disc, Rear
[06.2004 - 10.2006] XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
42431-37040 |
— | ||
| replacement | |||||
|
42431
|
42431
42431-37041 Disc, Rear[06.2004 - 10.2006] XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
42431-37041 |
from US $113.16 |
||
|
42631
|
42631
42631-55031 Bolt, Double Wheel Stop, Rh[06.2004 - 09.2006] BZU410,XZU40#,41#,42#,433..30T,35T,40T |
42631-55031 |
from US $12.30 |
||
|
42632
|
42632
42632-55031 Bolt, Double Wheel Stop, Lh[06.2004 - 09.2006] BZU410,XZU40#,41#,42#,433..30T,35T,40T |
42632-55031 |
from US $12.44 |
||
|
43517
|
43517
43517-37030 Rotor, Skid Control, Rear[06.2004 - 10.2006] XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
43517-37030 |
US $93.48 |
||
|
9003109085
|
9003109085
90031-09085 New Genuine Part |
90031-09085 |
US $1.08 |
||
|
9010514101
|
9010514101
90105-14101 BOLT WASHER BASED |
90105-14101 |
from US $1.81 |
||
|
9451201200
|
9451201200
94512-01200 Washer |
94512-01200 |
from US $0.72 |
||
