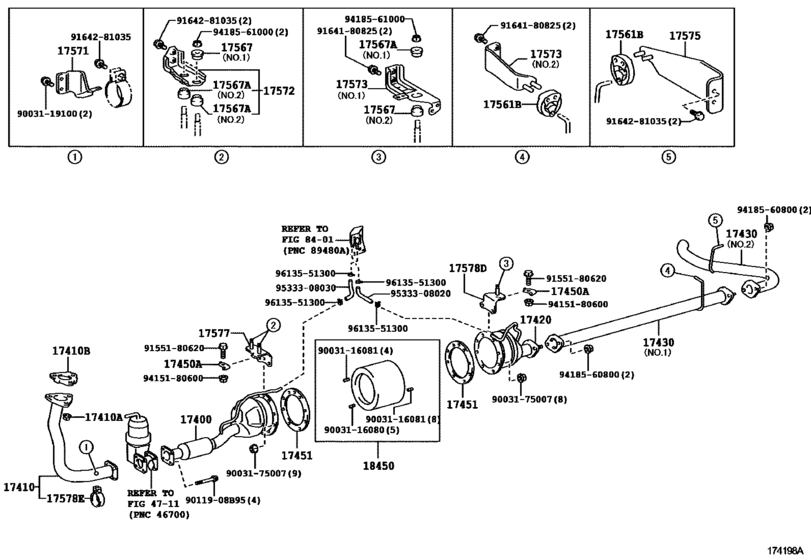

Exhaust Pipe ([06.2004 - ] (0406- )J05D..XZU433) Diagram Toyota DYNA/ TOYOACE
- Year
- 2004 - 2006
- Sales region
- Japan
- Frame
- XZU433
- ENGINE
- J05D
- TRANSMISSION
- MTM
- DECK
- T3
- CAB
- SCB
- Model
- DYNA/TOYOACE
- From
- 06.2004
- To
- 10.2006
- Gear Shift Type
- 6F
- Loading Capacity
- 35T
- Fuel Induction
- DCRL
- Building Condition
- IV3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17400
|
17400
17406-78160 Converter Assy, W/catalyst[06.2004 - 10.2006] J05D..XZU413,423,433 |
17406-78160 |
US $2,315.04 |
||
|
17410
|
17410
17401-78260 Pipe Assy, Exhaust, Front[06.2004 - 10.2006] J05D..XZU413,423,433 |
17401-78260 |
US $302.85 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[06.2004 - 10.2006] J05D,N04C,S05D..XZU388,40#,411,413,414,42#,433..DCRL,DSL,DSLL |
90179-10070 |
from US $1.37 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[06.2004 - 10.2006] J05D,N04C,S05D..XZU388,40#,411,413,414,42#,433..DCRL,DSL,DSLL |
90080-17187 |
US $44.70 |
||
|
17410B
|
17410B
90917-06087 Gasket, Turbine Outlet Elbow[06.2004 - 10.2006] J05D,N04C,S05D..XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
90917-06087 |
from US $7.86 |
||
|
17420
|
17420
17403-78650 Pipe Assy, Exhaust, Center[06.2004 - 10.2006] J05D..XZU413,423,433 |
17403-78650 |
US $347.98 |
||
|
17430
|
17430
17405-78890 Pipe Assy, Exhaust, Tail[06.2004 - 10.2006] N04C,S05D..XZU40#..30T,35T,40T; J05D,N04C,S05D..XZU42#,433..30T,35T,40T ＮＯ．２; N04C..XZU414..20T..CBU;N04C..XZU414..(30T,35T,40T)..(DCRL,DSLL);J05D,S05D..XZU411, 413..SCB..(T3,T4,T5)..CBU;J05D,N04C,S05D..XZU411,413,415..(30T,35T,40T)..I |
17405-78890 |
US $310.40 |
||
|
17430
|
17430
17405-78A40 Pipe Assy, Exhaust, Tail[06.2004 - 10.2006] J05D..XZU433 ＮＯ．１ |
17405-78A40 |
US $232.96 |
||
|
17450A
|
17450A
17589-78020 Clamp, Exhaust Pipe, No.5[06.2004 - 08.2004] J05D,N04C,S05D..XZU388,40#,41#,42#,433 |
17589-78020 |
US $5.10 |
||
| replacement | |||||
|
17450A
|
17450A
17589-78021 Clamp, Exhaust Pipe, No.5[06.2004 - 08.2004] J05D,N04C,S05D..XZU388,40#,41#,42#,433 |
17589-78021 |
US $7.88 |
||
|
17450A
|
17450A
17589-78021 Clamp, Exhaust Pipe, No.5[08.2004 - 10.2006] J05D,N04C,S05D..XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
17589-78021 |
US $7.88 |
||
|
17451
|
17451
17451-78020 Gasket, Exhaust Pipe[06.2004 - 10.2006] J05D,N04C,S05D..XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
17451-78020 |
US $17.98 |
||
|
17561B
|
17561B
17561-73020 Bolt Or Ring, Exhaust Tail Pipe (For Front)[06.2004 - 10.2006] J05D,N04C,S05D..XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
17561-73020 |
from US $6.65 |
||
|
17567
|
17567
17567-78030 Cushion, Exhaust Pipe Support[06.2004 - 10.2006] J05D,N04C,S05D..XZU388,40#,41#,42#,433..DCRL,DSL,DSLL ＮＯ．１ |
17567-78030 |
US $11.29 |
||
|
17567
|
17567
17567-78040 Cushion, Exhaust Pipe Support[06.2004 - 10.2006] J05D,N04C,S05D..XZU388,40#,41#,42#,433..DCRL,DSL,DSLL ＮＯ．２ |
17567-78040 |
US $6.09 |
||
|
17567A
|
17567A
17567-78030 Cushion, Exhaust Pipe Support[06.2004 - 10.2006] J05D,N04C,S05D..XZU388,40#,41#,42#,433..DCRL,DSL,DSLL ＮＯ．１ |
17567-78030 |
US $11.29 |
||
|
17567A
|
17567A
17567-78040 Cushion, Exhaust Pipe Support[06.2004 - 10.2006] J05D,N04C,S05D..XZU388,40#,41#,42#,433..DCRL,DSL,DSLL ＮＯ．２ |
17567-78040 |
US $6.09 |
||
|
17571
|
17571
17571-78030 Bracket, Exhaust Pipe Support, No.1[06.2004 - 10.2006] J05D,S05D..XZU401,411,413,421,423,433 |
17571-78030 |
US $22.28 |
||
|
17572
|
17572
17572-78210 Bracket, Exhaust Pipe No.1 Support[06.2004 - 10.2006] N04C..XZU388 ＮＯ．１; J05D,N04C,S05D..XZU40#,41#,42#,433..DCRL,DSL,DSLL |
17572-78210 |
US $32.76 |
||
|
17573
|
17573
17573-78230 Bracket, Exhaust Pipe No.1 Support, Lower[06.2004 - 10.2006] N04C,S05D..XZU40#; J05D,N04C,S05D..XZU41#,42#,433..DCRL,DSL,DSLL ＮＯ．１ |
17573-78230 |
US $32.76 |
||
|
17573
|
17573
17573-78240 Bracket, Exhaust Pipe No.1 Support, Lower[06.2004 - 10.2006] J05D,N04C,S05D..XZU41#,42#,433..DCRL,DSL,DSLL ＮＯ．２ |
17573-78240 |
US $27.66 |
||
|
17575
|
17575
17575-78230 Bracket, Exhaust Pipe Support, No.5[06.2004 - 07.2004] J05D,N04C,S05D..XZU40#,41#,42#,433 |
17575-78230 |
US $43.68 |
||
| replacement | |||||
|
17575
|
17575
17575-78231 Bracket, Exhaust Pipe Support, No.5[06.2004 - 07.2004] J05D,N04C,S05D..XZU40#,41#,42#,433 |
17575-78231 |
US $27.52 |
||
|
17575
|
17575
17575-78231 Bracket, Exhaust Pipe Support, No.5[08.2004 - 10.2006] J05D,N04C,S05D..XZU40#,41#,42#,433..DCRL,DSL,DSLL |
17575-78231 |
US $27.52 |
||
|
17577
|
17577
17577-78060 Bracket, Exhaust Pipe Support, No.7[06.2004 - 10.2006] J05D,N04C,S05D..XZU40#,41#,42#,433..DCRL,DSL,DSLL |
17577-78060 |
US $29.27 |
||
|
17578D
|
17578D
17578-78150 Bracket, Exhaust Pipe Support, No.8[06.2004 - 10.2006] J05D..XZU413,423,433 |
17578-78150 |
US $48.92 |
||
|
17578E
|
17578E
17578-78010 Clamp, Pipe(For Front Exhaust Pipe)[06.2004 - 10.2006] N04C..XZU414..DSLL ＮＯ．１; J05D,N04C,S05D..XZU388,40#,411,413,414,42#,433..DCRL,DSL |
17578-78010 |
US $31.25 |
||
|
18450
|
18450
18450-78140 Converter Assy, Monolithic[06.2004 - 10.2006] J05D..XZU413,423,433 |
18450-78140 |
US $3,334.24 |
||
|
9011908B95
|
9011908B95
90119-08B95 BOLTWWASHER |
90119-08B95 |
from US $0.92 |
||
|
9003116080
|
9003116080
90031-16080 New Genuine Part |
90031-16080 |
US $2.33 |
||
|
9003116081
|
9003116081
90031-16081 New Genuine Part |
90031-16081 |
US $2.33 |
||
|
9003119100
|
9003119100
90031-19100 New Genuine Part |
90031-19100 |
US $1.79 |
||
|
9003175007
|
9003175007
90031-75007 NUTFLANGE |
90031-75007 |
US $1.43 |
||
|
9155180620
|
9155180620
91551-80620 Bolt |
91551-80620 |
from US $0.64 |
||
|
9164180825
|
9164180825
91641-80825 BOLT WWASHER |
91641-80825 |
US $2.33 |
||
|
9164281035
|
9164281035
91642-81035 BOLT WWASHER |
91642-81035 |
US $4.30 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
||
|
9418560800
|
9418560800
94185-60800 NUT |
94185-60800 |
from US $0.82 |
||
|
9418561000
|
9418561000
94185-61000 NUTLOCK |
94185-61000 |
from US $0.96 |
||
|
9533308020
|
9533308020
95333-08020
Hose, Lpg Injector
|
95333-08020 |
— | ||
| replacement | |||||
|
9533308020
|
9533308020
95337-08020 Hose, Fuel(For Fuel Evaporative Separator)FUEL, NO.1(FOR RETURN TUBE, NO.1) |
95337-08020 |
from US $5.56 |
||
|
9533308030
|
9533308030
95333-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter) |
95333-08030 |
US $11.83 |
||
|
9613551300
|
9613551300
96135-51300 Clamp, Hose |
96135-51300 |
from US $2.13 |
||
