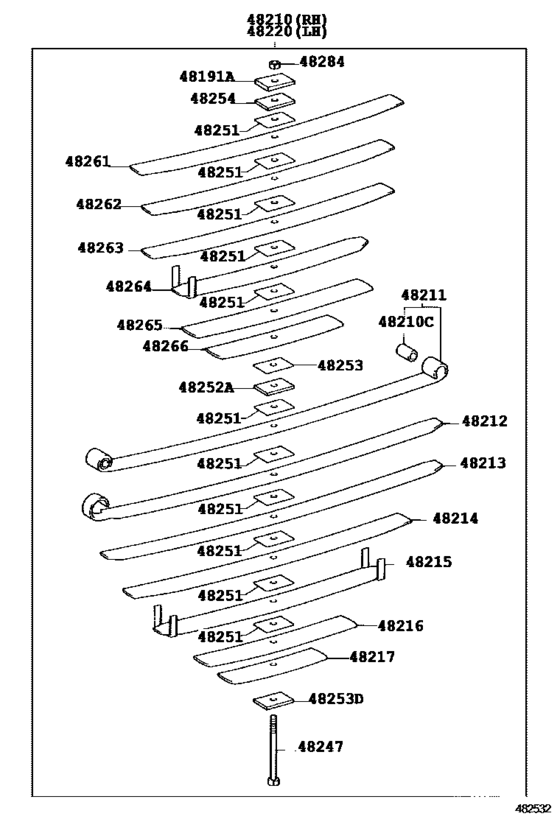

Rear Spring & Shock Absorber ([06.2004 - 10.2006] MAIN 7+HELPER 6-LEAF (0406-0610)XZU423,433..40T ; (0610- )XZU424,4 34..40T) Diagram Toyota DYNA/ TOYOACE
- Year
- 2004 - 2006
- Sales region
- Japan
- Frame
- XZU433
- ENGINE
- J05D
- TRANSMISSION
- MTM
- DECK
- T3
- CAB
- SCB
- Model
- DYNA/TOYOACE
- From
- 06.2004
- To
- 10.2006
- Gear Shift Type
- 6F
- Loading Capacity
- 40T
- Fuel Induction
- DCRL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48191A
|
48191A
48192-37100 Wedge, Caster(For Rear Leaf Spring)[06.2004 - 10.2006] XZU40#,41#,42#,433..DCRL,DSL,DSLL |
48192-37100 |
US $28.39 |
||
|
48210
|
48210
48210-3V280 Spring Assy, Rear Rh[06.2004 - 10.2006] XZU423,433..40T メイン７枚リーフ＋サブ６枚リーフ |
48210-3V280 |
US $1,718.08 |
||
|
48210
|
48210
48210-3V540 Spring Assy, Rear Rh[06.2004 - 10.2006] XZU404..40T..IV3;XZU413,414,423,433..40T メイン２枚リーフ＋サブ３枚リーフ |
48210-3V540 |
US $942.03 |
||
| replacement | |||||
|
48210
|
48210
48210-3V541 Spring Assy, Rear Rh[06.2004 - 10.2006] XZU404..40T..IV3;XZU413,414,423,433..40T メイン２枚リーフ＋サブ３枚リーフ |
48210-3V541 |
US $856.13 |
||
|
48210
|
48210
48210-3V560 Spring Assy, Rear Rh[06.2004 - 10.2006] XZU414..40T..CBU;XZU413,423,433..40T メイン２枚リーフ＋サブ３枚リーフ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
48210-3V560 |
US $1,195.38 |
||
| replacement | |||||
|
48210
|
48210
48210-3V561 Spring Assy, Rear Rh[06.2004 - 10.2006] XZU414..40T..CBU;XZU413,423,433..40T メイン２枚リーフ＋サブ３枚リーフ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
48210-3V561 |
US $1,195.38 |
||
|
48210C
|
48210C
90033-84013 Bimetal Formed Bush(For Front Spring)[06.2004 - 10.2006] XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
90033-84013 |
US $14.16 |
||
|
48211
|
48211
48201-3V280 Leaf, Rear Spring, No.1[06.2004 - 10.2006] XZU423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
48201-3V280 |
US $266.45 |
||
|
48211
|
48211
48201-3V540 Leaf, Rear Spring, No.1[06.2004 - 10.2006] XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ |
48201-3V540 |
US $262.08 |
||
| replacement | |||||
|
48211
|
48211
48201-3V541 Leaf, Rear Spring, No.1[06.2004 - 10.2006] XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ |
48201-3V541 |
US $237.33 |
||
|
48211
|
48211
48201-3V560 Leaf, Rear Spring, No.1[06.2004 - 10.2006] XZU414..40T..CBU;XZU413,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ |
48201-3V560 |
US $343.62 |
||
| replacement | |||||
|
48211
|
48211
48201-3V561 Leaf, Rear Spring, No.1[06.2004 - 10.2006] XZU414..40T..CBU;XZU413,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ |
48201-3V561 |
US $343.62 |
||
|
48212
|
48212
48202-3V540 Leaf, Rear Spring, No.2[06.2004 - 10.2006] XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ |
48202-3V540 |
US $317.41 |
||
| replacements | |||||
|
48212
|
48212
48202-3V541 Leaf, Rear Spring, No.2[06.2004 - 10.2006] XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ |
48202-3V541 |
US $288.29 |
||
|
48212
|
48212
48252-37521 Silencer, Front Spring, No.1[06.2004 - 10.2006] XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ |
48252-37521 |
US $12.54 |
||
|
48212
|
48212
48202-3V560 Leaf, Rear Spring, No.2[06.2004 - 10.2006] XZU414..40T..CBU;XZU413,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ |
48202-3V560 |
US $381.47 |
||
| replacements | |||||
|
48212
|
48212
48202-3V561 New Genuine Part[06.2004 - 10.2006] XZU414..40T..CBU;XZU413,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ |
48202-3V561 |
US $401.86 |
||
|
48212
|
48212
48252-37521 Silencer, Front Spring, No.1[06.2004 - 10.2006] XZU414..40T..CBU;XZU413,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ |
48252-37521 |
US $12.54 |
||
|
48212
|
48212
48212-3V280 Leaf, Rear Spring, No.2[06.2004 - 10.2006] XZU423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
48212-3V280 |
US $225.68 |
||
|
48213
|
48213
48213-3V280 Leaf, Rear Spring, No.3[06.2004 - 10.2006] XZU423,433..40T |
48213-3V280 |
US $180.54 |
||
|
48214
|
48214
48205-3V280 Leaf, Rear Spring, No.4[06.2004 - 10.2006] XZU423,433..40T |
48205-3V280 |
US $177.63 |
||
|
48215
|
48215
48215-3V280 Leaf, Rear Spring, No.5[06.2004 - 10.2006] XZU423,433..40T |
48215-3V280 |
US $103.38 |
||
|
48216
|
48216
48216-3V280 Leaf, Rear Spring, No.6[06.2004 - 10.2006] XZU423,433..40T |
48216-3V280 |
US $71.93 |
||
|
48217
|
48217
48217-3V280 Leaf, Rear Spring, No.7[06.2004 - 10.2006] XZU423,433..40T |
48217-3V280 |
US $39.60 |
||
|
48220
|
48220
48210-3V280 Spring Assy, Rear Rh[06.2004 - 10.2006] XZU423,433..40T メイン７枚リーフ＋サブ６枚リーフ |
48210-3V280 |
US $1,718.08 |
||
|
48220
|
48220
48210-3V540 Spring Assy, Rear Rh[06.2004 - 10.2006] XZU404..40T..IV3;XZU413,414,423,433..40T メイン２枚リーフ＋サブ３枚リーフ |
48210-3V540 |
US $942.03 |
||
| replacement | |||||
|
48220
|
48220
48210-3V541 Spring Assy, Rear Rh[06.2004 - 10.2006] XZU404..40T..IV3;XZU413,414,423,433..40T メイン２枚リーフ＋サブ３枚リーフ |
48210-3V541 |
US $856.13 |
||
|
48220
|
48220
48210-3V560 Spring Assy, Rear Rh[06.2004 - 10.2006] XZU414..40T..CBU;XZU413,423,433..40T メイン２枚リーフ＋サブ３枚リーフ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
48210-3V560 |
US $1,195.38 |
||
| replacement | |||||
|
48220
|
48220
48210-3V561 Spring Assy, Rear Rh[06.2004 - 10.2006] XZU414..40T..CBU;XZU413,423,433..40T メイン２枚リーフ＋サブ３枚リーフ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
48210-3V561 |
US $1,195.38 |
||
|
48247
|
48247
48247-3V280 Bolt, Rear Spring, Center[06.2004 - 10.2006] XZU423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
48247-3V280 |
US $6.12 |
||
|
48247
|
48247
48247-3V540 Bolt, Rear Spring, Center[06.2004 - 10.2006] XZU404..40T..IV3;XZU413,414,423,433..40T |
48247-3V540 |
US $6.84 |
||
| replacement | |||||
|
48247
|
48247
48247-3V480 Bolt, Rear Spring, Center[06.2004 - 10.2006] XZU404..40T..IV3;XZU413,414,423,433..40T |
48247-3V480 |
US $6.12 |
||
|
48251
|
48251
48253-3V020 Spacer, Rear Spring Leaf[06.2004 - 10.2006] XZU404..40T..IV3;XZU413,414,423,433..40T |
48253-3V020 |
US $10.77 |
||
| replacement | |||||
|
48251
|
48251
S4814-E0010 Spacer, Rear Spring Leaf[06.2004 - 10.2006] XZU404..40T..IV3;XZU413,414,423,433..40T |
S4814-E0010 |
US $10.77 |
||
|
48251
|
48251
48282-3V150 Spacer, Rear Spring Leaf[06.2004 - 10.2006] XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
48282-3V150 |
US $7.28 |
||
|
48252A
|
48252A
48269-3V150 Spacer, Rear Spring, No.2[06.2004 - 10.2006] XZU423,433..40T;XZU404..40T..CBU |
48269-3V150 |
US $45.14 |
||
|
48253
|
48253
48254-3V080 Spacer, Rear Spring, No.1[06.2004 - 10.2006] XZU404..40T..IV3;XZU413,414,423,433..40T |
48254-3V080 |
US $13.69 |
||
|
48253
|
48253
48267-3V150 Spacer, Rear Spring, No.1[06.2004 - 10.2006] XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
48267-3V150 |
US $32.03 |
||
|
48253D
|
48253D
48218-3V280 Spacer, Rear Spring, No.3[06.2004 - 10.2006] XZU423,433..40T |
48218-3V280 |
from US $49.50 |
||
|
48254
|
48254
48254-3V070 Spacer, Rear Spring Leaf[06.2004 - 10.2006] XZU404..40T..IV3;XZU413,414,423,433..40T |
48254-3V070 |
US $13.69 |
||
|
48254
|
48254
48268-3V150 Spacer, Rear Spring Leaf[06.2004 - 10.2006] XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
48268-3V150 |
US $40.77 |
||
|
48261
|
48261
48213-3V540 Leaf, Rear Helper Spring, No.1[06.2004 - 10.2006] XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ |
48213-3V540 |
US $132.50 |
||
| replacement | |||||
|
48261
|
48261
48213-3V541
Leaf, Rear Helper Spring, No.1
[06.2004 - 10.2006] XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ |
48213-3V541 |
— | ||
|
48261
|
48261
48213-3V560 Leaf, Rear Helper Spring, No.1[06.2004 - 10.2006] XZU414..40T..CBU;XZU413,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ |
48213-3V560 |
US $165.98 |
||
| replacement | |||||
|
48261
|
48261
48213-3V561 Leaf, Rear Helper Spring, No.1[06.2004 - 10.2006] XZU414..40T..CBU;XZU413,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ |
48213-3V561 |
US $165.98 |
||
|
48261
|
48261
48261-3V280 Leaf, Rear Helper Spring, No.1[06.2004 - 10.2006] XZU423,433..40T |
48261-3V280 |
US $147.06 |
||
|
48262
|
48262
48214-3V540 Leaf, Rear Helper Spring, No.2[06.2004 - 10.2006] XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ |
48214-3V540 |
US $125.22 |
||
| replacement | |||||
|
48262
|
48262
48214-3V541 Leaf, Rear Helper Spring, No.2[06.2004 - 10.2006] XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ |
48214-3V541 |
US $113.57 |
||
|
48262
|
48262
48214-3V560 Leaf, Rear Helper Spring, No.2[06.2004 - 10.2006] XZU414..40T..CBU;XZU413,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ |
48214-3V560 |
US $157.25 |
||
| replacement | |||||
|
48262
|
48262
48214-3V561 Leaf, Rear Helper Spring, No.2[06.2004 - 10.2006] XZU414..40T..CBU;XZU413,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ |
48214-3V561 |
US $157.25 |
||
|
48262
|
48262
48262-3V280 Leaf, Rear Helper Spring, No.2[06.2004 - 10.2006] XZU423,433..40T |
48262-3V280 |
US $138.32 |
||
|
48263
|
48263
48215-3V540 Leaf, Rear Helper Spring, No.3[06.2004 - 10.2006] XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ |
48215-3V540 |
US $109.20 |
||
| replacement | |||||
|
48263
|
48263
48215-3V541 Leaf, Rear Helper Spring, No.3[06.2004 - 10.2006] XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ |
48215-3V541 |
US $99.01 |
||
|
48263
|
48263
48215-3V560 Leaf, Rear Helper Spring, No.3[06.2004 - 10.2006] XZU414..40T..CBU;XZU413,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ |
48215-3V560 |
US $154.34 |
||
| replacement | |||||
|
48263
|
48263
48215-3V561 Leaf, Rear Helper Spring, No.3[06.2004 - 10.2006] XZU414..40T..CBU;XZU413,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ |
48215-3V561 |
US $154.34 |
||
|
48263
|
48263
48263-3V280 Leaf, Rear Helper Spring, No.3[06.2004 - 10.2006] XZU423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
48263-3V280 |
US $138.32 |
||
|
48264
|
48264
48207-3V280 Leaf, Rear Helper Spring, No.4[06.2004 - 10.2006] XZU423,433..40T |
48207-3V280 |
US $131.04 |
||
|
48265
|
48265
48265-3V280 Leaf, Rear Helper Spring, No.5[06.2004 - 10.2006] XZU423,433..40T |
48265-3V280 |
US $67.12 |
||
|
48266
|
48266
48266-3V280 Leaf, Rear Helper Spring, No.6[06.2004 - 10.2006] XZU423,433..40T |
48266-3V280 |
US $37.27 |
||
|
48284
|
48284
48284-3B750 Nut, Rear Spring Center Bolt[01.2005 - 10.2006] XZU404..40T..IV3;XZU40#,41#,42#,433..(T2,T3,T4,T5)..(DCRL,DSL,DSLL) |
48284-3B750 |
US $2.04 |
||
|
48284
|
48284
48284-3V150 Nut, Rear Spring Center Bolt[06.2004 - 10.2006] XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
48284-3V150 |
US $2.91 |
||
|
48284
|
48284
94110-51200 Nut, Rear Spring Center Bolt[06.2004 - 01.2005] XZU404..40T..IV3;BZU410,XZU40#,41#,42#,433..T2,T3,T4,T5 |
94110-51200 |
US $2.77 |
||
