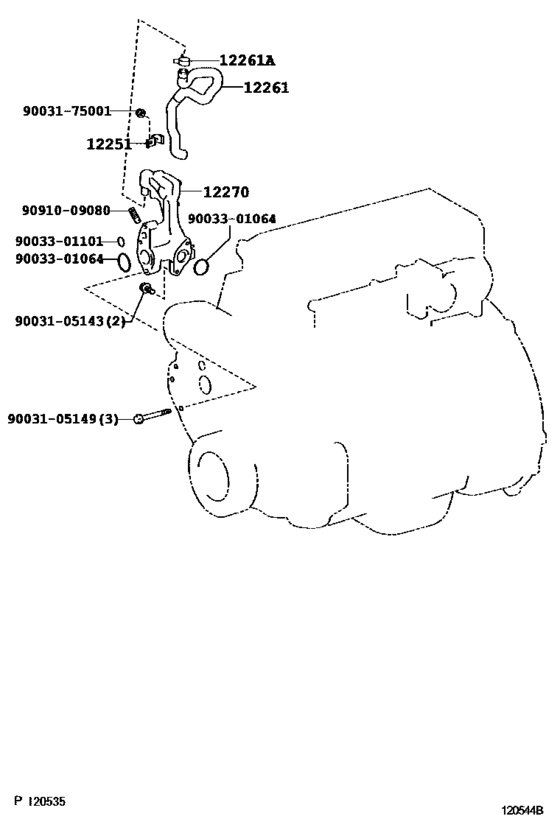

Ventilation Hose ([10.2006 - ] (0610- )N04C..XZU413,423,433) Diagram Toyota DYNA/ TOYOACE
- Year
- 2008 - 2008
- Sales region
- Europe
- Frame
- XZU433
- ENGINE
- N04C
- TRANSMISSION
- MTM
- DESTINATION
- SA
- From
- 02.2008
- To
- 12.2008
- Gear Shift Type
- 6F
- Loading Capacity
- 85T
- Driver's Position
- RHD
- Fuel Induction
- DCRTK
- Building Condition
- IV3
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12251
|
12251
12251-78040
Clamp, Ventilation Tube
[10.2006 - 06.2011] N04C..XZU413,423,433 |
12251-78040 |
— | ||
| replacement | |||||
|
12251
|
12251
12251-E0010
Clamp, Ventilation Tube
[10.2006 - 06.2011] N04C..XZU413,423,433 |
12251-E0010 |
— | ||
|
12261
|
12261
12261-78310
Hose, Ventilation
[10.2006 - 10.2008] N04C..XZU413,423,433 |
12261-78310 |
— | ||
| replacement | |||||
|
12261
|
12261
12261-E0242
Hose, Ventilation
[10.2006 - 10.2008] N04C..XZU413,423,433 |
12261-E0242 |
— | ||
|
12261
|
12261
12261-78311
Hose, Ventilation
[10.2008 - 06.2011] N04C..XZU413,423,433 |
12261-78311 |
— | ||
| replacement | |||||
|
12261
|
12261
12261-E0242
Hose, Ventilation
[10.2008 - 06.2011] N04C..XZU413,423,433 |
12261-E0242 |
— | ||
|
12261A
|
12261A
90034-67018 Clip Or Clamp(For Ventilation Hose)[10.2006 - 06.2011] N04C..XZU413,423,433 |
90034-67018 |
US $3.93 |
||
| replacement | |||||
|
12261A
|
12261A
SZ466-28001 Clip Or Clamp(For Ventilation Hose)[10.2006 - 06.2011] N04C..XZU413,423,433 |
SZ466-28001 |
US $6.81 |
||
|
12270
|
12270
12270-78041
Separator Assy, Oil
[10.2006 - 11.2010] N04C..XZU413,423,433 |
12270-78041 |
— | ||
| replacement | |||||
|
12270
|
12270
12270-E0023
Separator Assy, Oil
[10.2006 - 11.2010] N04C..XZU413,423,433 |
12270-E0023 |
— | ||
|
9003105143
|
9003105143
90031-05143 New Genuine Part |
90031-05143 |
US $1.79 |
||
|
9003105149
|
9003105149
90031-05149 New Genuine Part |
90031-05149 |
US $2.48 |
||
|
9003175001
|
9003175001
90031-75001 New Genuine Part |
90031-75001 |
US $1.79 |
||
|
9003301064
|
9003301064
90033-01064 Ring, O(For Timing Gear Cover) |
90033-01064 |
US $4.66 |
||
|
9003301101
|
9003301101
90033-01101
Ring, O
|
90033-01101 |
— | ||
| replacement | |||||
|
9003301101
|
9003301101
SZ301-19015 Ring, O(For Oil Cooler) |
SZ301-19015 |
US $4.12 |
||
|
9091009080
|
9091009080
90910-09080 Plug, Drain Cock |
90910-09080 |
US $17.56 |
||
